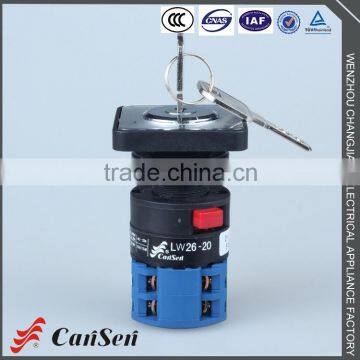

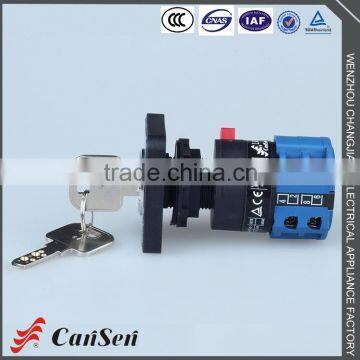

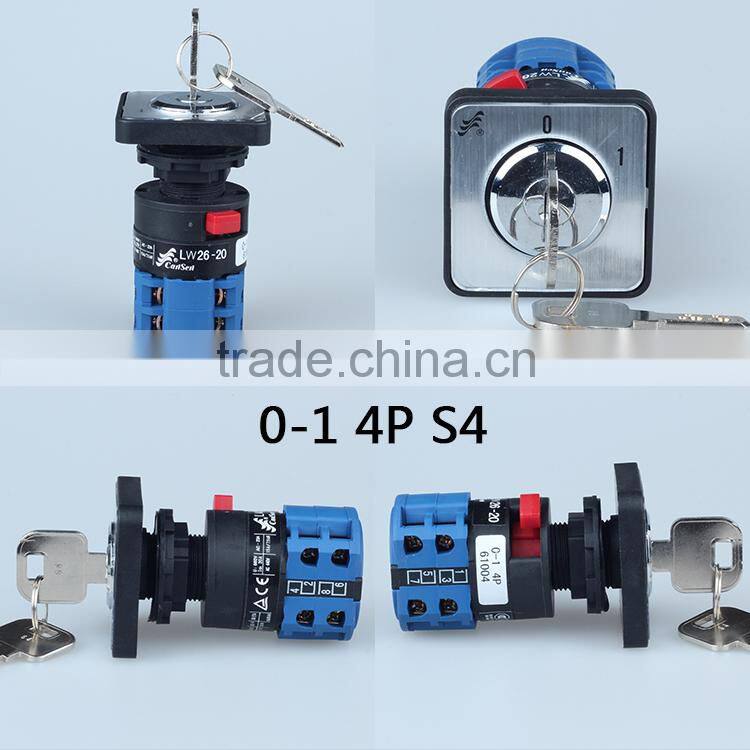

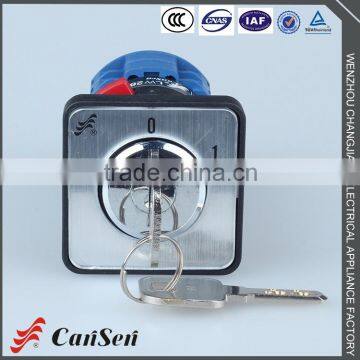

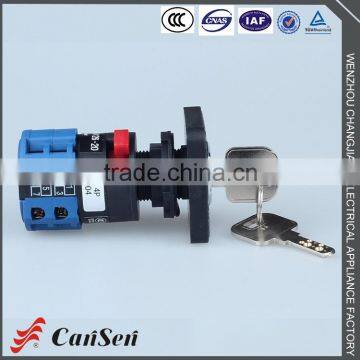

Help CenterLW26S-20 S4 Single Hole 4P Key-lock Changeover Switch With Plate
Related Products
-
LW26-20 0-1 4P S4 Single Hole Installation With Key-lock Isolator SwitchUS$ 3 - 15MOQ: 100 Pieces -
LW26-20 0-1 4P CE Certificate Single Hole Installation Without Plate Isolator SwitchUS$ 3 - 15MOQ: 100 Pieces
-
LW26-63 0-1 3P 63A Red Yellow Control Motor Welding Machine Off-on SwitchUS$ 9.53 - 9.53MOQ: 100 Pieces
-
LW26-10X 0-1 4P 10A CE Certificate Universal Side Insert Isolator SwitchUS$ 9.53 - 9.53MOQ: 100 Pieces
-
LW26-32 0-1 3P CE Certificate Cheap Best Quality 32a Isolator SwitchUS$ 8.34 - 10MOQ: 100 Pieces
| Specification | LW26-20 | |||
| LW26-20X | ||||
| LW26-20C | ||||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | / | / | 20 | 20 |
| AC-23A | / | / | 15 | 15 |
| AC-2 | / | / | 15 | 15 |
| AC-3 | / | / | 11 | 11 |
| AC-4 | / | / | 3.5 | 3.5 |
| AC-15 | / | / | 5 | 4 |
| DC-13 | 12 | 0.4 | 0.4 | / |
| Power | ||||
| AC-23A | / | / | 3.7/2.5 | 7.5/3.7 |
| AC-2 | / | / | 4 | 7.5 |
| AC-3 | / | / | 3/2.2 | 5.5/3 |
| AC-4 | / | / | 0.55/0.75 | 1.5/1.5 |
1.Products Introduction
LW26S Key-lock type switch is derivatives of LW26 rotary switch.Installed in equipments,which requires a key to lock the switch.It prevents the unauthorized personnel from mis-operation.
LW26S Key-lock type switch comply with the GB 14048.3 and IEC 60947-3.
2.Working Conditions
a.Ambient temperature DO NOT exceed 40℃, and the average temperature,measured over a period of 24 hours,
DO NOT exceed 35℃.
b.Ambient temperature should not be below -25℃.
c.Should not be isstalled above 2000m above sea level.
d.The humidity should not exceed 50% when the ambient temperature is 40℃ and higher humidity is allowed for lower temperature.
3.Installation Conditions
a.A clean environment is required
b.Please follow our manual
4.Order Procedure

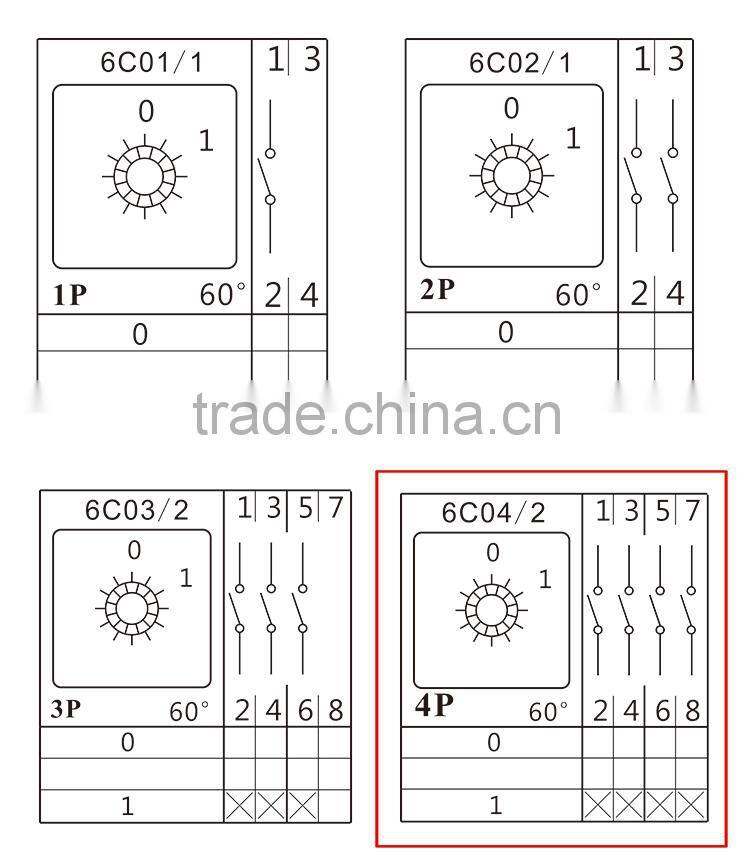

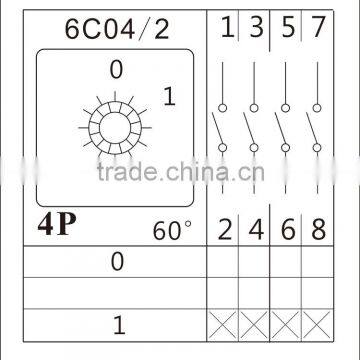

When placing an order please specify the contact diagram of the product you require.The LW26 series rotary switch have the similar contact diagram as the other rotary switches like LW2D,LW5D,LW6D,LW8D,LW12,LW15,HZ5D and HZ25D.Our factory have published<The General Contact Diagram for Cansen Rotary Switches >Which will help you to specify the contact diagram.
In addition,please specify the current rating, mounting plate,handle type,color and quantityas well.
For instance:
When ordering 20A,rotary angle 60°, character code C,contact diagram code 5391, M1 plate, black R handle 20 unites. The order can be: LW26-20.6C5391/2A11R(M1R)20units.
Due to the update of the technologies, we reserve the righting of updating the catalogue without further notices.
1. What kind of certificate do you have?
For company: ISO9001:2000, CCC, TUV
LW26 series: TUV, CE, UL, RoHS, CCC
LW30 series: CE, CB, RoHS, CCC
LW31 series: CE, RoHS, CCC
LW40 series: CCC
KDHc series: CCC
2. Where do you sell the goods to?
Germany, USA, UK, Korea, Australia, all major european and american countries.
3. What's the annual production?
5,000,000 pcs of switches in one year, is the biggest manufacturer and seller in China.
4. How is the factory?
Cansen Factory have more than 30 years manufacture expreience, and is more than 20,000 square meter
with 300 workers.
