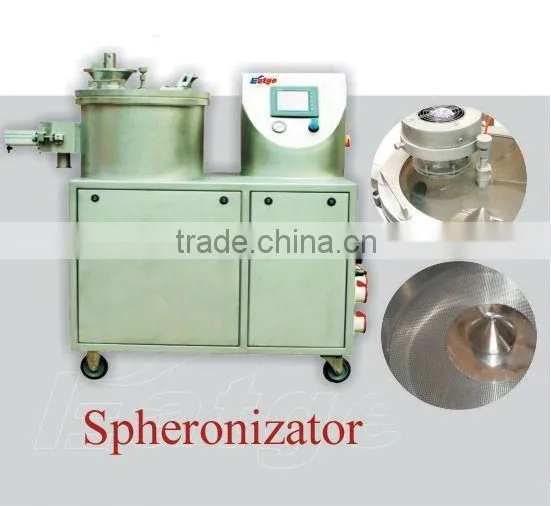

Help CenterSpheronizer
Related Products
-
Genuine CCEC Engine K50 Spare Parts, V Ribbed Belt 3003341NegotiableMOQ: 1 Piece -
Centrifugal Granulating Coating MachineNegotiableMOQ: 1 Set
-
TS SERIES FBD TIPPERUS$ 8,000 - 16,000MOQ: 1 Set
-
Vacumm ConveyorUS$ 8,000 - 16,000MOQ: 1 Set
-
Genuine CCEC Engine K50 V Ribbed Belt 3003343NegotiableMOQ: 1 Piece
Specifications
Able to choose orthogonal turntable,rasial turntable,or turnable with anti-stick coating and anti-wear coating.The cutting-off teeth on the centrifugal turntable turning at a high speed cuts the input cylindrical
strip material into short cylindrical granulates of same length.
Due to combined action of centrifugal force of turntable,friction force between granulate and teeth plate ,canister wall and granulate, and air push force between turnable and material canister
wall,all granulates are in three-dimensional helical rolling movement ,forming an even rubbing action to manufacture granulates into spheroids.
This machine is composed of charge chute, material groove, turntable, discharge device, transmission device, ventilating and dehumidifying device(optional), machine cabinet, control system, pneumatic system.
Short production time, high finished ratio.
Spheroids of good roundness and smooth surface, even internal distribution of compositions in particles.
Several different display mode of parameters settting, accruate and convenient adjustment. Prefect interlock protecion design, avoidiang injury on operators from moving parts.
Additionally install cooling and heating canister on material groove in accordance with material characteristic.
Able to choose orthogonal turntable,rasial turntable,or turnable with anti-stick coating and anti-wear coating.
| item | Unit | S-250 | S-450 | S-700 | S-1000 |
| Output | Kg/batch | <=0.5 | <=2.0 | <=8.0 | <=30 |
| Time | min/batch | 0.5-5.0 | 0.5-5.0 | 0.5-5.0 | 0.5-5.0 |
| Voltage/Frequency | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 |
| Power | KW | 0.75 | 4.0 | 7.5 | 11.0 |
| Rotary Speed | r/min | 50-2300 | 50-1200 | 50-1200 | 100-600 |
| Compressed air comsumption | cubic meter/minn | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Compressed air Pressure | Mpa | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 |
| qualification rate | % | >90 | >90 | >90 | >90 |
| Noise | db | <45 | <45 | <45 | <50 |
| Dimension | mm | 430*465*660 | 1280*650*1230 | 1500*900*1300 | 1800*1200*1450 |
| Net Weight | Kg | 84 | 350 | 350 | 980 |
