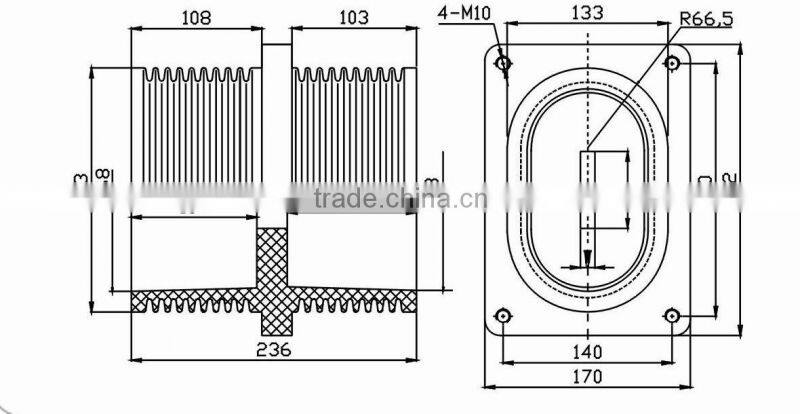

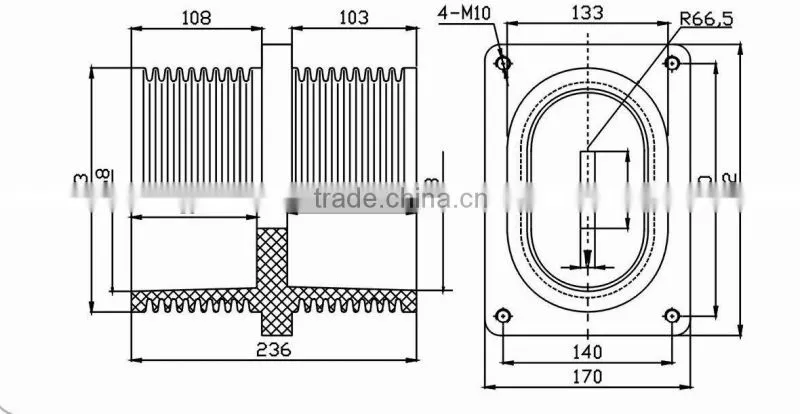

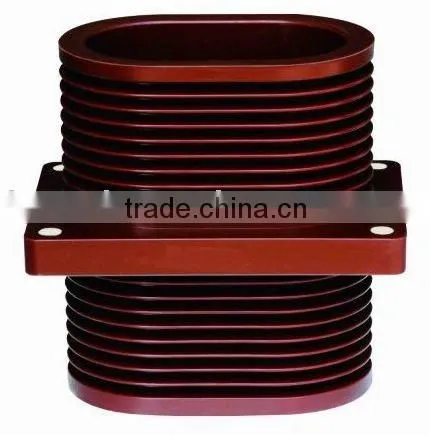

MEDIUM VOLTAGE BUS-DUCT INSULATORS
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Shuguang Electric
Model Number:
TGZ13-10
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12kV Epoxy Resin BushingUS$ 12 - 15MOQ: 100 Pieces -
40.5kV Screen Bushings for KYN61-40.5 SwitchgearNegotiableMOQ: 1 Piece
-
12kV Epoxy Resin Cast BushingUS$ 8 - 15MOQ: 10 Pieces
-
Screen Busbar Bushing for 35kV EATON SwitchgearUS$ 90 - 100MOQ: 3 Pieces
-
Screen Bushing With 2,500A Rated Current, Suitable for 35kV SwitchgearNegotiableMOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
Shuguang Electric
Model Number
TGZ13-10
Type
Insulator
Material
Other, Epoxy resin
Application
High Voltage
Rated Voltage
12kV
Tensile Strength
25kN
Specifications
1.MEDIUM VOLTAGE BUS-DUCT INSULATORS for indoor installation.2.They are made of high-quality epoxy cast resin compound
Normal Environment Condition:
- The altitude does not exceed 1000m.
- The ambient temperature is between -30 Degrees Celsius to +40 Degrees Celsius, The daily mean temperature is no greater than 30 Degrees Celsius.
- The daily mean relative temperature is no greater than 95%. The monthly mean relative temperature is no greater than 90%.
- The installation area should be without the dangerous mediums which after the conductive properties and the insulating performance the products.
- There should be no frequent vibration and serious jolt.
Notice when Ordering:
- Pls provide the name, type and drawing number of the products when ordering.
- If the customers have the demands of changing the overall dimension and technical parameter, pls make a special remark when ordering. We can design special type according to the demands, and we can provide the service of development and design.
Special Environment condition:
- The altitude of high prototype products is more than 3500m.
- The outdoor products can ensure the medium of steam, gas, chemical corrosive deposit, salt spray, dust, dirt, and so on.
- The environment temperature is between -35°C to +55°C. The daily mean temperature is greater than 40°C.
