Screen Bushing With 2,500A Rated Current, Suitable for 35kV Switchgear
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Shuguang Electric
Model Number:
TGZ1-35-B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24kV Indoor Epoxy Resin Insulator BushingNegotiableMOQ: 3 Pieces -
Cast Epoxy Resin 40.5kV (35kV) Shielding Wall Through Busbar Bushing (TGZ2-35-B/TGZ2-B-40.5)US$ 90 - 100MOQ: 3 Pieces
-
24kV High Voltage Cast Switchgear BushingUS$ 10 - 15MOQ: 3 Pieces
-
Wall Bushing InsulatorNegotiableMOQ: 3 Pieces
-
35kV Epoxy Resin Wall Bushing Suitable for SwitchgearNegotiableMOQ: 3 Pieces
Place of Origin
Zhejiang, China
Brand Name
Shuguang Electric
Model Number
TGZ1-35-B
Type
Insulation Sleeving
Material
Other, Epoxy Resin
Application
Other, High Voltage, Switchgear
Rated Voltage
40.5kV
Tensile Strength
/
Specifications
Power frequency withstand voltage: 95kV/1 minuteLighting impulse voltage: 185kV
Creepage distance: >840mm
Type Test Report

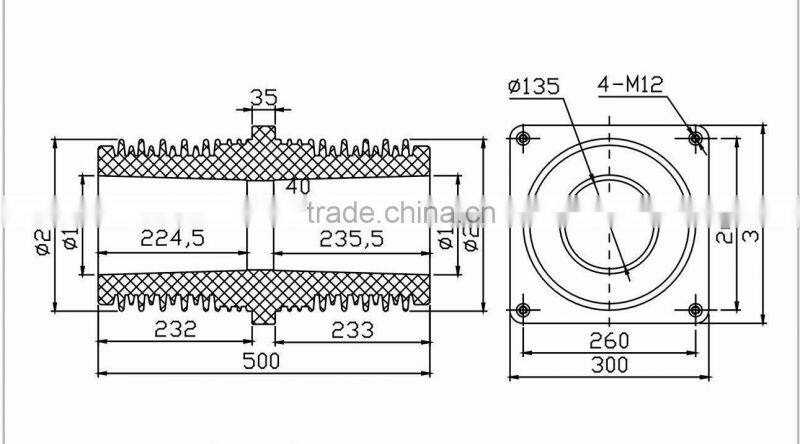

40.5kV Bushings Model: TGZ1-35-B Size(L*W):110*50,110*20
1.The use of epoxy resin automatic pressure gel craft that APG technology manufacturing, product appearance, mechanical, electrical performance.
2.Selection of high-toughness resin production, excellent mechanical properties. And selection of low-formula system reactivity, slow curing, low-stress products to maximize the mechanical properties of products.
3.Silica add activity to further improve the mechanical properties of epoxy resin, but also to ensure that the insulation work in the humid environment of long-term to maintain a good electrical insulation properties.
4.Add organic pigment, the product color bright, does not reduce the insulation performance.
