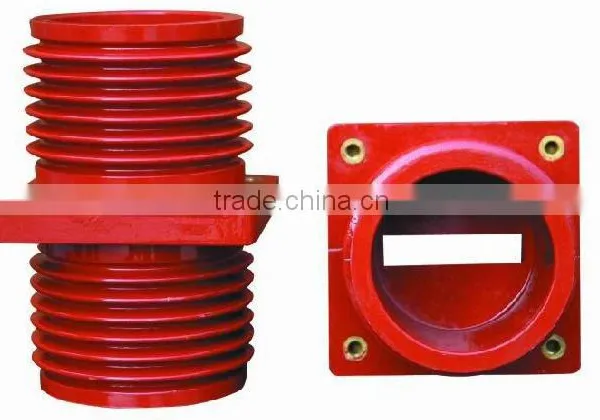

12kV Epoxy Resin Wall Bushing Insulator
Negotiable
MOQ: 3 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Shuguang Electric
Model Number:
TGZ1-10
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MEDIUM VOLTAGE BUS-DUCT INSULATORSNegotiableMOQ: 1000 Pieces -
12kV Epoxy Resin BushingUS$ 12 - 15MOQ: 100 Pieces
-
40.5kV Screen Bushings for KYN61-40.5 SwitchgearNegotiableMOQ: 1 Piece
-
12kV Epoxy Resin Cast BushingUS$ 8 - 15MOQ: 10 Pieces
-
Screen Busbar Bushing for 35kV EATON SwitchgearUS$ 90 - 100MOQ: 3 Pieces
Place of Origin
Zhejiang, China
Brand Name
Shuguang Electric
Model Number
TGZ1-10
Type
Insulation Sleeving
Material
Other, Epoxy Resin
Application
High Voltage
Rated Voltage
12kV
Tensile Strength
20kN
Specifications
1. Insul. material:Epoxy resin2. 12kV, insul. level:24/65/125kV
3. ISO 9001:2008 and IEC 60137Ed.6.0
Technical data for TGZ1-10 bushings:
1. Rated voltage : 12kV;
2. Rated Insulation Level: 12/42/75kV;
3. Creepage distance: not less than 240mm;
Name:10kV Bushing Model:TGZ1-10 Specification:230*125*125mm

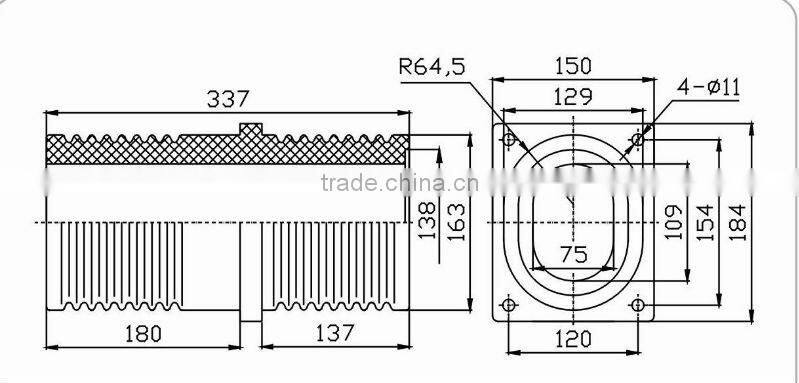

Name:10kV Bushing Model:TGZ4-10 Specification: 337*129*154mm
Name:10kV Bushing Model:TGZ6-10 Specification:230*140*200mm
Name:10kV Bushing Model:TGZ7-10 Specification:230*110*180mm
| Item | L*W | Item | L*W |
| A | 50X5 | D | 90X18 |
| B | 63X15 | E | 110X18 |
| C | 85X15 | F | 110X50 |
