Specifications

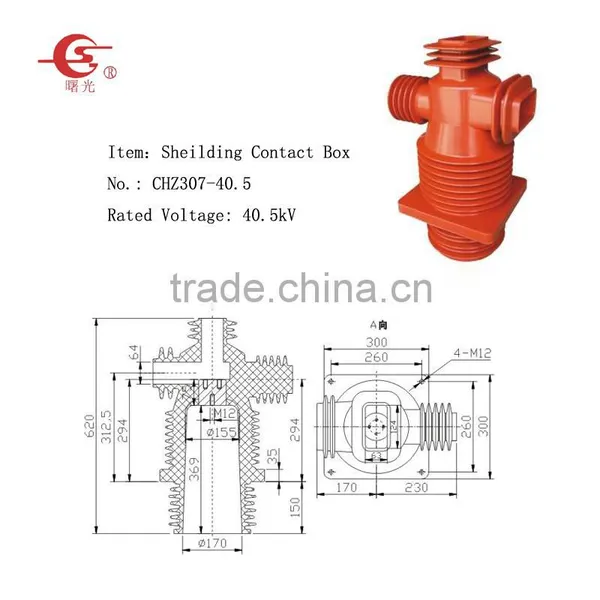

40.5kV CHZ307-40.5 Shielding Epoxy Resin Insulator, Better Performance in Balance of Electric Field and Mechanical PropertiesCHZ307-40.5 Sheilding Contact Bushing Insulator, better performance in balance of electric field;
It has its own design patent right in China, approved by the State Grid;
Rated Voltage: 40.5kV (GB) /36kV (IEC);
Power Frequency Withstand Voltage: 95kV/1min;
Lightening Impulse Withstand Voltage: 185kV;
Partial Discharge: less than 5 PC;
Patent No.: ZL200720191374.1;
Strong Points:
Shielding ring-net installed to better balance the electric field and enhance mechanical performance;
Inner umbrella edges design to increase creepage distance (for model no. CHZ304G-40.5, CHZ305-40.5);
Big inner diameter to satisfy fix contact installation of high current rate, also provides good heat dissipation;
Strengthened model for high attitude (for model no. CHZ309-40.5);
Material: Huntsman Brand Indoor Epoxy Resin or Equivalents;
Application: It is where the fix contact of VCB panel is installed, also provide enough insulation protection;
Technology: APG Process;
Company Qualification: ISO9001 & ISO14001;
Good Quality & Competitive Price;
Small Order Accepted;
Prompt Delivery & Green Product;
More information about the production process:
Selective epoxy resin, hardner, and silicone powder fully mixed as casting raw material;
Strictly add active silica powder to epoxy resin to strengthen the insulator's mechanical performance;
Strict and formulated production & process to ensure maximum of electric performance;
Company Information:
Established Date: the Year of 1991;
Total Investment: USD 26 Million;
Land Area: 50,000 square meters;
Annual Production Capability: USD 80 Million;
Strict Quality Control & Good After Sale Service;
