Help CenterIsolation Contact Spout Bushings
Related Products
Specifications
1.Epoxy resin cast insulators2.Epoxy resin cast bushings

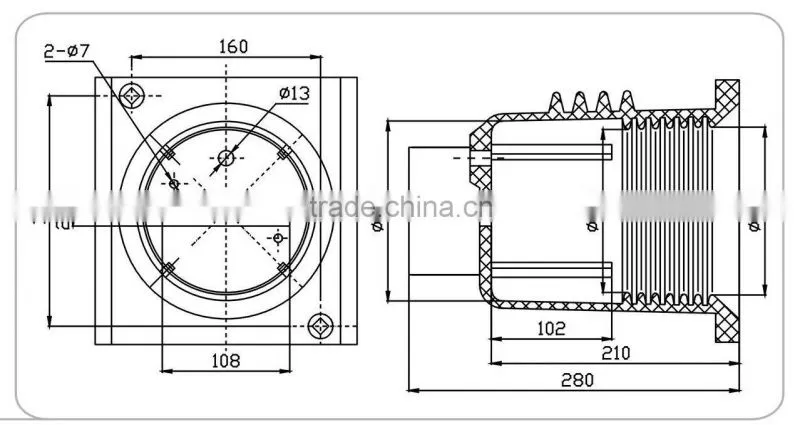

3.Isolation Contact Spout Bushings
We provide our clients with a voluminous range of Epoxy Resin Cast Spout Bushing as per the specifications and requirements of the customers. This entire range is at par with the international quality standards since it is manufactured using premium quality raw material. Offered at cost- effective prices, this range is widely preferred by the clients due to its extensive application in isolation contact termination in medium voltage.
Technique Data:
Power-frequency withstand voltage:65kV/1min
Partial discharge:26.4kV<10pC
21kV≤2pC
Lightning impluse withstand voltage:125kV
Glass transition temperature:≥105°c
Creepage distance:>480mm
Notice When Ordering:
1.Please provide the name, drawing, rated voltage and rated current when ordering.
2.If the customers have the demands of changing the overall dimension and technical parameter, please make a special remark when ordering. We can design special type according to the demands, and we can provide the service of development and design.
