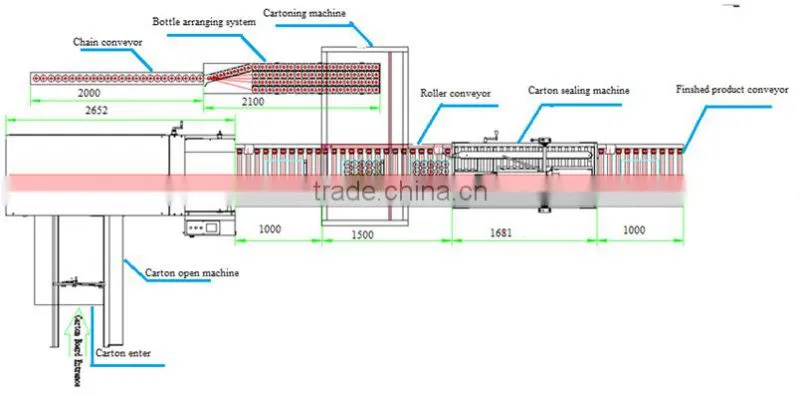

MIC- Cartooning machine /carton packing machine /boxing line

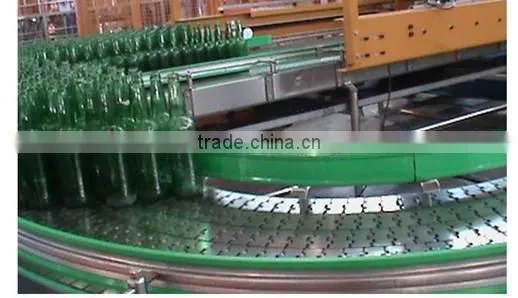

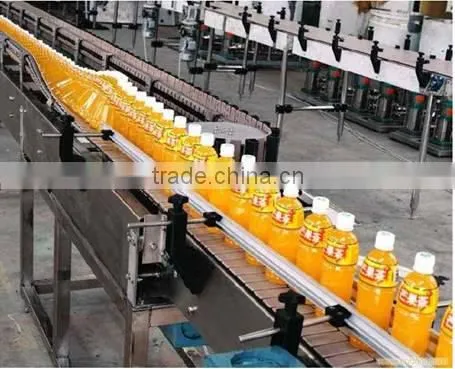

1. Top Chain conveyor
Technical parameters of plastic Multiflex Chain
Material |
POM (shaft is stainless steel) |
Weight |
0.99 lbs/ft(1.47 kg/m) |
Width |
7-1/2 inch(190.5mm) |
Back Radium |
3 inch(75mm) |
Max Speed |
90m/min—Lubrication ,60m/min--Desccation |
Application |
Mainly application in the bottles and metal cans transportation food beverage industry. |

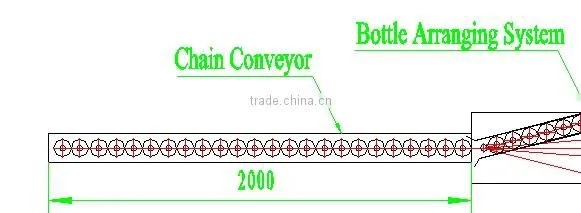

2.Top chain conveyor muti line for bottle arrange in three line

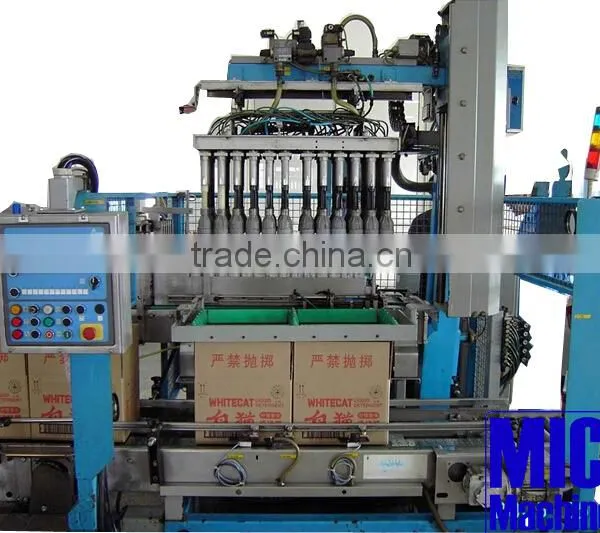

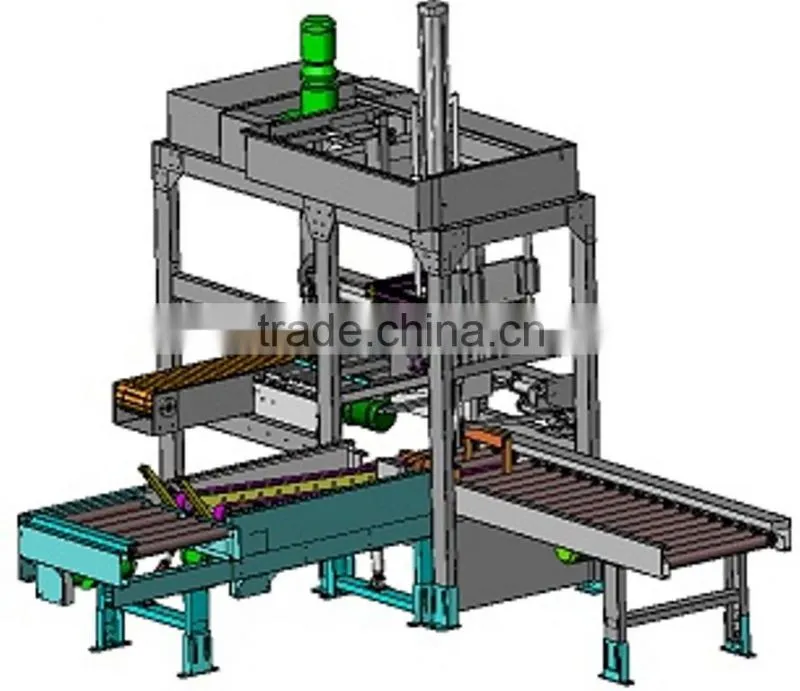

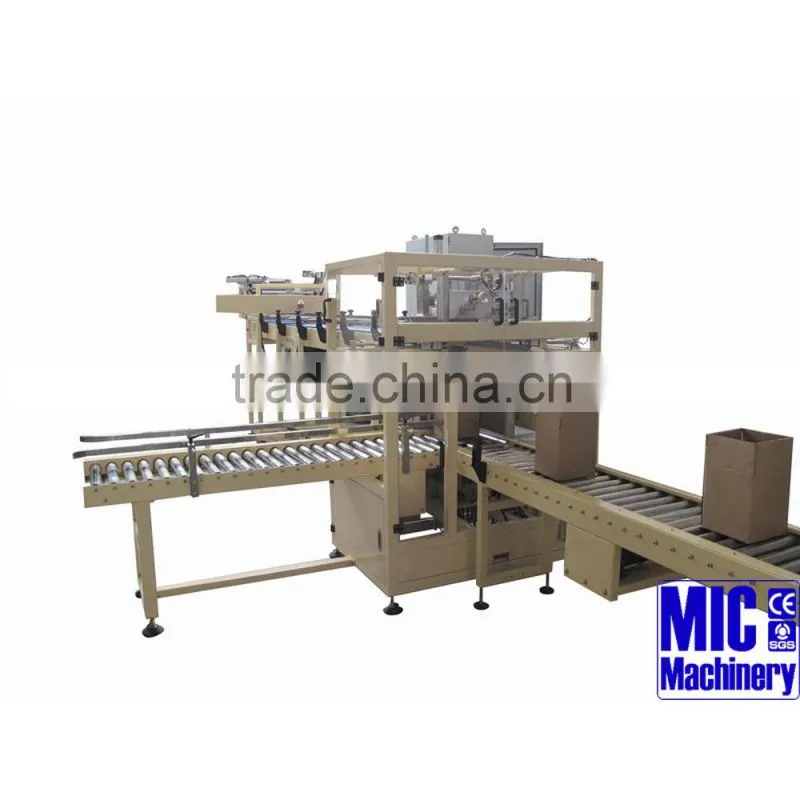

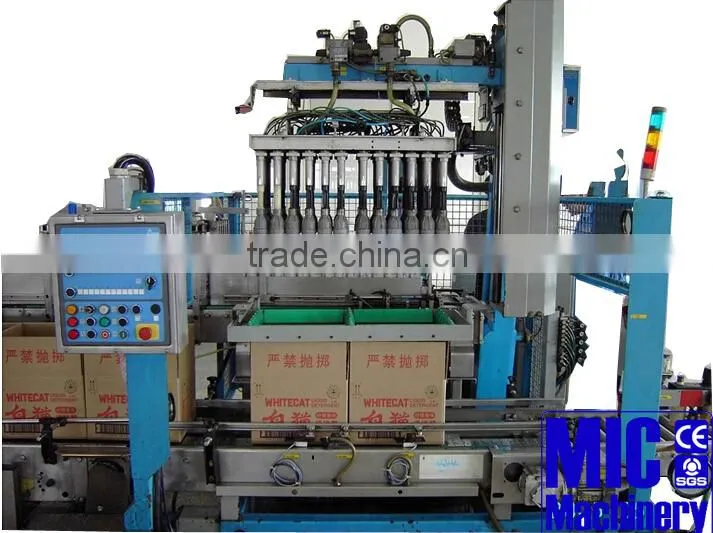

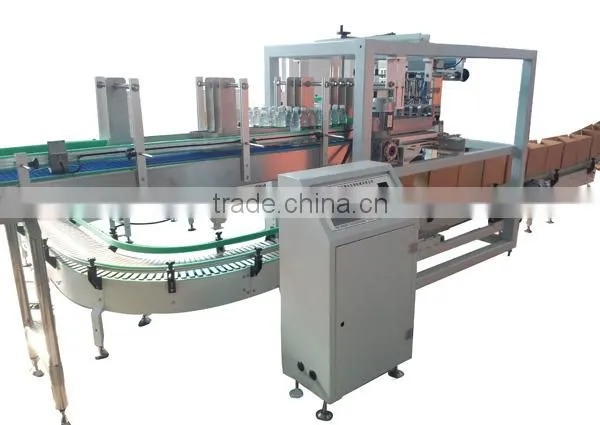

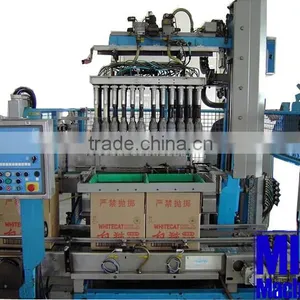

3.Bottle cartooning machine
Specifications
bottle filling machine
Automatic cartooning machine is for packing bottle in carton, it clamp the bottle and fill bottles into-
Brief instruction
The automatic carton packaging machine clamp the bottle by bottle holder (with rubber to avoid damaging the bottle), and then put the bottles into open carton. When the bottle holder lifts, the carton with bottles will be sent to carton sealing machine. The machine is controlled by PLC and Touch Screen. The machine will alarm and stop when it is lack of bottles, This packing line is very easy to operate, manage, and reduce the labors and work intensity, it is necessary for automatic production line.
Character
The machine will arrange the products according to the carton filling requirement.
It has novelty design and compact construction.
It has wide application; it is suit for different products, such as plastic flat bottles, round bottles, irregular bottles, and different kinds of glass bottle, columned and oval-shaped bottle, square cans and paper cans.
It is easy to move and used in the carton packing production line
It is controlled by the computer and easy to operation and its performance is stable
4.Roller feeding conveyor to transfer the bottles to sealing machine

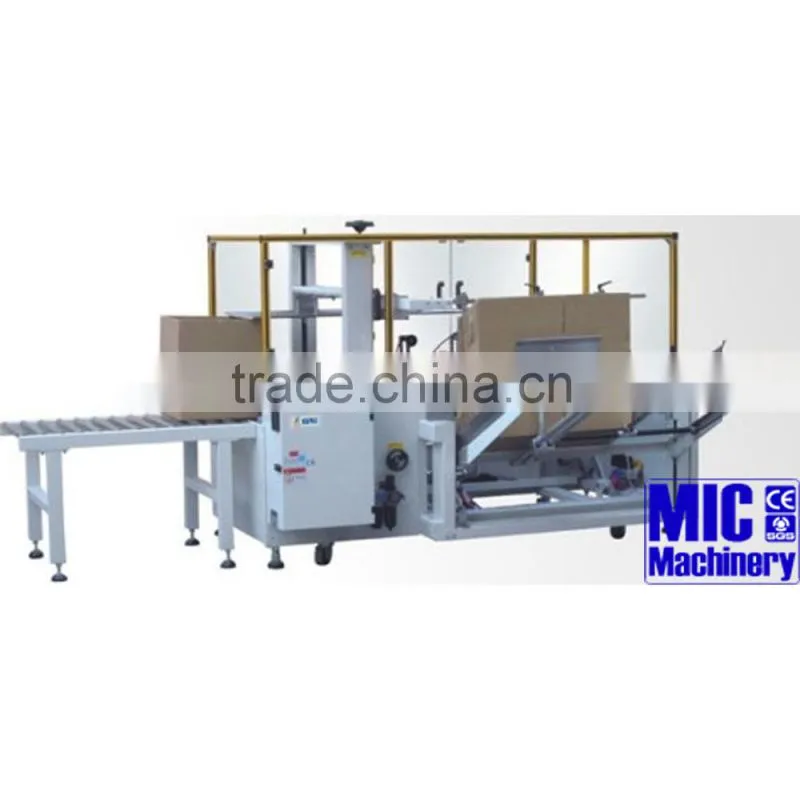

5.Opening Case machine
Technical parameters
Speed |
12 case/minute |
Size of the case |
L:250-450mm W:150-400mm H:100-400mm |
Power |
1ph/220v/50hz, 200w; |
Exhaustion gas |
450NL/min |
Size of the machine |
L2000×W1900×H1450mm |
Weight of the machine |
400kg |

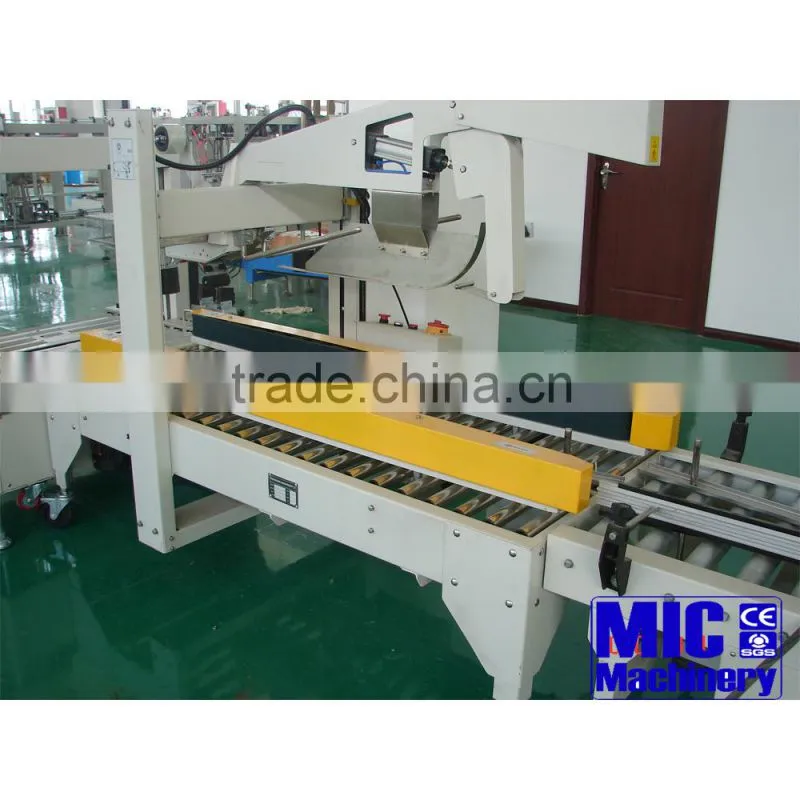

6.Folded cap sealing machine
Technical parameters
Conveying speed |
0-20m/min |
The maximum size of the packaging |
L600×W500×H500mm |
The minimum size of the packaging |
L200×W150×H500mm |
Voltage |
220v/380v 50HZ/60HZ |
Packed by export wooden case
Terms & Conditions:
Payment: T/T 30% in advance, balance paid before shipment, video inspection or person inspection before shipment
Delivery: 25-30 days after receiving the deposit.
Packing: wooden case
Validity: 1year
Sales After Service:
Guaranty: One Year
One set of consumable accessories will be provided with the machine.
Before delivery, we will adjust the machine to fit for your product.
Any question, you can mail/call us at any time. And our most experienced engineers is assigned to give consulting service, and always available for dispatching abroad.
All spare parts are always available for delivery.
Manual is in English.
Installation/ Training:
The installation can be provided by the MIC Company. It must be after shipment and machine has arrived and factory must be ready equipped with all necessary requirements before booking installation with MIC Company. Our engineers will come to the site for the complete and final installation. During the installation session, a one day training course will be provided to the customer to the customer for operation and maintenance procedure. The purchase at US$70/person/day plus all local transportation, accommodation, air tickets (round trip). Day charges include travel day.
Thank you for attention.
Our factory is located in Changzhou near Tai Lake. 500 meters away from Wuxi, the location is beautiful and transportation convenient. We are specialized in designing and manufacturing of art equipments for pharmaceutical medicine, food, biology, chemical and petroleum industries.
Focused on technology and quality, we always dedicate ourselves to providing reliable high efficient products to our clients. Machines such as emulsification machines, paste machines, mixers, capsule filling machines, pressing machines, the grinder, the sealing machines etc., all have an attractive appearance and innovative technology.
