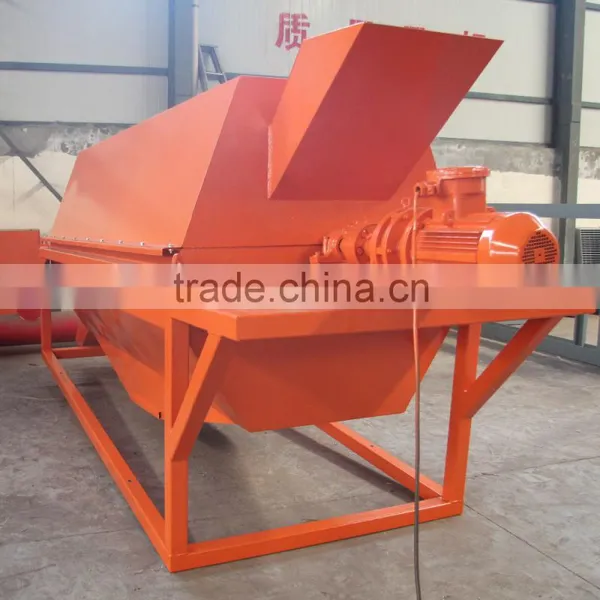

Brightway Customized Rotating Trommel Screen

Rotating Trommel Screen  is also called Riddle Drum, Drum Screen, Drum Shaker. Brightway  Rotating Trommel Screen
is a new generation of screening equipment, mainly composed of Motor,Speed Reducer, roller device, frame, cover gasket etc,with external sealed by sealing isolation cover to prevent environmental pollution.

According to client's requirements,Brightway can design and manufacture different type  Rotating Trommel Screen for different applications.

Rotating Trommel Screen Operating Principle

The roller device slantly installed on the frame is connected to the motor by coupling via reduction drive, the motor drives the roller device to rotate around the axis. When material enters the roller device, it is rolled over by screening drum which is drived by variable speed reduction system. The material is divided by screening drum from top to bottom. The fine material is output from the bottom of front of screening drum, while coarse material is output from the end of bottom of screening drum. Screening drum rotate and roll to pop out the insert material to prevent to plug the mesh.

Brightway   Rotating Trommel Screen  Features

1. Mesh is not easy to plug.

2. Smooth operation, low noise, high work efficiency.
3. Simple structure, convenient maintenance.
4. Screening drum can be closed to collect duct easily.
5. High reliability and high cost-effectiveness
6. Made for s special purpose, screening thoroughly with long service life
