Brightway Oil Drilling Hydrocyclone Desilter Features and Benifits
1. Design: Adopt ANSYS limited element analysis to optimize the structure.
2. Material: Use Q235B from BAOSTEEL for body, and High strength compound rubber material used to reduce shock.
3. Vibration motor: Italy OLI /American Martin, or according to customer requirement.
4. Electrical control system: Explosion-proof electrical control.
5. Treatment: Grinding, Abrasive blasting, Epoxy zinc rich primer, Intermediate painting with epoxy micaceous iron, and Finish painting with polyurethane
6. Cone: Made of wearing-resisting polyurethane and in the structure similar to Derrick design.
7. Inlet and outlet: Fast joint connection
Brightway Oil Drilling Hydrocyclone Desilter Parameters
Model |
BWCNQ100-8N |
BWCNQ100-10N |
BWCNQ100-12N |
BWZJ75-12N |
Screen area |
1.0m²(600x1600mm) |
|||
Capacity |
≤160m³/h |
≤200m³/h |
≤225m³/h |
≤225m³/h |
Cone Size |
4"(cyclone each 12~15m3/h) |
|||
Cone number |
2~12 swirlers, ccording to the capacity of the selection the swirler |
|||
Matching Pump |
SB6×5-12J(37Kw) |
SB6×5-11J (30Kw) |
SB8×6-13J (55Kw) |
SB8×6-13J(55Kw) |
Inlet Size |
75mm-150mm |
|||
Outlet Size |
125mm-200mm |
|||
Separation Size |
15-47μm |
|||

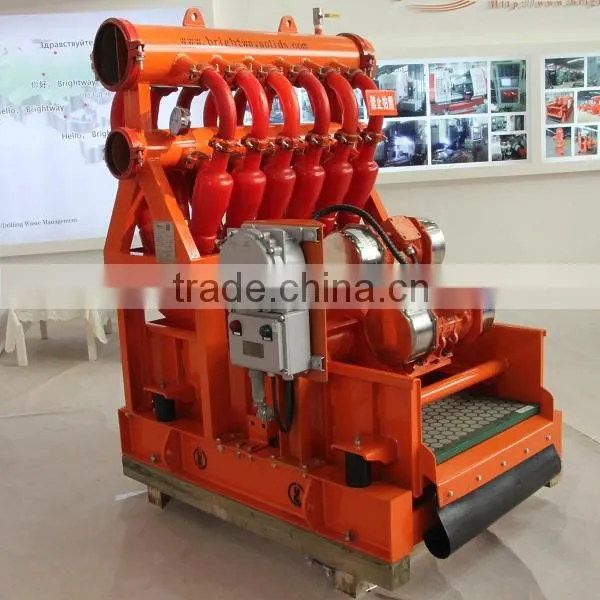

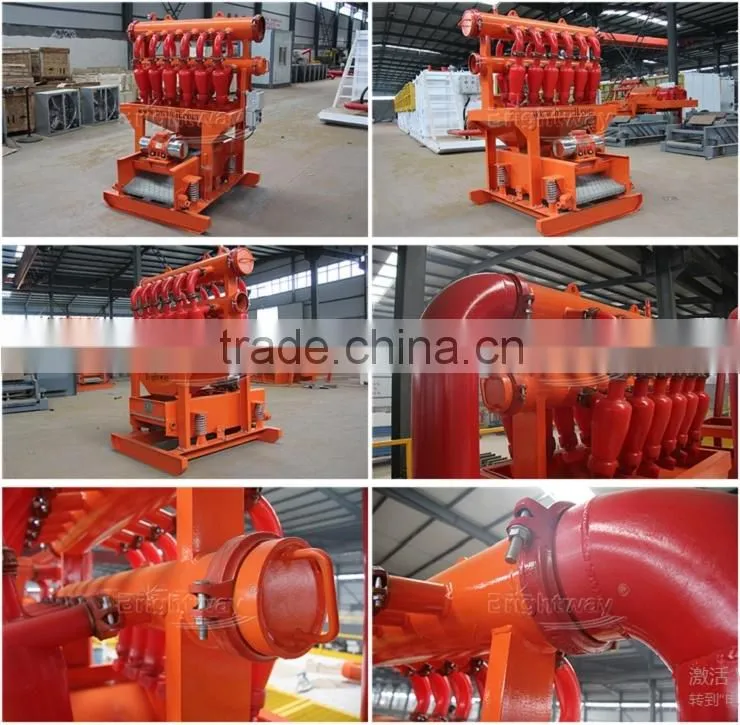

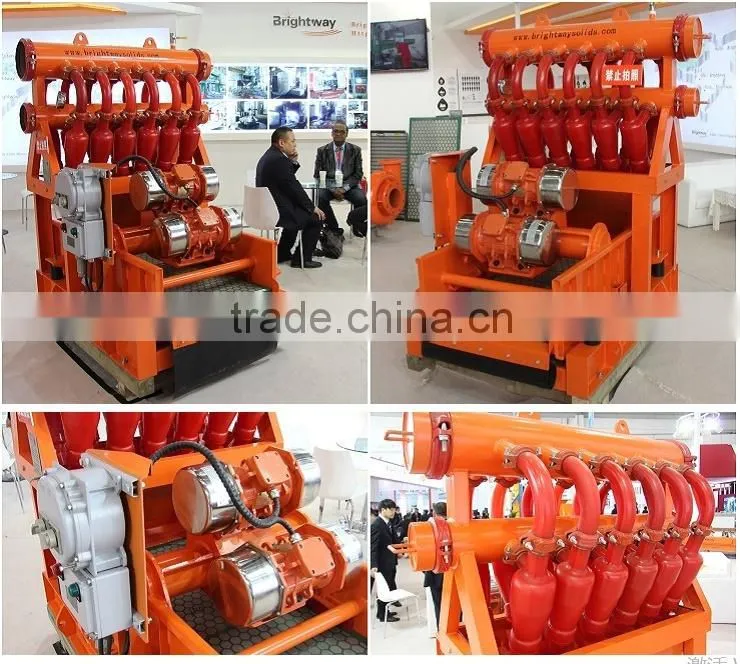

Brightway Oil Drilling Hydrocyclone Desilter Display
