Brightway Drilling Fluid Desilter Features and Benifits
1. Design: Adopt ANSYS limited element analysis to optimize the structure.
2. Material: Use Q235B from BAOSTEEL for body, and High strength compound rubber material used to reduce shock.
3. Vibration motor: Italy OLI /American Martin, or according to customer requirement.
4. Electrical control system: Explosion-proof electrical control.
5. Treatment: Grinding, Abrasive blasting, Epoxy zinc rich primer, Intermediate painting with epoxy micaceous iron, and Finish painting with polyurethane
6. Cone: Made of wearing-resisting polyurethane and in the structure similar to Derrick design.
7. Inlet and outlet: Fast joint connection
Brightway Drilling Fluid Desilter Parameters
Model | BWCNQ100-8N | BWCNQ100-10N | BWCNQ100-12N | BWZJ75-12N |
Screen area | 1.0m²(600x1600mm) | |||
Capacity | ≤160m³/h | ≤200m³/h | ≤225m³/h | ≤225m³/h |
Cone Size | 4"(cyclone each 12~15m3/h) | |||
Cone number | 2~12 swirlers, ccording to the capacity of the selection the swirler | |||
Matching Pump | SB6×5-12J(37Kw) | SB6×5-11J (30Kw) | SB8×6-13J (55Kw) | SB8×6-13J(55Kw) |
Inlet Size | 75mm-150mm | |||
Outlet Size | 125mm-200mm | |||
Separation Size | 15-47μm | |||

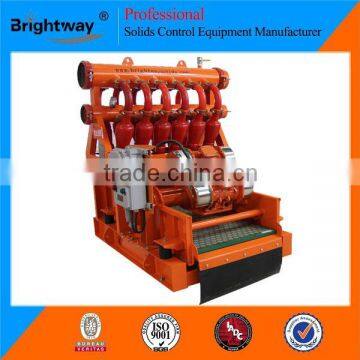

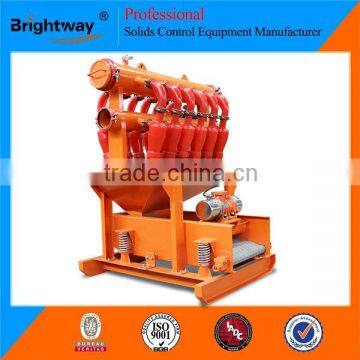

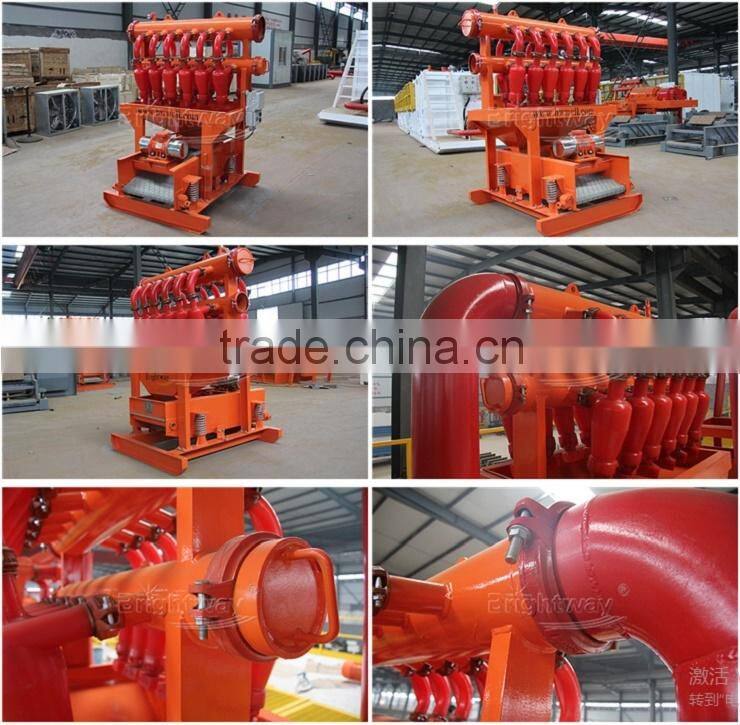

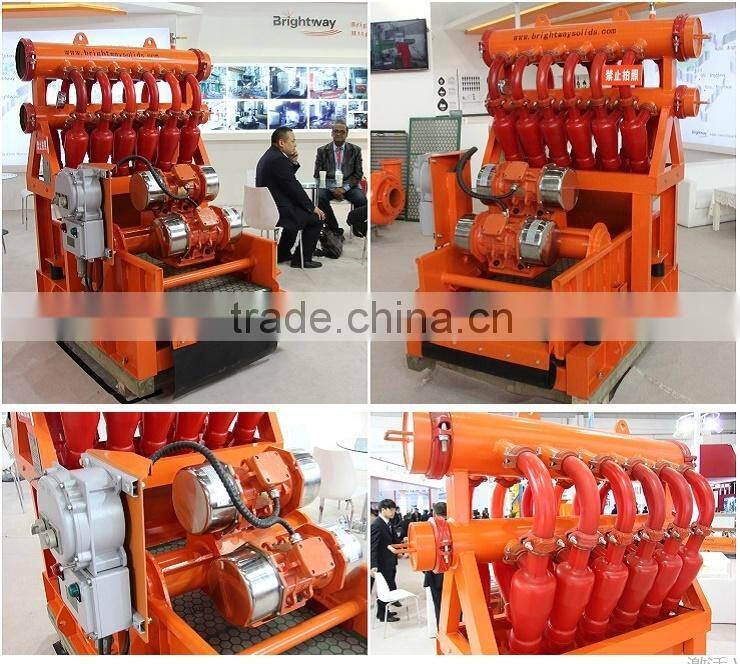

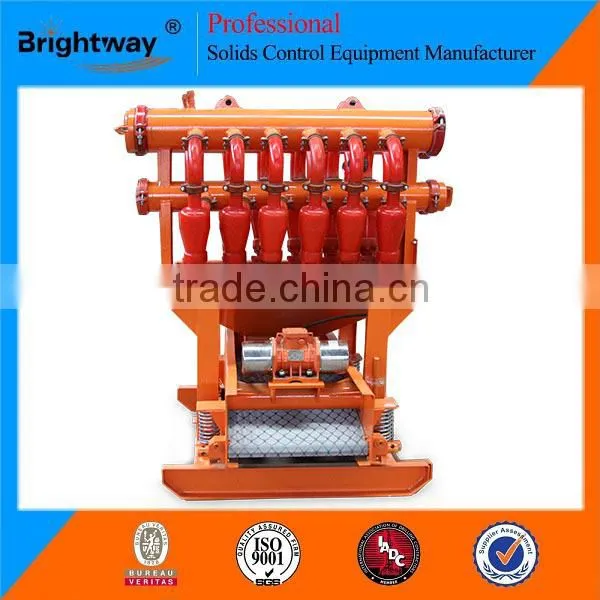

Brightway Drilling Fluid Desilter Display
Brightway Solids Control Co., Ltd
Address: No.118 Fuyu Road,Yuhua Industrial Zone,Yanta District,Xi’an City,China
Telephone: +86-29-89300061 +86-29-89305769
Fax: +86-29-89305769
