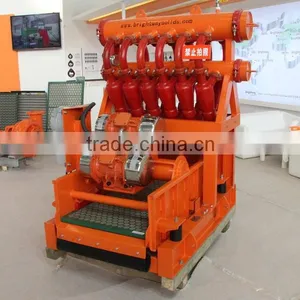

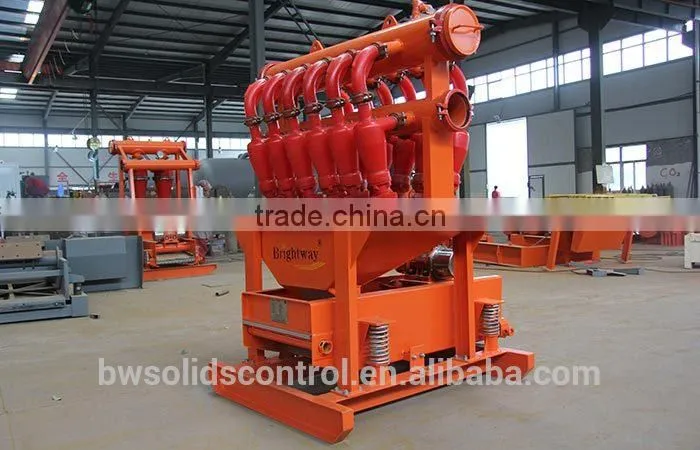

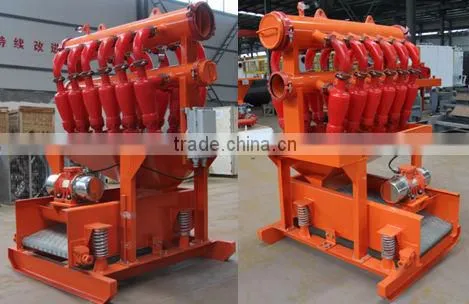

oilfield pumping unit oil field drilling desilter oilfield casing prices
- 100 Set / Sets per Month
- TianJin
- T/T L/C D/P D/A Credit Card PayPal
-
oilfield casing prices solids control desilter machine in oil field used oilfield drill bits
-
used oilfield drill bits oil drilling desilting machine oilfield parts
-
used oilfield drill bits oilfield desilter for oil filed parts oilfield bits scrap
-
drill bit for oil field petroleum drilling mud desilter
-
Oil drill Elevator Desilter Hydrocyclone
-
Oil Drilling Hydrocyclone Desilter
Product Details
| Place of Origin: | Shanxi, China | Brand Name: | Brightway | Model Number: | BWCNQ100-8N |
| Certification: | Other, AIP |
Packaging Details
as customer required
Product Description
Brightway Desilter Features and Benifits 1. Design: Adopt ANSYS limited element analysis to optimize the structure.2. Material: Use Q235B from BAOSTEEL for body, and High strength compound rubber material used to reduce shock.3. Vibration motor: Italy OLI /American Martin, or according to customer requirement.
4. Electrical control system: Explosion-proof electrical control.5. Treatment: Grinding, Abrasive blasting, Epoxy zinc rich primer, Intermediate painting with epoxy micaceous iron, and Finish painting with polyurethane

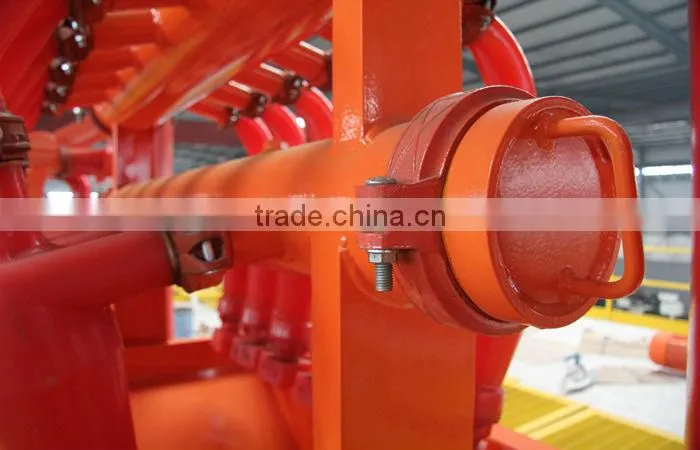

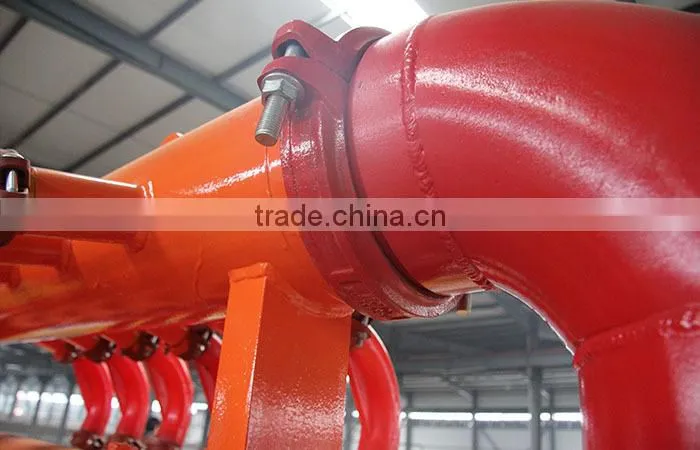

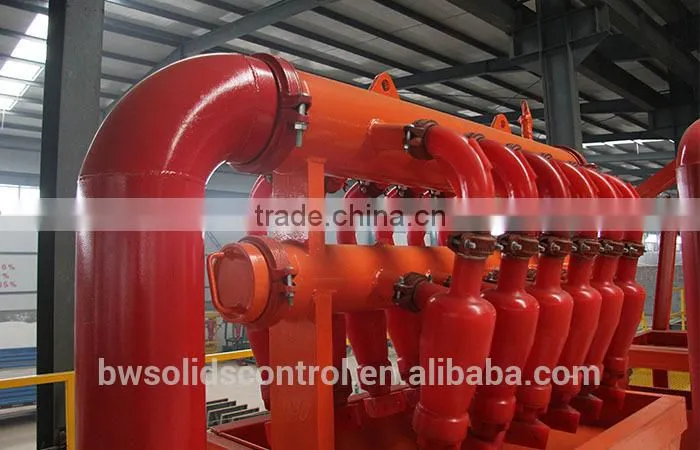

6. Cone: Made of wearing-resisting polyurethane and in the structure similar to Derrick design.7. Inlet and outlet: Fast joint connection
Desilter Parameters
Model | BWCNQ100-8N | BWCNQ100-10N | BWCNQ100-12N | BWZJ75-12N |
Screen area | 1.0m²(600x1600mm) | |||
Capacity | ≤160m³/h | ≤200m³/h | ≤225m³/h | ≤225m³/h |
Cone Size | 4"(cyclone each 12~15m3/h) | |||
Cone number | 2~12 swirlers, ccording to the capacity of the selection the swirler | |||
Matching Pump | SB6×5-12J(37Kw) | SB6×5-11J (30Kw) | SB8×6-13J (55Kw) | SB8×6-13J(55Kw) |
Inlet Size | 75mm-150mm | |||
Outlet Size | 125mm-200mm | |||
Separation Size | 15-47μm | |||
Company Profile
Xi'an Brightway Energy Machinery Equipment Co., Ltd. is specialized in the manufacture of the mud solids control equipments and the complete set of solids control system.
We focus on:
1) Oil and gas drilling mud system
2) HDD drilling mud recycling systems
3) CBM drilling mud cleaning systems
4) Underground engineering systems
5) Geothermal well engineering systems
6) Environment & waste mud treating systems
Brightway mud solids control equipments: Shale shaker, vacuum degasser, mud cleaner, desander cleaner, desilter cleaner, decanting centrifuge, sand pump, submersible slurry pump, mud agitators, self-suction sand pump, jet mud mixer, mud gas separator, mud gun, screw pump, shear pump, flare ignition device, oil tank, water tank, and mud tank, etc.
