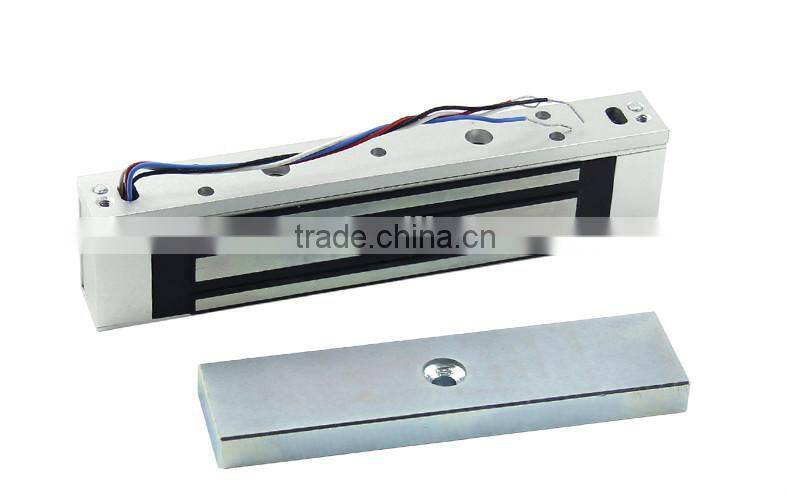

Help Center180KG 350lbs Magnetic Lock With Signal Output for Sliding Door
Related Products
-
280KG 600lbs LED Time Delay EM LockNegotiableMOQ: 50 Pieces -
JA280A Magnetic Locks, Electric Control LockNegotiableMOQ: 50 Pieces
-
Magnetic LockNegotiableMOQ: 50 Pieces
-
Flat Tumbler Mechanism Cylinder With Higher Resistance to Resist Violence(YP-H)NegotiableMOQ: 90 Sets
-
Cylinder of 304 Stainless Steel With Flat Tumbler Mechanism(YP-30)NegotiableMOQ: 90 Sets
The company's products are fashionable and the beautiful, safe and reliable performance in line with national standards. Applied to access control, building intercom, office space, emergency exits, and other occasions.
Hardened aluminum alloy, satin surface blasting, durable and beautiful.
High-quality professional magnetic materials, high-quality silicon steel, pure enamelled copper wire, with professional process, achievements of all safety equipment and stable quality electronic lock.
Magnetic lock (or electromagnetic lock) design is used of electromagnetic theory, the same as the electromagnet. When the current through the silicon steel, magnetic locks will produce powerful suction, iron will be suck tightly; Magnetic locks brings in a huge magnetic force even under a very small current, thereby make effective control of the doors switch.
Single door electric magnetic lock is used forWooden door,Glass door,Metal door, Fireproof door, easy to install, Low noise,long serving lifewith strong suction power. higher quality and reliable performance.
Advantage:
Our magnetic lock have the below advantage worthy for you choose:
1, The holding force of magnetic lock is the best In China(the holding force is higher 20% than other manufacturers).
2, The coil of our magnetic lock is pour copper not copper-clad aluminum
3, Shell is made of high-strength aluminum alloy.
4,The speciall desigh protect the PCB of magnetic lock moistureproof.
5,the PCB and the lock body connect by chip not traditonal wire.
6,Suction plate can resist the residual magnetic .
7,Buit-in reverse current protection device(MOV)
Product Parameter |
Parameter Description |

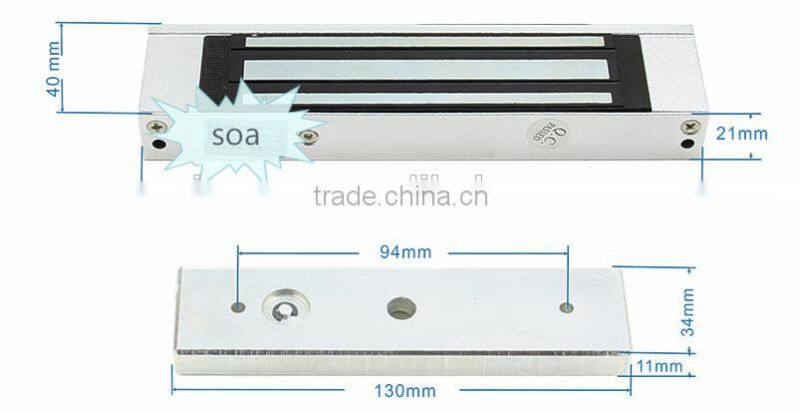

Lock Size |
190L*31.5W*22.2H(mm) |
Armature Plate Dimension |
130L*33W*9H(mm) |
Holding Force |
180kg(350Lbs) |
Signal output |
NO |
Input Voltage |
DC12V or DC24V |
Working Current |
12V/300mA 24V/150mA |
Door Type Applicable |
Wooden door , Glass door ,Metal door , Fireproof door |
Time Delay |
NO |
Security Type |
Power off to open |
Weight |
1.2kg |
Advantage:
1, Collinear Load Test 180kg, 350pounds.
2, Dual Voltage 12 or 24 VDC (optional).
3, Built-in reverse current protection device (MOV).
4, Anti residual magnetism design, anti-wear manufacturing materials.
5, Shell is made of high-strength aluminum alloy, Anodized.
6, Increase the holding Force, Dual Insulative Hosing
7, Certificate of approval: CE/FCC/ROHS
8, Complete electromagnetic suction work
9, No mechanical failure
ZHONGSHAN JIEAN ELECTRONIC TECHNOLOGY CO.,LTD (SELOCKEY®)
was set up in 2000 in Guangdong province. From now on, SELOCKEY® has gained a vast development with its powerful technology and business trade. With its humanistic management, SELOCKEY® is trying to create a comfortable working environment, which provides a platform for every staff to develop themselves and grow up together. Due to its humanism, our company tries to make sure that our product can meet customers' need and be more satisfied with our service. Our tenet is "The Best Quality, The Best Process".
SELOCKEY® is a R&D MANUFACTURER, specializing in TM/IC/ID card (such as contact card, electronic keys, and touch memory keys) EM4100,T5577,T5567,T5557 smart cards, and electronic cabinet locks, electronic door locks, magnetic locks, access control system and related products. Major products gained high reputation in Russia, South America, and Western Europe. And we are devoted ourselves to offering high-quality product and best service for you.
