Brightway Horizontal Screw Decanter Centrifuge Features
Brightway is the professional Horizontal Screw Decanter Centrifuge Manufacturers and Suppliers.
Brightway decanter centrifuges are designed with practical structure and environmental friendly concept. The middle speed, high speed and variable-speed decanter centrifuge can separate and remove solid phrases in drilling fluids with safe, consistent, and efficient working performance, satisfying different request for solids control in oil drilling, drilling waste management, and other industrial applications.
1. Main body & core components of decanter centrifuge adopt Q345 high-strength wear-resistant alloy material.
2. Decanter centrifuge screw propeller material: 1CR18NI9TI
3. Decanter centrifuge Bowl: SS316 material
4. Bearing: SKF or FAG.
5. Explosion-proof electric control box: The electric components are well-known brand as SIEMENS, SCHNEIDER or ABB.
6. Discharge port protected by tungsten carbon alloy ring or coating.
7. Parts in contact with material are stainless steel.
Brightway Solids Decanter Centrifuge Model
BWLW450X842N Horizontal Screw Decanter Centrifuge
BWLW450X1250N Horizontal Screw Decanter Centrifuge
BWLW355X1250N Horizontal Screw Decanter Centrifuge
BWLW365G/VFD Decanter Centrifuge
Brightway Horizontal Screw Decanter Centrifuge Parameters
| Model | BWLW450X842N | BWLW450X1250N | BWLW355X1250N | BWLW365G/VFD |
| Bowl Diameter | 450mm | 450mm | 355mm | 365mm |
| Bowl Length | 842mm | 1000mm | 1250mm | 1250mm |
| Bowl Speed | 1800 rpm | 2200 rpm | 3200 rpm | 0-3500 rpm |
| G-Force | 815 | 1220 | 2035 | 2500 |
| Separation Point | 5-7μm | 5-7μm | 2-5μm | 2-5μm |
| Main Drive | 22Kw-4p | 30Kw-4p | 30Kw-4p | 37Kw-4p |
| Back Drive | 5.5Kw-4p | 7.5Kw-4p | 7.5Kw-4p | 7.5Kw-4p |
| Max Capacity | ≤40m³/h | ≤60m³/h | ≤40m³/h | ≤40m³/h |
| Weight | 2950kg | 3150kg | 2850kg | 2950kg |
| Dimension | 2380x1560x1350mm | 2540x1560x1350mm | 2810x1490x1350mm | 3412x1600x1875 mm |

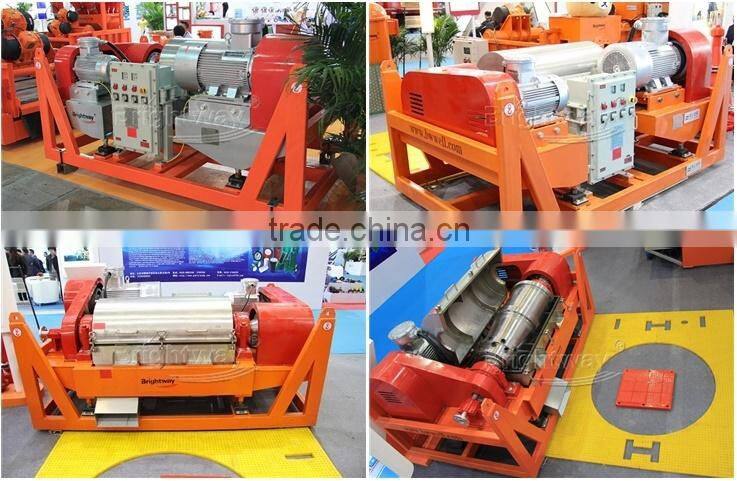

Brightway Horizontal Screw Decanter Centrifuge
BWLW365G/VFD Decanter Centrifuge
BWLW450X1250N Decanter Centrifuge
