Specifications

full stainless steel part.
Solid metal read/write probe for touch memory button
Integrated green LED for signal lighting

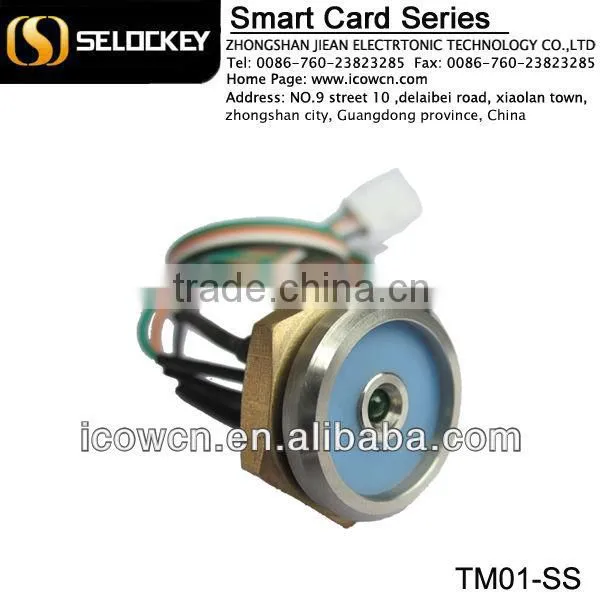

product name: stainless steel Dallas ibutton reader card probe(TM01-SS)

product model: TM01-SS
product group: ibutton card

Features:
- the Ibutton reader is with LED light hint or not

- With sound hint
- Solid metal read/write probe for touch memory button
- Integrated green LED for signal lighting
- Probe guides the entry of touch memory
- Probe suited for panels thickness 2-3mm
- Contact made from:
   Shell— Stainless steel 304
   Data pole— 304 stainless steel
- Pre-wired for wasy installation:
- Wire— 17*0.14 copper wire, 4mm tinplating
- Lug plate--silver plating
- LED Current is MAX20mA.
- Installation: can be easily installed on doors, exterior design size and information card just coincide, reading card is very sensitive

FEATURES

l Solid metal read/write panel-mount probe for the Ddallas iButton family products.

l Integrated green LED for user-feedback signaling or no LED model.

l Probe guides the entry of the Dallas iButton family products.

l Dallas iButton slides over the surface to self-clean contacts.

l Accessible shallow probe cavity simplifies removal of debris such as mud.

l Probe suited for panels of up to 3mm thickness.

l Contacts made from solid 304 stainless steel with blue nylon insulation.

l Metric design, pre-wired for easy installation.



TM01SS 9092L with LED probe,panel mount



DESCRIPTION

The TM01SS-9092L Dallas iButton Probe with LED provides the electrical contact necessary for the transfer of data to and from the Dallas DS19xx family of iButtons. The round probe shape provides a self-aligning interface that readily matches the circular rim of the Dallas iButton’s MicroCan package. The solid metal contacts resist wear and are easy to keep clean.

The TM01SS-DS9092L has no moving parts, making it a rugged interface for harsh environments. The round center contact of the TM01SS-DS9092L houses the LED that is rated for maximum 20 mA DC at 2.7V typically.

The probe comes with a brass M18*1 nut for panel mounting. Since the body of the probe also forms the ground contact, the panel should be of non-conducting material to avoid ground loops. The 30-cm cable with connector is provided for easy connection to the system microcontroller. The mating connector is a Molex Part Number 22-04-1041.
