Help Center10 Inch Open Frame Monitor With VGA HDMI AV BNC 800*600 Resolution XGA
Related Products
-
10 Inch Open Frame Monitor,Pos Machine Monitor With VGA HDMI BNC Touch ScreenUS$ 122 - 148MOQ: 50 Pieces -
10" Open Frame Monitor,Lcd Open Frame Monitor, Monitor With Metal Case With HDMI VGA USB TOUCHUS$ 92 - 148MOQ: 50 Pieces
-
7 Inch Monitor With Metal Case,monitor With Metal Case,7 Inch Touch Screen MonitorUS$ 80 - 150MOQ: 10 Sets
-
2014 7" Vga Monitor(support Win8/win7)NegotiableMOQ: 50 Pieces
-
Tft Lcd 7" Vga Monitor With Touch ScreenNegotiableMOQ: 50 Pieces
Specifications
Open frame monitor 8"/9.7"/10"/12"/15 optionalWith AV/VGA/HDMI/DVI/TOUCH SCREEN Optional
Metal frame size: 269.6X217.6X35mm
Factory offer Industrial 7" / 8"/ 10"/ 12" / 15" / 17" / 19"/ 22" /
26" / 32" Open frame LCD Monitor with/without Touch screen
Support OEM
Model Number: OP-104M
Open frame monitor 10 inch TFT LCD monitor for advertsing
With AV/VGA/HDMI/DVI/TOUCH SCREEN Optional
Metal frame size: 269.6X217.6X35mm
Description:
1) 10.4 inch TFT touch screen monitor
3) Display type: 10.4" Active Matrix TFT LCD ( 4:3)
4) Active display area: 152.4(H) X 91.44(V) mm
5) Resolution: 1024 x 768 @ 75Hz max
7) Pixel pitch: 0.1905(W) X 0.1905(H) mm
8) Pixel response time: 12ms
9) Colors: 16.7 million
10) Brightness: 400 cd/m2
11) Contrast: 500:1
12) Viewing angle horizontal (left/right): 170° (85°/85°)
(From Centre, CR>=5) Vertical (up/down): 160° (70°/90°)
13) Backlight lamp life hours: 50,000
14) Input video format: Analog RGB, NTSC/PAL/SCAME(AUTO)
15) Touch screen Interface: USB
16) Touch response time Serial/USB: 10.4ms
17) Touch sensitivity: Fixed
18) Operating temperature:-10°C - 60°C
19) Storage temperature:-20°C - 80°C
20) Power Supply: AC 110-240V, DC 12V, 50-60 Hz
21) Power Consumption: <10 W Typ
22) Gift box Weight: 4.5kg
23) Warranty: 1 year
24) Remote control
Specification:
1) 4 wires resistive touch-screen interface with high Sensitivity (USB port)

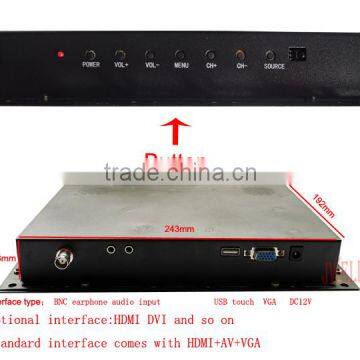

2) Standard VGA input (15 pin D-SUB/USB) and HDMI input can match with PC, GPS and security systems
3) 2 RCA video input can match with VCD, DVD and camera
4) RGB input
5) Touch-screen for PC display
6) Built-in speaker/amplifier and earphone jack
7) Operating Systems: DOS/Windows 9X, ME, 2K, XP, 7, Vista, NT, CE
/ LINUX / Mac,etc.
| Name | 10.4″TFT Open frame Monitor |
| Model | OP-104M |
| Description | 10.4″ Open frame Monitor |
| Case/Bezel Colour | Black |
| Touch monitor Performance | Standard |
| Display Type | 4:3 Ratio10.4″Active Matrix TFT LCD |
| Active Display Area | 211.2(W) X 158.4(H) mm |
| Native Resolution | 800 x 600 @ 60Hz _1024 x 768 @ 75Hz |
| Sychronization Range | 30-80 KHz horizontal, 55-75 Hz Vertical |
| Pixel Pitch | 0.264(W) X 0.264(H) mm |
| Pixel Response Time Rise + Fall (Typically) | 12ms |
| Plug and Play | VESA DDC 1/2B |
| On Screen Display (OSD) | Remote OSD |
| Brightness | 400 cd/m2 |
| Contrast Ratio Typically | 500:1 |
| ViewingAngle Horizontal (left/right) | 170° (85°/85°) |
| (From Centre, CR>=5) Vertical (up/down) | 160° (70°/90°) |
| LED Backlight life Hrs | 50,000 |
| Input Video Format | Analog RGB , CVBS NTSC/PAL (AUTO) |
| Touch screen Interface | Serial COM(RS232) or USB |
| Touch Response Time Serial/USB | 10.4ms |
| Touch Sensitivity | Fixed |
| Touch Pen Hitting Life | >= 1milions times |
| Monitor Dimensions | 269.6X217.6X35mm |
| Shipping Carton Dimensions | 303 x 277x 75(mm) |
| Provider Weight (approximately) Monitor/Shipping | 4.5kg |
| Power Supply | External: 85-265VAC, 50-60 Hz |
| Power Consumption | <20 W Typ |
| Temperature Range | Operating:0°C-50°C, Storage:-20°C-80°C |
| Relative Humidity Non Condensing | Operating:10%-90%, Storage 5%-90% |
| Warranty | 1 year |
| Agency Approvals | FCC, CE, RoHS |
Accessories
1. USB cable
2. VGA cable
3. Remote controller
4. adapter
5. Software CD
6. English user manual
7. Touch Pen
8. Metal case
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confimation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 12 months warranty for items
Q: What kind of inspection you can provide?
A: JWELL has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representatives, to guarantee all foldable monitor are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: JWELL provides 12 months' quality guarantee for foldable monitor from your purchase date, except the human damaged and force majeure factor. For a better maintenance, be sure that foldable monitor are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, JWELL will provide maintenance service and technical support (Hardware and other possible charges, JWELL will not bear the responsibility)
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Escrow, Credit card
1) For sample order: 100% T/T or Western Union in advance, Paypal or Escrow is also acceptable.
2) For bulk order: 30%deposit T/T in advance, balance clear before pick up or shipment.
