Specifications
10.4 inch LCD SKD kit with HDMI AV VGA1. 12.1 15 15.6 inch optional
2.With VGA/HDMI/DVI Optiona

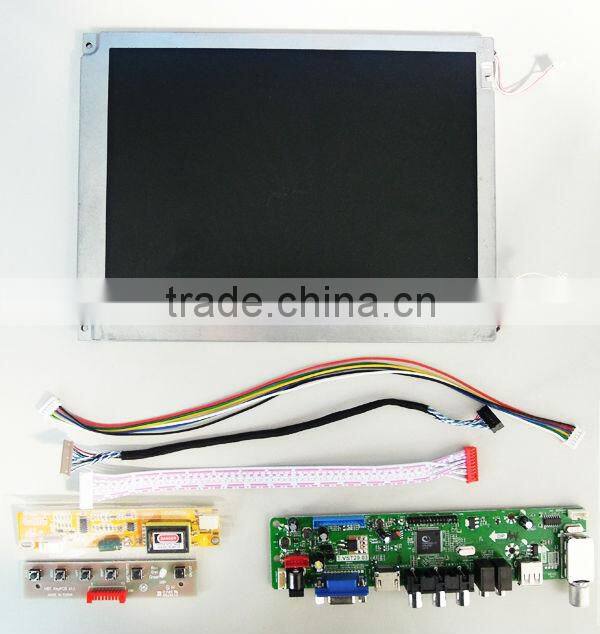

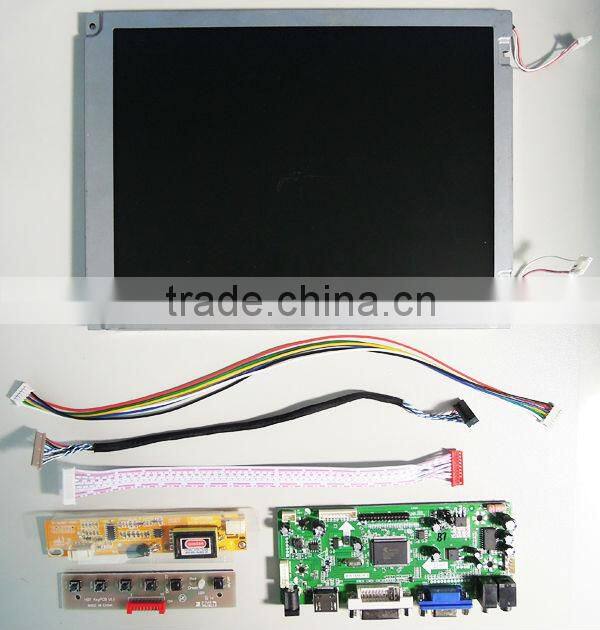

10.4 inch LCD SKD kit with HDMI AV VGA
Model Number: SKD-104
10 inch TFT LCD panle
With AV/VGA/HDMI/DVI
Description:
Operating Systems: DOS/Windows 9X, ME, 2K, XP, 7, Vista, NT, CE
/ LINUX / Mac,etc.
| Name | 10.4″TFT LCD panle |
| Model | SKD-104 |
| Description | 10.4″ LCD panle |
| Case/Bezel Colour | White |
| Touch monitor Performance | No touch |
| Display Type | 4:3 Ratio10.4″Active Matrix TFT LCD |
| Active Display Area | 211.2(W) X 158.4(H) mm |
| Native Resolution | 800 x 600 @ 60Hz _1024 x 768 @ 75Hz |
| Sychronization Range | 30-80 KHz horizontal, 55-75 Hz Vertical |
| Pixel Pitch | 0.264(W) X 0.264(H) mm |
| Pixel Response Time Rise + Fall (Typically) | 12ms |
| Plug and Play | VESA DDC 1/2B |
| On Screen Display (OSD) | Remote OSD |
| Brightness | 400 cd/m2 |
| Contrast Ratio Typically | 500:1 |
| ViewingAngle Horizontal (left/right) | 170° (85°/85°) |
| (From Centre, CR>=5) Vertical (up/down) | 160° (70°/90°) |
| LED Backlight life Hrs | 50,000 |
| Input Video Format | Analog RGB , CVBS NTSC/PAL (AUTO) |
| Touch screen Interface | No touch |
| Touch Response Time Serial/USB | No touch |
| Touch Sensitivity | No touch |
| Touch Pen Hitting Life | >= 1milions times |
| Panle type | LCD |
| LCD panel | 10 inch |
| Stock | yes |
| Power Supply | External: 85-265VAC, 50-60 Hz |
| Power Consumption | <20 W Typ |
| Temperature Range | Operating:0°C-50°C, Storage:-20°C-80°C |
| Relative Humidity Non Condensing | Operating:10%-90%, Storage 5%-90% |
| Warranty | 1 year |
| Agency Approvals | FCC, CE, RoHS |
Accessories
1. USB cable
2. VGA cable
3. Remote controller
4. adapter
5. Software CD
6. English user manual
7. Touch Pen
8. Metal case
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confimation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 12 months warranty for items
Q: What kind of inspection you can provide?
A: JWELL has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representatives, to guarantee all foldable monitor are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: JWELL provides 12 months' quality guarantee for foldable monitor from your purchase date, except the human damaged and force majeure factor. For a better maintenance, be sure that foldable monitor are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, JWELL will provide maintenance service and technical support (Hardware and other possible charges, JWELL will not bear the responsibility)
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Escrow, Credit card
1) For sample order: 100% T/T or Western Union in advance, Paypal or Escrow is also acceptable.
2) For bulk order: 30%deposit T/T in advance, balance clear before pick up or shipment.
No matter big or small order, just write down details you need Click below "send"
