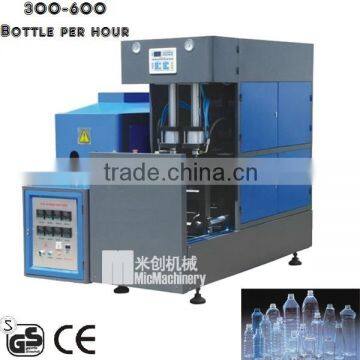

MIC-8Y Micmachinery semi-automatic blow molding machine for PET jar
Description of
MIC-8Y Micmachinery semi-automatic blowing machine for pet bottle for 1400BPH with CE
blowing machine for pet bottle

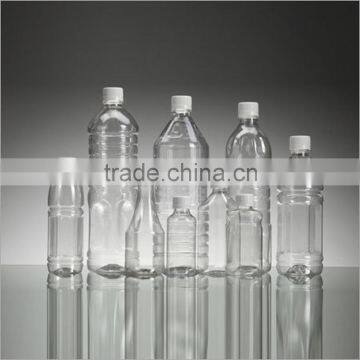

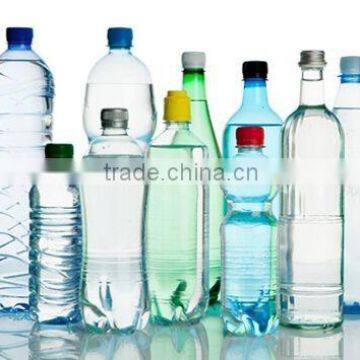

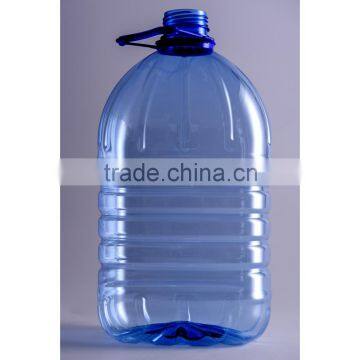

is suitable for producing PET plastic containers and bottles from 0.1L to 2L. It is widely used to produce

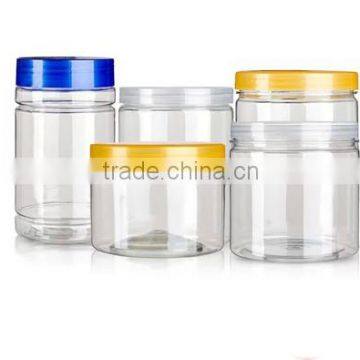

the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
Advantage of
blowing machine for pet bottle:
1. Double Crank to adjust mold, heavy locking mould, steady and fast.
2. Framed Oven to heat prefroms, Rotary heating, make sure heating blance.
3. Air system has been divivded to Two parts: Pneumatic Activies & Bottle blowing activies.
In order to meet different needs for these two steps. Make sure the machines have sufficient
and Steady high pressure for blowing bottle.
4. Noise remove system: Machine with Muffler & oil system to lubricate the mechanical parts.
5. Operation of machine is in step by step, we have operation manual in English & Spanish.
6. Machine price will be 7500 USD - 11000USD, Steady Running with no problems
Parameters of
blowing machine for pet bottle
| Model | ITEM | MIC-8Y | |
| Container | Product material | / | PET |
| Volume | L | 0.1-2 | |
| Theoretical output | pcs/h | 1400-1800 | |
| Preform length | mm | ≤350 | |
| Preform inner diameter | mm | ≥φ12 | |
| Mould | Max.mould plate Diameter(L*W) | mm | 350*380 |
| Max.mould thickness | mm | 210 | |
| Mould opening stroke | mm | 160 | |
| Machine size and Weight | Main machine (L*W*H) | cm | 1600*600*1610 |
| Main machine weight | kg | 500 | |
| Heater (L* W*H) | cm | 1870*630*1450 | |
| Heater weight | kg | 250 | |
| Power | kw | 17.5 |

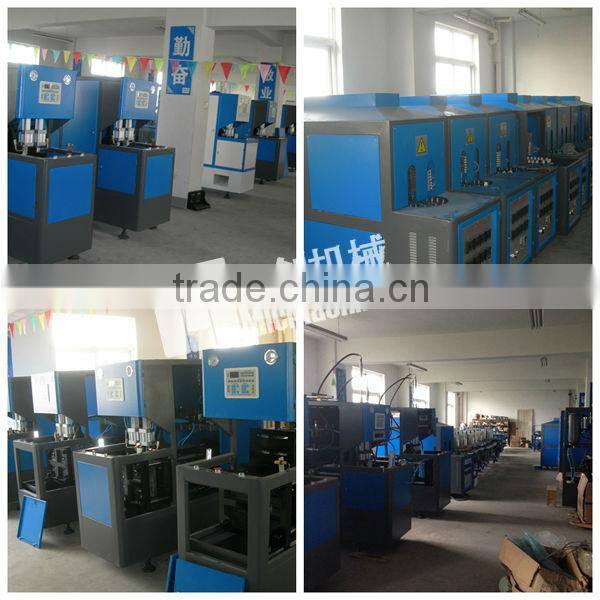

Picture of
blowing machine for pet bottle work shop
Package (export case) of
blowing machine for pet bottle
Serivce From Micmachinery of
blowing machine for pet bottle
Oversea Technician Service: Machine installation and Trainning. (with daily payment)
Oversea Translator Service: Your contactor will be your Coordinator in your site.
Only to provice Local transportation fee, Accommodation, Air tickets (round trip) Visa.
Company information of
blowing machine for pet bottle information:
1. Production years: 8 years
2. Sold market: Europe, Africa, South america, The Middle East.
3. We provide: 8 hours action, 24 hours solution, before, during and after the sales fair.
Make sure there is no Client interets lost what so every.
blowing machine for pet bottle Sheet:
Company Name |
Mic Machinery.Co.,Ltd (Hangzhou) |
Business Type |
Manufacture & Trading |
Location |
ZheJiang,China |
Products Cetifications |
CE SGS |
Main Markets |
Europe, South & North America,Africa |
Experience |
Over 8 years experience in machine design and manufacturing Over 6 years in exporting Factory Turnkey projects (done): over 20 cases |
Oversea Projects |
Greece, albania, france, turkey, algeria, Sudan, Saudi Arabia ETC |
Delivery time |
30-75 Days according to different project |
Guarantee |
1 or 2 years Guarantee according to different project |
Control Cabinet Voltage |
220v/380v, 3 phase, 50Hz (Mainly) / Customized |
Packaging |
Wooden Case (export) |
FAQ for businessman friend:
Want to buy blowing machine for pet bottle?
Q1: How is the machine quality, why I want to choose your machine.
A1: We have machine process in our factory, operation video, and if you want to, we can send oversea technician to fix your problem, just inform us (14 working day in adavance).
Q2: How we can get the spare parts?
A2: Depends on the valve, we will provice free spare parts one set, and we have list for Electrical elements,
you can get from us, or the match model in your country.
Q3: What if I want to no troubles for the machine production.
A3: We can offer you the Shipment Port to Port, Door to Door, Installation and training with our technician and sales.
FAQ for Engineer friend:
How to fix blowing machine for pet bottle
Problems |
Causes analysis |
Trouble-shooting |
Not complete forming |
Not enough air pressure .air blowing retention time incorrect. |
Increase pumps air pressure, Check air supply tube, and any leakage on solenoid valve. Adjust the retention time |
There is agglomeration on the neck or bottom of the bottle, like hook moon. |
Air blowing retention time too long. Oven chamber adjustment not ready |
Make the retention time shorter. Adjust the temperature on upper or down part. |
The bottom level not even on the both sides, i.e., one side low, the other high. |
Stretching poles not on right place. Retention time too short. Upper part temperature of oven is too low. |
Adjust the stretching poles. Make retention time longer and upper part temperature of oven up |
The lines on products are not clear.. |
Heating time is too long or too less. not enough air pressure |
Adjust the heating time, air pressure, check for any air leakage. |
No forming. |
Heating time is too long. The preform becomes white. Heating up temperature is too high. |
Shorten the heating time. Decrease the heating temperature. |
Oil filth left on the bottom of bottle. |
Pole sealing buffer may be damaged.Φ16×2.4 |
Replace it promptly |
