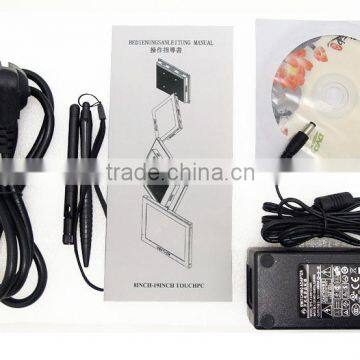

OEM 8 inch 32 inch embedded industrial PC with touch screen DVI/VGA HDMI S/PDIF double-channel LVDS Quality Choice

Model:

JW-128PC

Name:

12.1  Inch Fanless Ultra slim ALL-IN-ONE Monitor

Description

Fanless Ultra slim Panel PC

Monitor size

12.1"   LED 4:3

Touch typ

4 –wires resistive touch

Surface hardness

3H

Transmittance

≥80%

Sensitive

< 10ms

Resolution

1280× 800 ( 1920X1200 optional )

Brightness

400cd/m2(Typ)

Contrast

  700:1

LCD color

16.7M colors

Pixel Pitch

0.264 x 0.264

Life time

Single-point 10000,000 times , Draw lines 100,000 times

Operating temperature

-20°C~60°C

Storage temperature

-30°C~80°C

Working Humidity

5%—95%,40°C,Non –condensing

Vibration

5-100Hz,Sine wave,11.76m/S2,1minute X,Y,Z directions,10 times / direction

Shock

294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

SBC Model

ALL IN ONE special & professional SBC

CPU

On board Intel® Atom D525 1.8GHz dual core

BIOS

Award BIOS 4/8Mbit SPI Flash ROM

Chipset

Intel NM10 Express Chipset

Memory

2×204-pin DDR3 DIMM up to 4GB

Graphics

Independent Graphics NVIDIA ION2 and support 1080p HD photo quality

Audio Card

Realtek ALC662 high Definition audio codec

Network

2×Realtek RTL 8111E Gigabit Ethernet controller,(Wireless Wifi)

I/O

4×USB 2×COM 1×VGA/LAN/HDMI/Audio OUT/MIC IN/S/PDIF/POWER DC

Hardisk interface

2.5”SATA (SSD optional )

Watchdog

Support system reset grade   0~255

Power supply

DC 12V input

Operating temperature

-20°C~60°C

Storage temperature

-30°C~80°C

Working Humidity

5%—95%,40°C,Non –condensing

Vibration

5-100Hz,Sine wave,11.76m/S2,1minute X,Y,Z directions,10 times / direction

Shock

294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case

Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways

Rackmount , Embeded , wall mount ,VESA bracket

Shock

294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case

Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways

Rackmount , Embeded , wall mount ,VESA bracket
