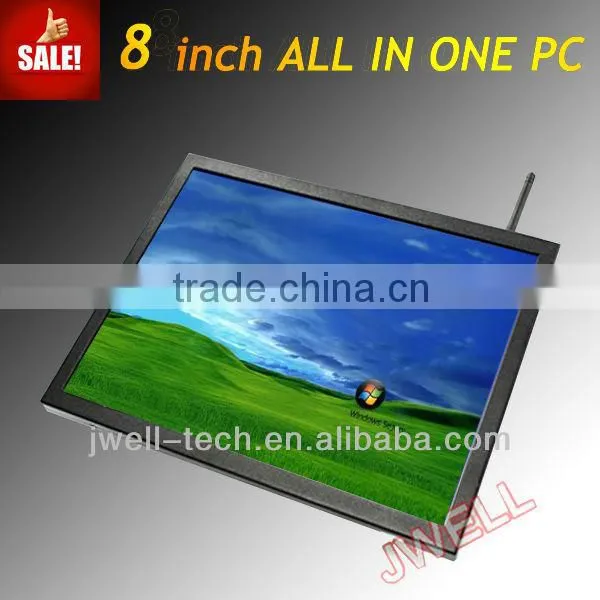

All Function In One Industrial Pc 8"
- 10000 Piece / Pieces per Month
- sz/hk
- Credit Card
-
8/8.4 Inch Industrial Touch Screen All-in-One Windows10/11/Linux System Wide Voltage DC9~36V Front Panel IP65 Water Resistant
-
MEKT 18.5/15.6 Inch Industrial Wall Mount Capacitive Touch All-in-One i3i5i7-11 Generation Outdoor High Gloss Embedded Tablet PC
-
Bosto X5 Graphics Drawing Tablet with Screen Full-Laminated Tilt Battery-Free Stylus Touch Bar Adjustable Stand, ,15.6inch Pen Display
-
Marine Full Body IP65 Waterproof 15.6-Inch Touchscreen Industrial Control All-in-One Embedded Tablet Anti-Glare Anti-fog MEKT
-
MEKT 13.3 Inch RK3568 Outdoor High Brightness 1000 Nits Embedded Capacitive Touchscreen 1080P Android All-in-One PC Wall Mounted
-
1366/1080P/ 18.5 Inch Industrial Intelligent Terminal Query Touch Screen All-in-One Machine Embedded Tablet Computer
Product Details
Products Status: | Stock | Type: | All-In-One | Screen Size: | Other, 8" |
Processor Brand: | Intel | Memory Capacity: | Other, ≥ 4GB | Hard Drive Capacity: | 500GB |
Graphics Card Type: | Integrated Card | Display Type: | LCD | Widescreen: | No |
Processor Main Frequency: | D525 1.8GHz dual core | Brand Name: | JWELL | Model Number: | JW-108PC |
Place of Origin: | Guangdong, China |
Product Description
Specifications
1024X78 700:1 350cd/m2 IPS TFT HD screen Wide view angleInter Atom D2550 orgional motherboard
NM10 chip
Full view angle HD Industrial 8 inch All In One PC
Iron/Aluminum All In One PC with LCD screen
Super slim Tablet fashion design
High quality industrial grade
Support DVI/VGAHDMI,S/PDIF,double-channel LVDS interface
Double-groove DDR3 memory
Maximum memory capacity support 4GB
Model: | JW-808PC |
Name: | 8 Inch Fanless Ultra slim ALL-IN-ONE Monitor |
Description | Fanless Ultra slim Panel PC |
Monitor size | 8" ( 4:3 ) |
Touch typ | 4 –wires resistive touch |
Surface hardness | 3H |
Transmittance | ≥80% |
Sensitive | < 10ms |
Resolution | 1024X768 |
Brightness | 350cd/m2(Typ) |
Contrast | 700:1 |
LCD color | 16.7M colors |
Pixel Pitch | 0.264 x 0.264 |
Life time | Single-point 10000,000 times , Draw lines 100,000 times |
Operating temperature | -20°C~60°C |
Storage temperature | -30°C~80°C |
Working Humidity | 5%—95%,40°C,Non –condensing |
Vibration | 5-100Hz,Sine wave,11.76m/S2,1minute X,Y,Z directions,10 times / direction |
Shock | 294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction |
SBC Model | ALL IN ONE special & professional SBC |
CPU | On board Intel® Atom D525 1.8GHz dual core |
BIOS | Award BIOS 4/8Mbit SPI Flash ROM |
Chipset | Intel NM10 Express Chipset |
Memory | 2×204-pin DDR3 DIMM up to 4GB |
Graphics | Independent Graphics NVIDIA ION2 and support 1080p HD photo quality |
Audio Card | Realtek ALC662 high Definition audio codec |
Network | 2×Realtek RTL 8111E Gigabit Ethernet controller,(Wireless Wifi) |
I/O | 4×USB 2×COM 1×VGA/LAN/HDMI/Audio OUT/MIC IN/S/PDIF/POWER DC |
Hardisk interface | 2.5”SATA (SSD optional ) |
Watchdog | Support system reset grade 0~255 |
Power supply | DC 12V input |
Operating temperature | -20°C~60°C |
Storage temperature | -30°C~80°C |
Working Humidity | 5%—95%,40°C,Non –condensing |
Vibration | 5-100Hz,Sine wave,11.76m/S2,1minute X,Y,Z directions,10 times / direction |
Shock | 294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction |
Case | Metalcase , shockproof , anti-interference , metal shell(paint)) |
Installation ways | Rackmount , Embeded , wall mount ,VESA bracket |
Shock | 294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction |
Case | Metalcase , shockproof , anti-interference , metal shell(paint)) |
Installation ways | Rackmount , Embeded , wall mount ,VESA bracket |
Features
a. Standard with Intel® AtomTM processor.
b. High brightness ,Full view angle IPS TFT panel .
c. Multi-directional heat- releasing structure .
d Built-in W-Lan Antenna(802.11b/g/n) .
e. Ultra slim metal design , beautiful ,durable and rugged.
f. Independent graphics NVIDIA ION2 and support 1080p HD photo quality .
Connector port:
1 X VGA
1 X HDMI
1 X Gigabit LAN
4 X USB
1 X Audio Out
1 X MIC IN
1 X S/PDIF
1 X COM
1 X POWER DC IN
Compatible Operating System :
Windows XP Embedded
Windows CE
Linux
Optional Display size:
8inch, 10 inch, 12.1 inch, 15 inch, 17 inch
