Home > Computer Products > Computer > Gaming Computer > 2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc

2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc

2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc thumbnail-1
2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
All-In-One
Screen Size:
Other, 8"
Contact Supplier Request Quote Chat Now
Shenzhen J-Well Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
sz/hk
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type All-In-One
Screen Size Other, 8"
Processor Brand Intel
Memory Capacity Other, ≥ 4GB
Hard Drive Capacity 500GB
Graphics Card Type Integrated Card
Display Type LCD
Widescreen No
Processor Main Frequency D525 1.8GHz dual core
Brand Name JWELL
Model Number JW-108PC
Place of Origin Guangdong, China

Specifications

1024X78 700:1 350cd/m2 IPS TFT HD screen Wide view angle
Inter Atom D2550 orgional motherboard
NM10 chip

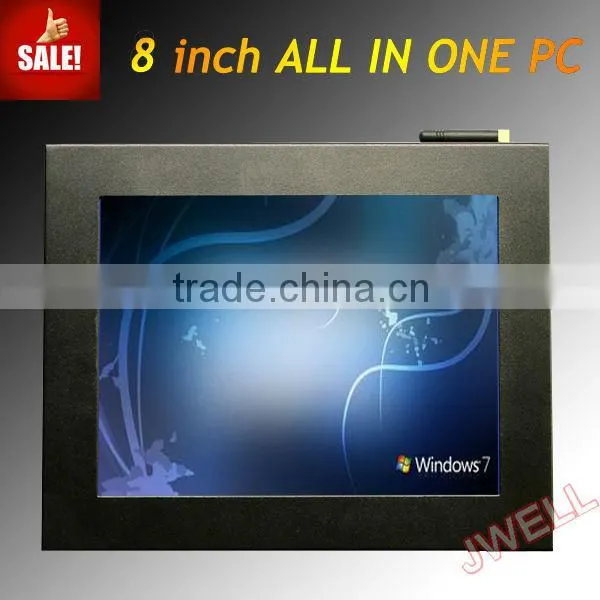

Full view angle HD Industrial 8 inch All In One PC



Iron/Aluminum All In One PC with LCD screen

Super slim Tablet fashion design

High quality industrial grade

Support DVI/VGAHDMI,S/PDIF,double-channel LVDS interface

Double-groove DDR3 memory

Maximum memory capacity support 4GB





Model:

JW-808PC

Name:

8  Inch Fanless Ultra slim ALL-IN-ONE Monitor

Description

Fanless Ultra slim Panel PC

Monitor size

8"   ( 4:3  )

Touch typ

4 –wires resistive touch

Surface hardness

3H

Transmittance

≥80%

Sensitive

< 10ms

Resolution

1024X768

Brightness

350cd/m2(Typ)

Contrast

  700:1

LCD color

16.7M colors

Pixel Pitch

0.264 x 0.264

Life time

Single-point 10000,000 times , Draw lines 100,000 times

Operating temperature

-20°C~60°C

Storage temperature

-30°C~80°C

Working Humidity

5%—95%,40°C,Non –condensing

Vibration

5-100Hz,Sine wave,11.76m/S2,1minute X,Y,Z directions,10 times / direction

Shock

294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

SBC Model

ALL IN ONE special & professional SBC

CPU

On board Intel® Atom D525 1.8GHz dual core

BIOS

Award BIOS 4/8Mbit SPI Flash ROM

Chipset

Intel NM10 Express Chipset

Memory

2×204-pin DDR3 DIMM up to 4GB

Graphics

Independent Graphics NVIDIA ION2 and support 1080p HD photo quality

Audio Card

Realtek ALC662 high Definition audio codec

Network

2×Realtek RTL 8111E Gigabit Ethernet controller,(Wireless Wifi)

I/O

4×USB 2×COM 1×VGA/LAN/HDMI/Audio OUT/MIC IN/S/PDIF/POWER DC

Hardisk interface

2.5”SATA (SSD optional )

Watchdog

Support system reset grade   0~255

Power supply

DC 12V input

Operating temperature

-20°C~60°C

Storage temperature

-30°C~80°C

Working Humidity

5%—95%,40°C,Non –condensing

Vibration

5-100Hz,Sine wave,11.76m/S2,1minute X,Y,Z directions,10 times / direction

Shock

294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case

Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways

Rackmount , Embeded , wall mount ,VESA bracket

Shock

294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case

Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways

Rackmount , Embeded , wall mount ,VESA bracket













































































































































































Features



a.  Standard with Intel® AtomTM   processor.



b.  High brightness ,Full view angle IPS TFT panel .



c. Multi-directional heat- releasing structure .



d  Built-in W-Lan Antenna(802.11b/g/n) .



e. Ultra slim metal design , beautiful ,durable and rugged.



f.  Independent graphics NVIDIA ION2 and support 1080p HD photo quality .

Connector port:



 1 X VGA



1 X HDMI



1 X Gigabit LAN



4 X USB



1 X Audio Out



1 X MIC IN



1 X S/PDIF



1 X COM



1 X POWER DC IN



 Compatible Operating System :



 Windows XP Embedded



Windows CE



Linux



 Optional Display size:



 8inch, 10 inch, 12.1 inch,  15 inch, 17 inch

2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc

2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc2013 Hot 8"10"12.1"Small Embedded Industrial Touch Pc All In One Panel Pc
