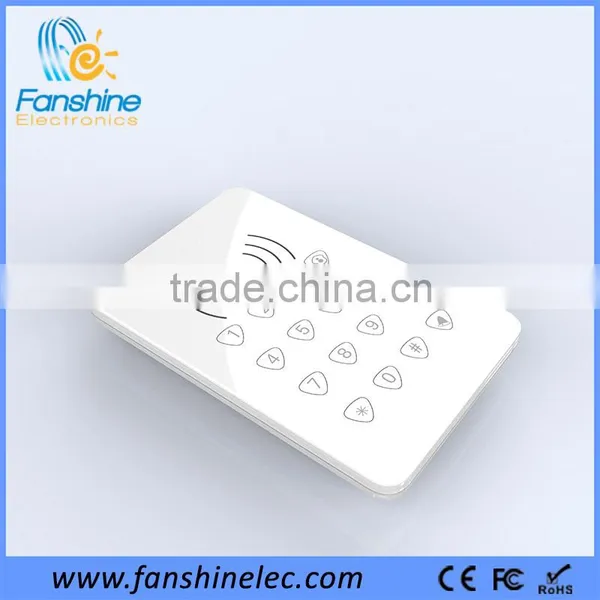

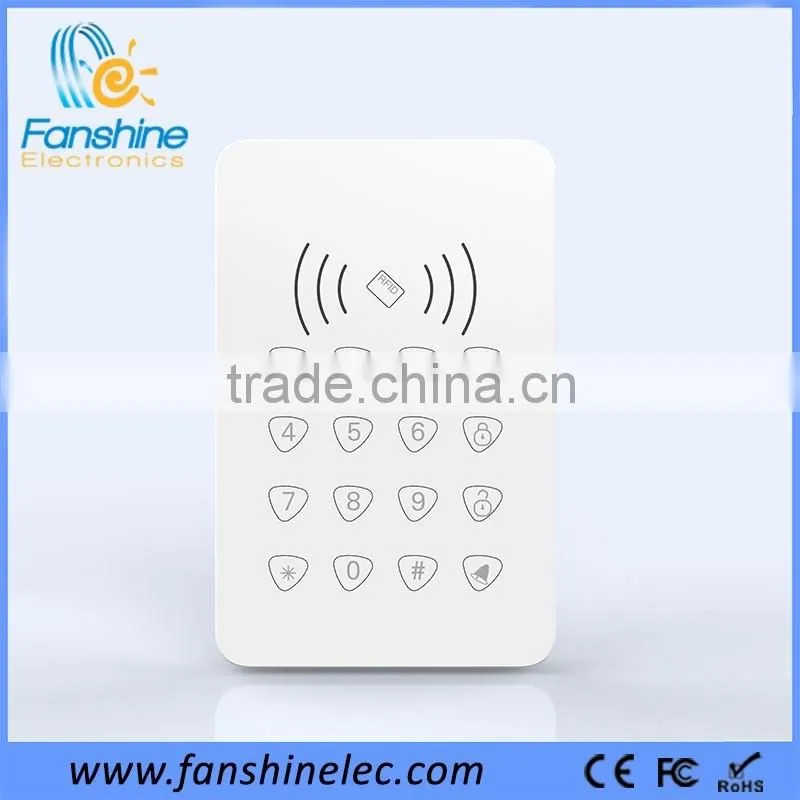

Fanshine 868Mhz Alarm System Wireless Wireless Touch Keypad
Key features
* Work with our company’s alarm systems
* Arm/Disarm via RFID card or Password, Door Bell
* Capacitive Touch Keypad
* Low power consumption
* Anti-tamper
Technical Information
* Standby current:<10UA Operating current:<20MA
* Battery:1.5V AAA * 3
* Battery life:2 years
* 433/868MHz optional,wireless transmission distance:>100 meters(open space)
* RFID type:ID card,support 60 cards in maximum
Operation
1,Power On

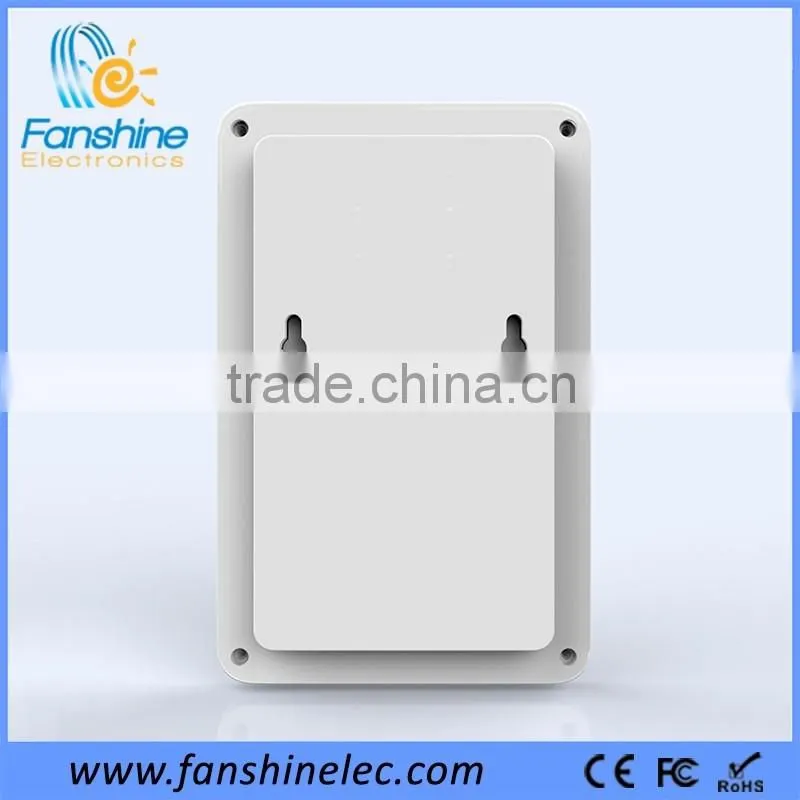

Take off back cover, then install battery correctly, hear one “Beep”, SET light up for a long time; it will turn back to Standby status if there is no further operation for 4 seconds.
2,Connect to alarm panel by learning code
When alarm panel is under learning status, Arm/Disarm panel twice, then you will see corresponding success feedback on the alarm panel.(please refer to alarm system’s user manual)
3,Away Arm
Enter[*+ password + Away Arm button]→ 4-digits password, the default password is 1111.
You will hear one long Beep, then keypad will transmit away arm signal to alarm panel for one second.
Notice: if you hear two Beep Beep, it means wrong password.
4,Stay Arm
Enter[*+password + Stay Arm button]→ 4-digits password, the default password is 1111.
You will hear one long Beep, then keypad will transmit stay arm signal to alarm panel for one second.
Notice: if you hear two Beep Beep, it means wrong password.
5,Disarm
Enter[*+password + Disarm button]→ 4-digits password, the default password is 1111.
You will hear one long Beep, then keypad will transmit disarm signal to alarm panel for one second.
Notice: if you hear two Beep Beep, it means wrong password.
6,Change Password(default password is “1111”)
Enter[*+password+9+NEW password+#]→old password & new password should be 4-digits.
You will hear one long Beep, which means operation success.
Notice: if you hear two Beep Beep, it means wrong password.
If you forgot password, you could change it by default password 1111, meanwhile keypad must light with
power.
7,Anti-tamper
If anti-tamper button is triggered, you will hear one long Beep, then keypad will transmit emergency/panic signal to alarm panel for one second.
8,Low Battery Level Indication
Press * to start keypad, if battery’s voltage less than 3.3V, keypad will flash twice quickly, which means low battery level.
9,Learning Door Bell
When alarm panel is under learning door bell status, press doorbell button to transmit signal to alarm panel, you will see corresponding success feedback on the alarm panel.(detailed operation please refer to alarm panel’s user manual)
10,Door Bell Operation
Press door bell button once, you will hear one long Beep, then keypad will transmit this signal to alarm panel, panel will sound Ding Dong.
11,Learning RFID tag
Enter[*+password+8+#]into learning status→ 4-digits password, the default password is 1111. Then swiping RFID tag, you will hear one long beep which means learning success. It will turn into Standby status after 5 seconds.
Notice:after enter learning status, you could swipe RFID tag continuously to learn 60 tags in maximum. If tag had already been learned to alarm panel before, it will sound Beep, Beep, Beep, Beep, Beep.
12,Delete RFID tag
Enter [*+password+7+#], you will hear one long Beep which means delete all tags successfully.
13,Away Arm by RFID tag
Press * button,keypad light, swipe tag once, you will hear one long Beep. Then it will send away arm signal to alarm panel.
14,Disarm by RFID tag
Press * button,keypad light, swipe tag twice, you will hear two Beep Beep. Then it will send disarm signal to alarm panel.
