Fanshine Home Automation Alarm Emergency Panic Button Detector

Fanshine Home Automation Alarm Emergency Panic Button Detector

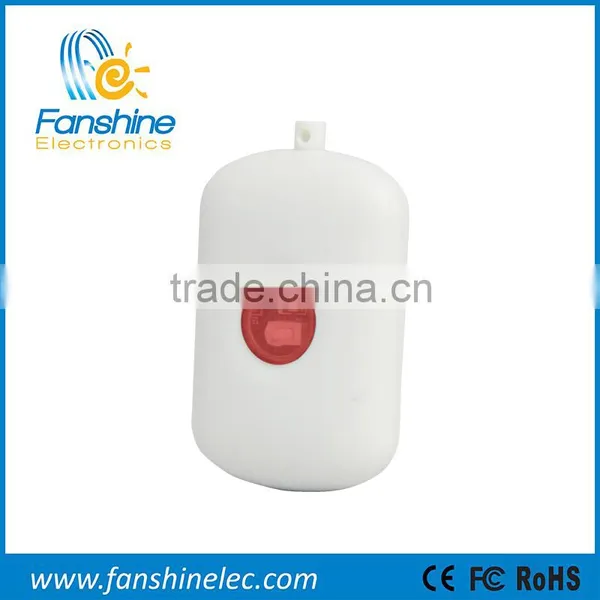

PRODUCT INTRODUCTION

This product is emergency button detector. Hereinafter be called the detector. It has emergency alarm function. Once the emergency incident occurs, the detector will be triggered to transmit the signal to the host by the wireless way so as to achieve the effect of emergency call. This product is suitable for all the places where the security protection is needed, such as residential areas, companies, shopping malls, hospitals, banks, guard post etc.

MAIN FEATURE

Double alarm types, button type and pull type Compact appearance, can hang it up

Anti false alarm design

Zero standby power consumption Low-battery detection

MCU coding, compatible with 2262/1527 Anti RFI(20V/m-1GHz)

SMT process

TECHNICAL SPECIFICATION

Operating voltage: 3V (1*CR2032 button cell)

Standby current: 0uA

Alarm current: ≤25mA

Alarm indicator : red LED

Low-battery indicator: rapid flash of red LED Coding mode: MCU coding with 2262/1527 optional

Transmitting frequency: 315M or 433M Transmitting distance:50m-100m(open area) Alarm type: button type and pull type Temp.: -10℃~+50℃

Humidity: < 80%RH (no congelation)

Dimension:36*58*15mm

ALARM SETTING

1)Set the jumper according to the alarm host (refer to jumper setting).

2)Set the host at the learning mode.Press and hold the alarm button for 2 sec. to let the host learn.

3 )Function test follows:

a. Press and hold the alarm button to keep red

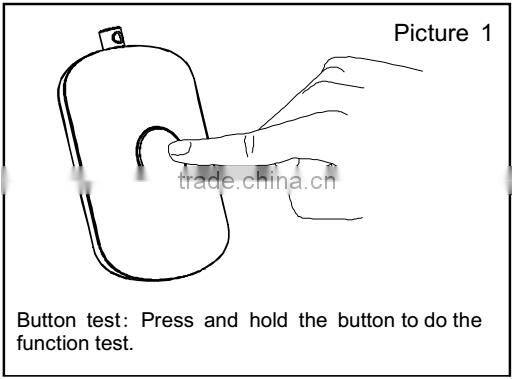

Button test: Press and hold the button to do the function test.

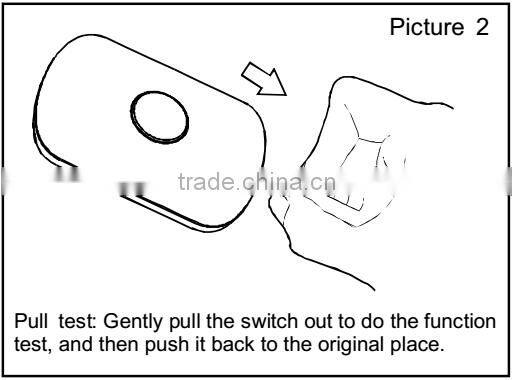

Pull test: Gently pull the switch out to do the function test, and then push it back to the original place.

LED on, and the host responds, which indicates successful setting (refer to picture 1).

b. Remove the pull switch to keep red LED on, and the host responds. After red LED flashes for 5 sec., the alarm signal will be transmitted once again.(refer to picture 2).

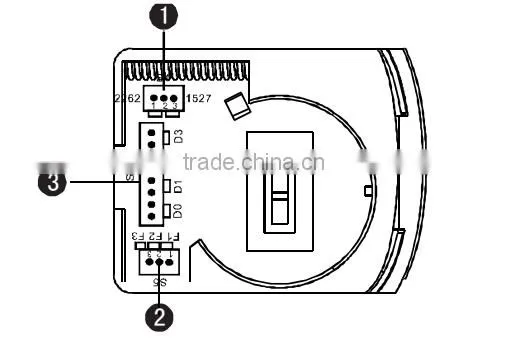

JUMPER SETTING FIGURE

1 Code pattern jumper

2 Oscillation resistance jumper

3 Data code jumper
