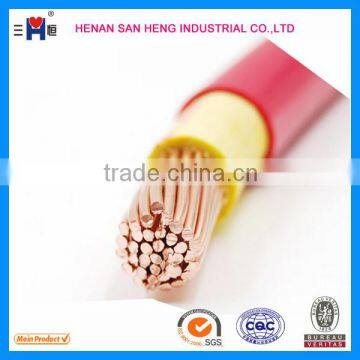

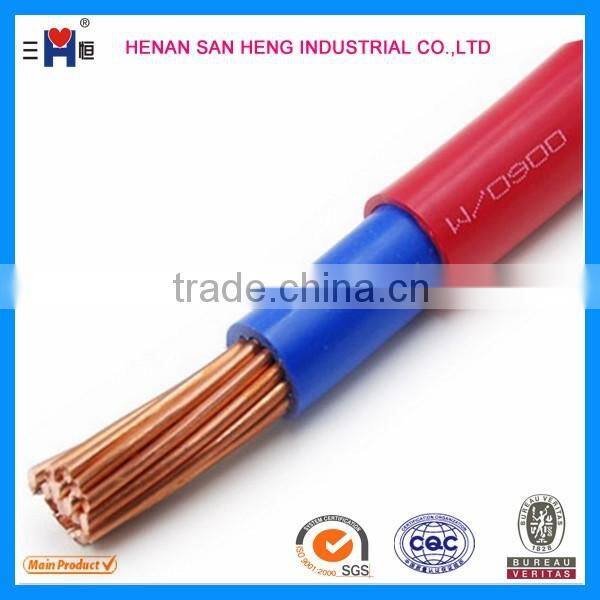

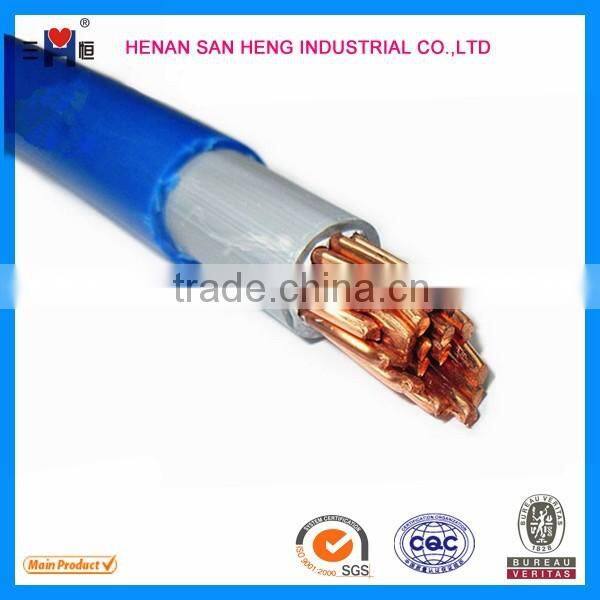

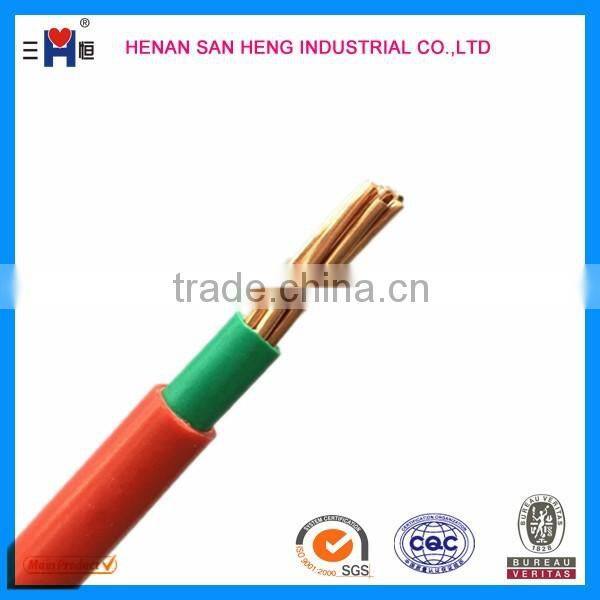

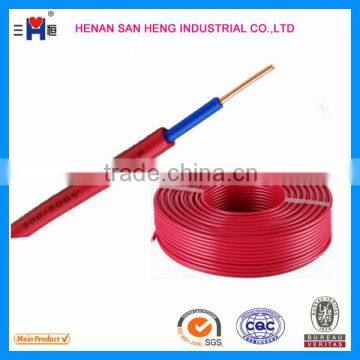

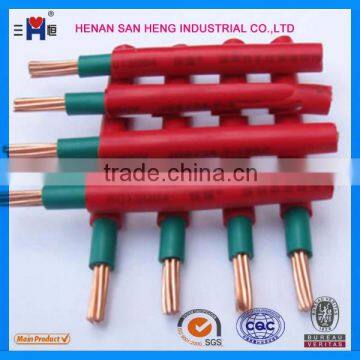

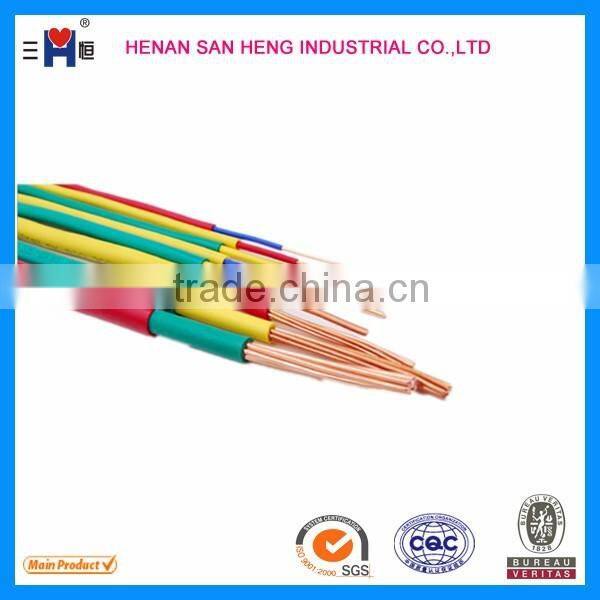

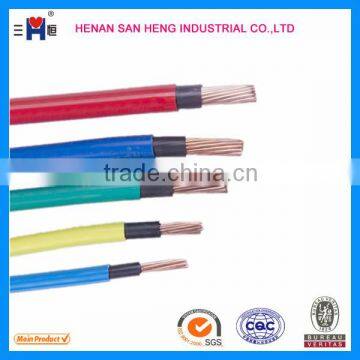

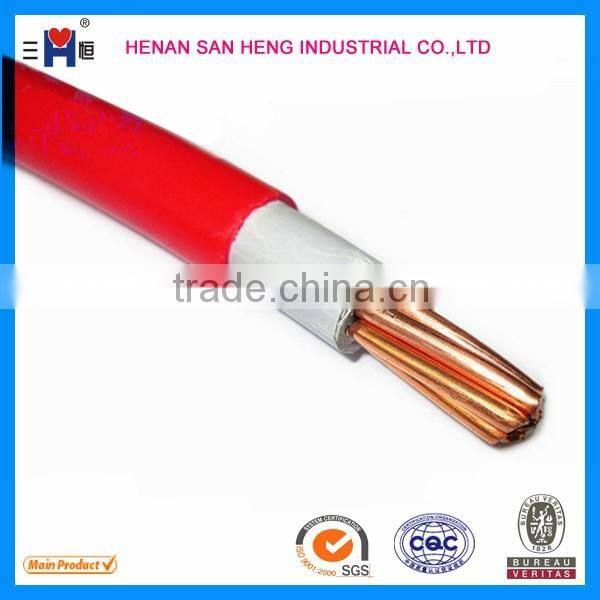

Manufacturers PVC jacket and insualte fire resistant stranded electrical copper wire
Feature
1.Electric wire and cable 16mm
2.High Quality Electric Wire Cable
3.CCC Certification
Parameter
1.Voltage Uo/U 300/500V 450/750V
2.Max. Permissible Continuous Operation Temperature of The Conductor: 70°C
3.The Ambient Temperature Under Installation Should Not Below 0°C
4.Impedance (ohms): 100±2ohm
Specification
Type: BV BVV BVR RV RVV
Strandard: BS EN 50525-2-31
Voltage: 300/500V 450/750V
Specification: 1x0.5mm2,1x0.75mm2 etc
Length: 100M 200M 300M 500M
Application
Electric wire and cable 16mm is suitable for household electrical appliances, small electric power tools, instruments and apparatuses and lighting devices, AC rated voltage up to and including 300/500V 450/700V, which is used for connecting power line.
Copper Wire Conductor: Copper/Aluminum
Insulation: PVC
Apply voltage: 300/500V 450/750V
Ambient Temperature: Above 0°C
Operation temperature: For PVC insulated wire, Operating temperature should not exceed 70°C except for Type 08.
Type 08 will allow 105°C.
| Type | Designation | Core No. | Sectional area (mm²) |
Rated Voltaged (V) |
| 60227IEC01 BV |
General purpose single core hard conductor wire without sheath |
1 | 1.5~400 | 450/750 |
| BLV | Al conductor PVC insulated wire | 1 | 2.5~400 | 450/750 |
| BVR | Cu conductor PVC insulated soft cable | 1 | 2.5~70 | 450/750 |
| BVV | Light type PVC sheath wire | 2~5 | 1.5~35 | 300/500 |
| BVV | Cu conductor PVC and sheath circular cable | 1 | 0.75~10 | 300/500 |
| BLVV | Al conductor PVC and sheath circular cable | 1 | 2.5~10 | 300/500 |
Type BVR 450/750V copper conductor PVC insulated flexible wire
| Nominal Cross- Section area mm² |
Calculation Outer Diameter mm |
Max.d.c,resistance at 20°C(Copper-cored) Ω/km |
Mini.insulation Resistance at 70°C (Copper-cored) MΩ.km |
Product approximate weight kg/km |
|
| Copper-cored | Aluminum-cored | ||||
| 1x1.5 | 2.7 | 12.2 | 0.011 | 19.5 | |
| 1x1.5 | 2.9 | 12.1 | 0.010 | 19.5 | |
| 1x2.5 | 3.3 | 7.41 | 0.010 | 30.8 | 15.4 |
| 1x2.5 | 3.6 | 7.41 | 0.010 | 31.5 | |
| 1x4 | 3.8 | 4.61 | 0.0085 | 45.6 | 21.0 |
| 1x4 | 4.1 | 4.61 | 0.0077 | 45.6 | |
| 1x6 | 4.3 | 3.08 | 0.0070 | 65.3 | 28.2 |
| 1x6 | 4.7 | 3.08 | 0.0065 | 65.3 | |
| 1x10 | 6.0 | 1.83 | 0.0065 | 111 | 49.0 |
| 1x16 | 7.1 | 1.15 | 0.000 | 169 | 69 |
| 1x25 | 8.8 | 0.727 | 0.000 | 265 | 108 |
| 1x35 | 9.9 | 0.524 | 0.0040 | 359 | 140 |
| 1x50 | 11.1 | 0.387 | 0.0045 | 485 | 190 |
| 1x70 | 13.5 | 0.268 | 0.0035 | 685 | 258 |
| 1x95 | 15.8 | 0.193 | 0.0035 | 946 | 354 |
| 1x120 | 17.4 | 0.153 | 0.0032 | 1181 | 433 |
| 1x150 | 19.4 | 0.124 | 0.0032 | 1453 | 534 |
| 1x185 | 21.6 | 0.0991 | 0.0032 | 1821 | 668 |
| 1x240 | 24.6 | 0.0754 | 0.0032 | 2383 | 869 |
| 1x300 | 27.5 | 0.0601 | 0.0030 | 2983 | 1082 |
| 1x400 | 30.8 | 0.0470 | 0.0028 | 3800 | 1369 |
Packaging Detail: soft packing,100m/roll or as your requirement
Delivery Detail: Depending on your quantity ,should be negotiated
Our service:
Inquiry response: Your inquiries will be reply in 24hours.
Sample support: free samples are available in 3~5 days.
Delivery time: Your shipment will be loaded in 15~25days,depends on quantity.
Payment term: T/T,L/C, Western Union.
OEM is welcomed.
Note:
All the listed price is only for references, for latest price please contact us directly
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables (ABC cable), PVC insulated wires ( building cables), control cables, rubber cables, bare conductors ( ACSR, AAC, AAAC, BCC), welding cables, , and other related products.

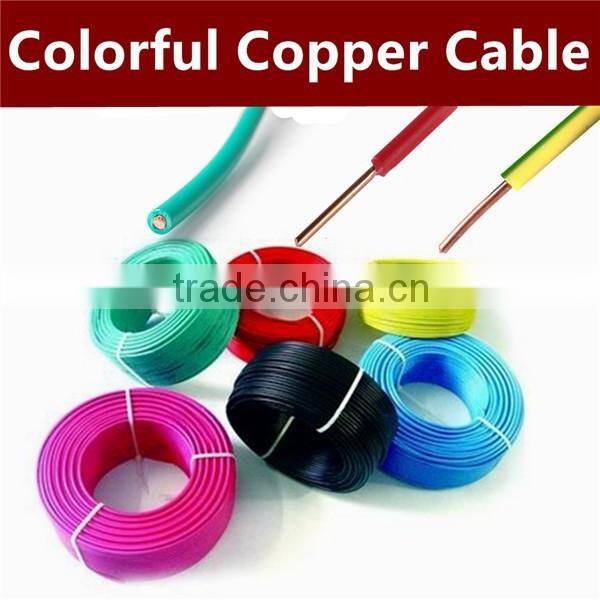

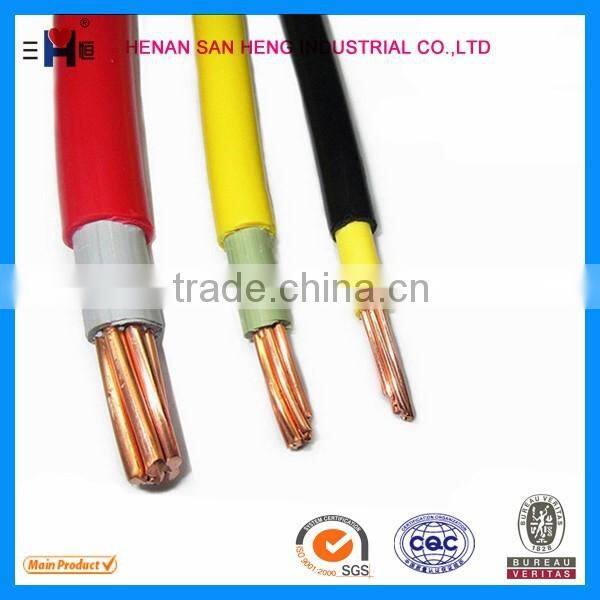

Cable Color and PACKAGE
1.Q:Are you a factory or trading company?
A:We are a 20 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained BV,SGS, CCC,ISO certification.
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
