PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire

PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire thumbnail-1
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire thumbnail-2
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire thumbnail-3
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire thumbnail-4
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire thumbnail-5
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire thumbnail-6
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire photo-1
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire photo-2
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire photo-3
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire photo-4
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire photo-5
PVC Insulation Material and Solid and Stranded Conductor Type H07V-R Cable Wire photo-6
US$ 0.076 - 3 MOQ: 3000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
SAN HENG, sanheng
Model Number:
H07V-R cable wire, H07V-R cable wire BV BLV RBV for BV Electric Cable
Contact Supplier Request Quote Chat Now
Henan Sanheng Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
H07V-R cable wire Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name SAN HENG, sanheng
Model Number H07V-R cable wire, H07V-R cable wire BV BLV RBV for BV Electric Cable
Insulation Material Other, PVC, PVC
Type Low Voltage
Application Other, Construction, Overhead
Conductor Material Other, Copper, Copper
Jacket PVC

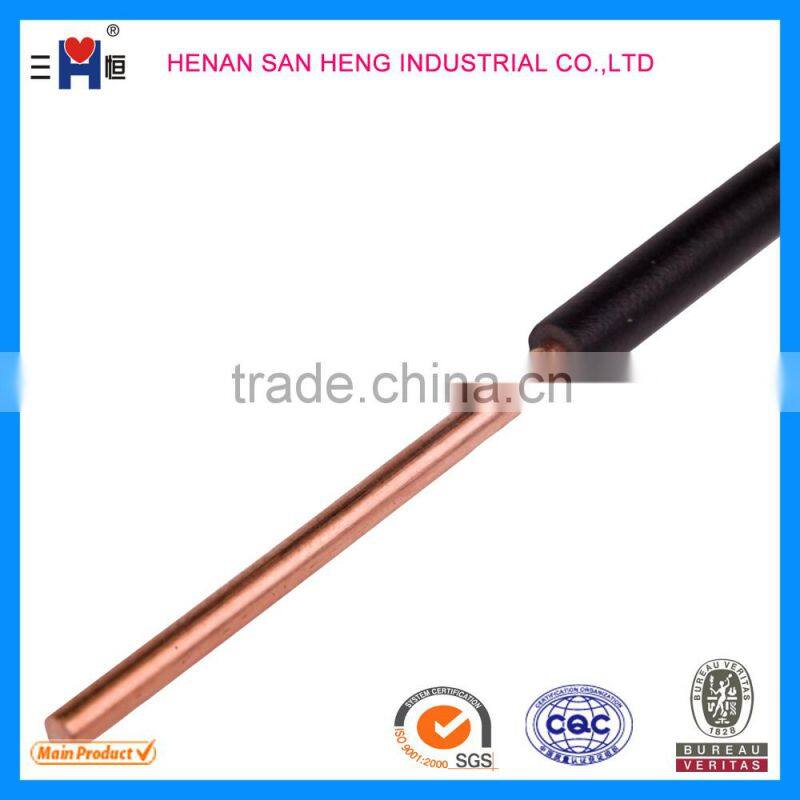

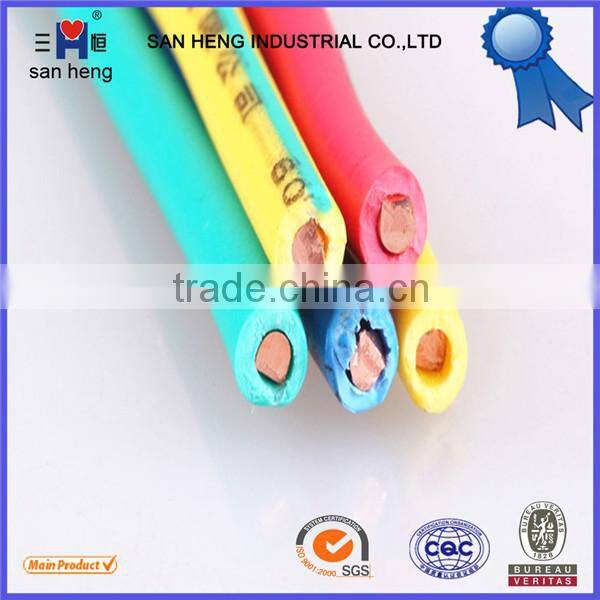

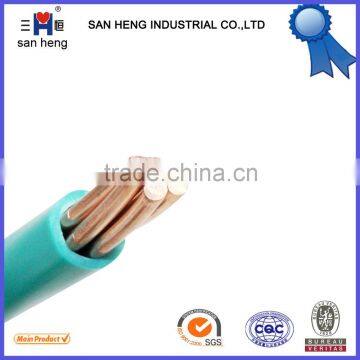

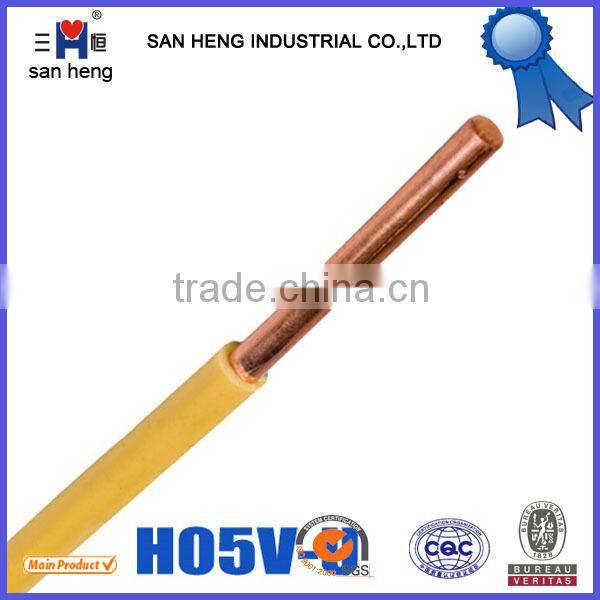

  PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire

PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire



  solid copper conductor pvc insulated single core BV cable  pvc insulated cable



1 H07V-R cable wireStandard



GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997,  IEC227

 PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire





2 H07V-R cable wire Voltages U0/U:



450/750V300/500V300/300V.(600/1000V also available)



Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.



Impedance (ohms): 100±2ohm

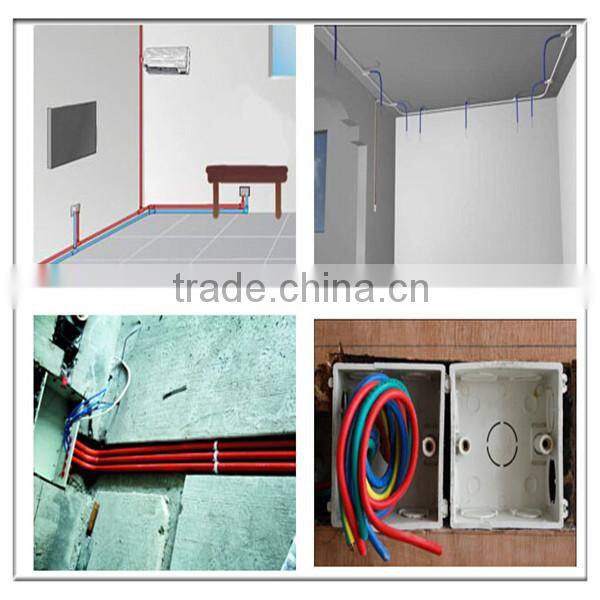

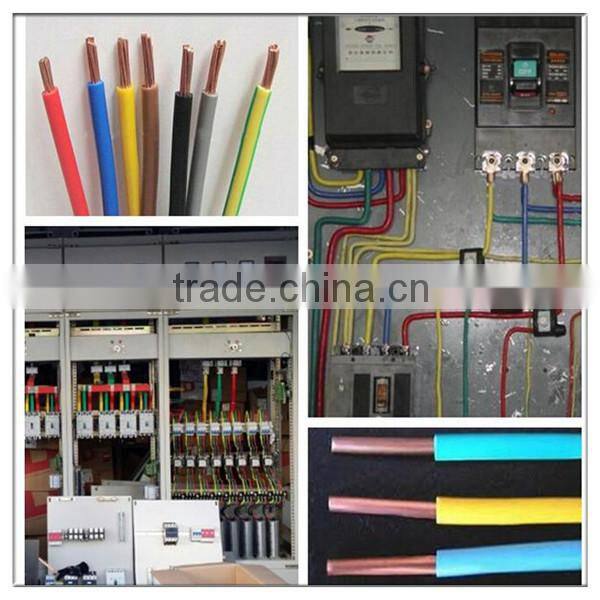

3  H07V-R cable wire Application



The products is suitable for use in power installations, fixed wiring or flexible



connections for electrical appliances like lighting, electronic equipment, instrument



and communication equipment with rated voltage 450/750V or less

PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wirePVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire



4 H07V-R cable wire Model and Name

Model Name
BV Copper core PVC insulation power line
BLV Aluminium core PVC insulation power line
BVR Copper core PVC insulation flexible power line
BVV Copper core PVC insulation PVC sheath round power line
BVVB Copper core PVC insulation PVC sheath parallel power line
BLVVB Aluminium core PVC insulation PVC sheath parallel power line
BV-90 Single-core solid conductor drawn non-sheathed cable for intemal wiring is 90°c



5.  H07V-R cable wire Specification,Size and Technical Date

Standard

Nominal section (mm2)

Core structure no./dia.(mm)

Insulation nominal thickness(mm)

70°c Min. Load Resistance

227IEC01

0.75

1/0.97

PVC 0.6

0.012



0.75

7/0.37

PVC 0.6

0.012



1

1/1.13

PVC 0.6

0.011



1

7/0.43

PVC 0.6

0.011



1.5

1/1.38

PVC 0.7

0.011



1.5

7/0.52

PVC 0.7

0.01



2.5

1/1.78

PVC 0.8

0.01



2.5

7/0.68

PVC 0.8

0.009



4

1/2.25

PVC 0.8

0.0085



4

7/0.85

PVC 0.8

0.0077



6

1/2.76

PVC 0.8

0.007



6

7/1.04

PVC 0.8

0.0065



10

7/1.35

PVC 1.0

0.0065



16

7/1.7

PVC 1.0

0.005



25

7/2.14

PVC 1.2

0.005



35

7/2.52

PVC 1.2

0.004



50

19/1.78

PVC 1.4

0.0045



70

19/2.14

PVC 1.4

0.0035



95

19/2.52

PVC 1.6

0.0035



6. H07V-R cable wire Structure of the cable



1. Nominal Voltage: 450/750V

2. Standard applied: IEC 60227, BS 6004, VDE 0281, JB/T8734

3. Max. working temperature: 70 °C ,can be 90 °C ,105 °C and 125 °C as per requirement

4. Insulation: PVC,PE,LSOH material

5. Number of cores: 1 core for this type of cable

6. Cross sectional area: 0.05mm2 to 630mm2 available

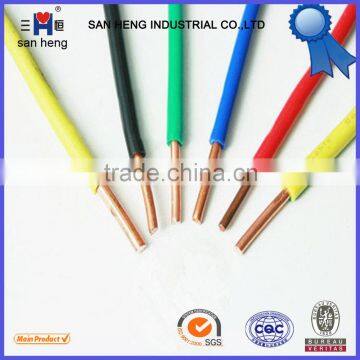

7. Cable color: red,black,green,yellow,blue or any other color available

PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wirePVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wirePVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire

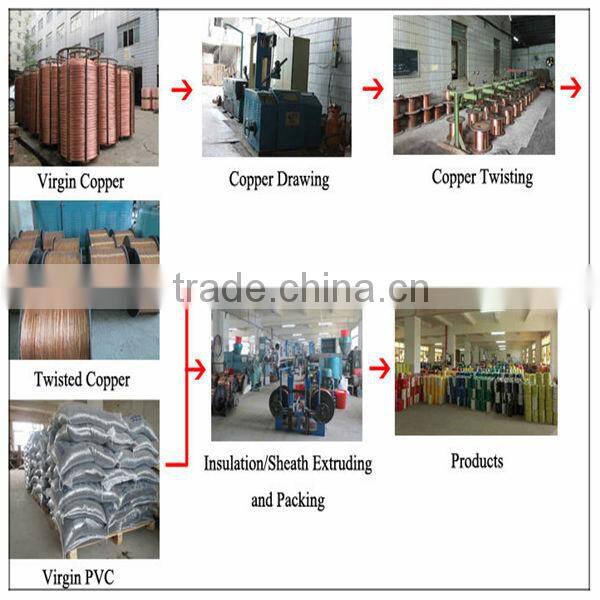

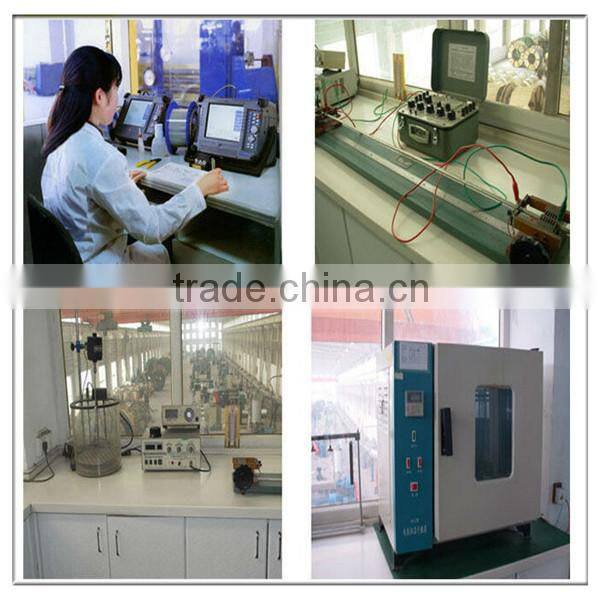

7. H07V-R cable wire Product produce process and Testing Picture

PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire





We have various advance product lines and equipments for testing and measurement use. We have set up a quality guarantee system according to 3C(China Compulsory certification) quality authentication, ISO 9001:2000, GB/T 19001-2000 standards. All of our products strictly comply with industrial, national and international standards. PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire

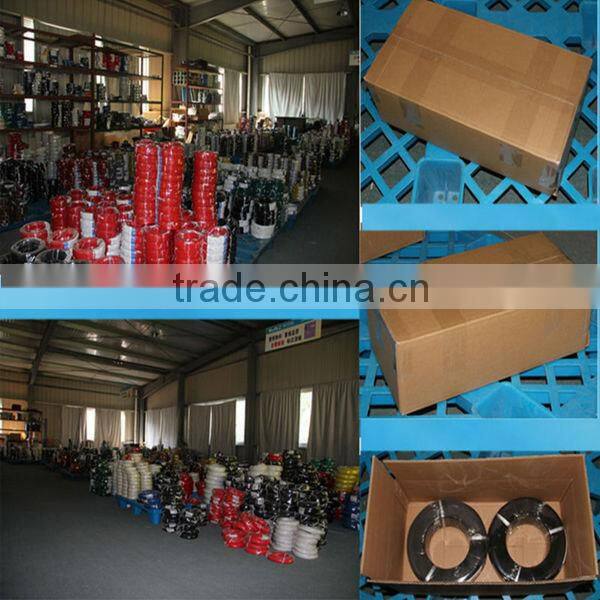

8. H07V-R cable wire Packaging Picture







Packaging Detail: 100M/roll, 300M/wooden reel, 500M/wooden reel or as per customer's requirement.

Delivery Detail: 5 working days or depends on the actual order quantity

PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire

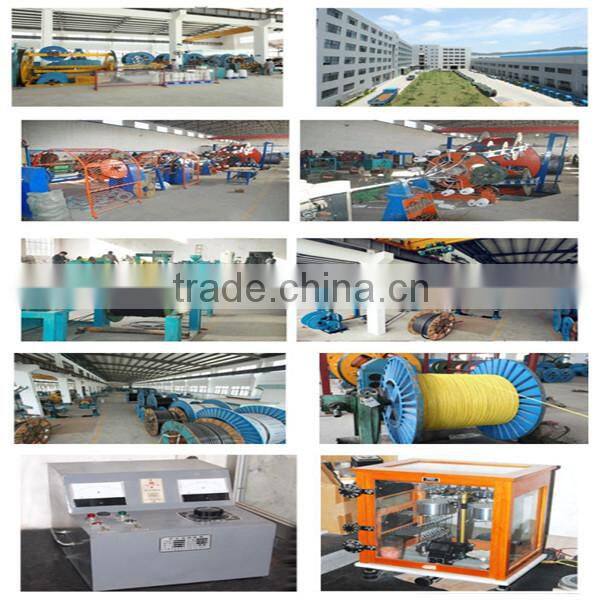

9. H07V-R cable wire Workshop Picture



Established in the 2000's, Henan San Heng Industrial Co., Ltd. for those years' unremitting effort and endeavors, we have achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services. PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire



Certifications
 Our products have been repeatedly tested by  National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision &  Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to be Qualified Products. We have got China electical products safety certification and in accordance with the IEC standard.

 PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire











Our Customers

Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime!

Please Kindly Note : We ,San Heng cable co.,ltd with 14 years of manufacturing experience in cables and wires , enjoys a good reputation in providing clients quality products with the best services at home and abroad. Any item is of interest to you,please tell us the speicifications,we will provide you with competitive price and detailed information at the earliest time

 we can supply all kinds of cable with reliable quality and competitive price. we are at your sevice !!!



SINCERELY EXPECTING YOUR INQUIRY!!

PVC Insulation Material and Solid and stranded Conductor Type H07V-R cable wire



FAQ



1.Q:Are you a factory or trading company?

A:We are a 14 years factory with more than 60 engineers.and have gained the supplier assessment.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?

A: We are honored to offer you samples according your inquiry.

4.Q:How does your factory do regarding quality control?

A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.

Our factory has gained BV,SGS, CCC,ISO certification.
