Home > Electrical & Electronics > Circuit Board > PCBA > Custom Wireless Charger Pcba Widely Using High Quality Electronic Pcba

Custom Wireless Charger Pcba Widely Using High Quality Electronic Pcba

US$ 3 - 50 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Hubei, China

Brand Name:

ODM

Model Number:

PCB Assembly

Contact Supplier Request Quote Chat Now

Wuhan HSCC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hubei, China

Brand Name ODM

Model Number PCB Assembly

Base Material FR-4 Epoxy Resin

Copper Thickness 1oz

Board Thickness 1.0mm

Min. Hole Size 0.20mm

Min. Line Width 3mi

Min. Line Spacing 3 Mil (0.075 Mm)

Surface Finishing HASL

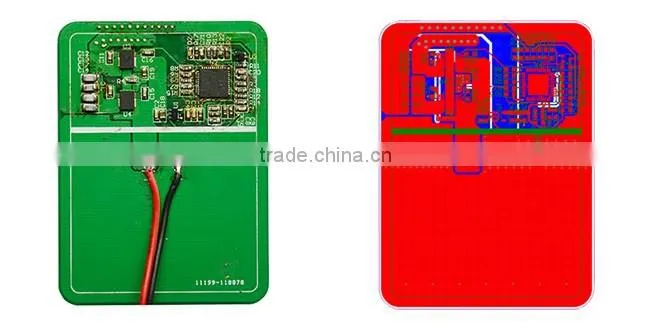

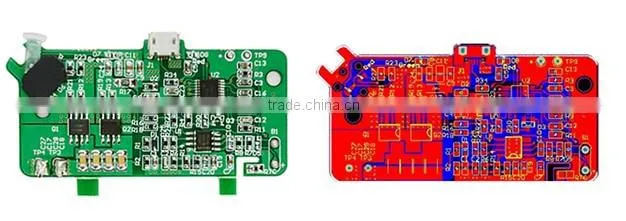

Wireless charger PCB custom

Wireless charging PCB mainly customize the wireless charging module according to the different needs of customers on the product size or power. Our wireless charging PCB internally intergrade the oscillation circuit, shaping circuit and detection circuit, frequency interference suppression circuit, wireless transmitting tube. The input voltage can be controlled in 5 V - 19 V, output power control in 5W - 20 W.

Technical specification:

Input:DC5V-19V Can be debug

Power:5W-20W

Output:5V / 1A

Charging distance:1mm-30mm

Charging efficiency:73%

Working life:≥ 8,000 hrs

Charging program:Huagontech design

Frequency:150-210Khz

Custom PCB size:≥20*20*1mm (Depend on your needs)

Charging for:Compatible Qi standard

Custom reading:

1. We are welcome you to customize the charging module , before the working we need to have a full comunication for the details ,if you have other requirements pls contact us any time.

2. About the comunication we need to know is the zise about the PCB+Coil , the charging power and current you needs ,More better we could have a sample or the Stp/2D Map data . The most ferfect information will make the perfect custom module .

3. The charging program we can do :TI (high quality) , Suplus/IDT (middle quality) , huawei (China made ) , they are all compatible QI standard wireless charging .

4. Before we start the project , we need to charge the 100% payment for the custom fee , the service include the custom module and later module improvements .

5. A normal custom cycle is 15-20days , Project started--Schematic design work--PCB Proofing and debugging--PCBA function testing, During this time we will let you know all the project going .

6. leading the advanced technology, producing quality product and serving customers heart and soul. We promise to provide you the best quality products and the most sincere services wholeheartedly.

Advantages:

1. competitive price

2. Small order acceptable, more quantity your order, more discount will be offered.

3.Good service, fast delivery, and we are worth being trusted.

4. We can guarantee you will be satisfied with our products.

Shipment:

1.Mass Production: 15-20 days after everything confirmed(based on the order quantity).

2.Usually we delivery by courier, sea or air available, according to your requirement.

Payment:

1.T/T payment or western union big order can accept L/C at sight.

2.Price term: FOB Ningbo/Shanghai, CIF your pointer port.

3.30% T/T advance and balance 70% before shipping payment.
