1 Coil TI Solution Wireless Charger Pcba Customized qi Wireless Charger Model for Furniture
US$ 1.5 - 10
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ODM
Model Number:
A11
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Type and Mobile Phone Use qi and Powermat Standard Wireless Charger for Samsung Galaxy s6 s7US$ 18.20 - 18.20MOQ: 1000 Pieces -
Univeral uk Plug Socket Multi Usb Port Wireless Charging Station for Samsung s7US$ 15 - 25MOQ: 10 Pieces
-
Made in China Cheapest Fashional Public Charging Station 3 Coil Wireless Charger for BlackberryUS$ 5.80 - 5.80MOQ: 1000 Pieces
-
Hot Selling 8 Usb Port Charging Dock Multi Port Wireless ChargerUS$ 15 - 25MOQ: 10 Pieces
-
2016 New Cheapest Wireless Receiver Card Wireless Charger Receiver for All Android Smart Phone Quality ChoiceUS$ 3.00 - 3.00MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
ODM
Model Number
A11
Base Material
Copper Base
Copper Thickness
1oz
Board Thickness
1.0mm
Min. Hole Size
0.20mm
Min. Line Width
3mi
Min. Line Spacing
0.003"
Surface Finishing
Lead

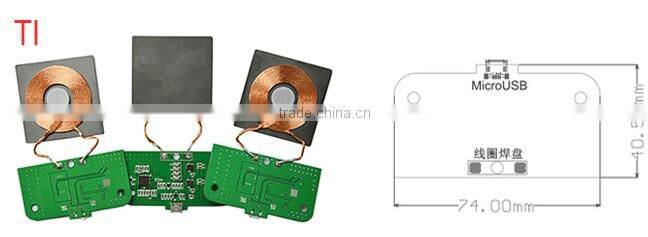

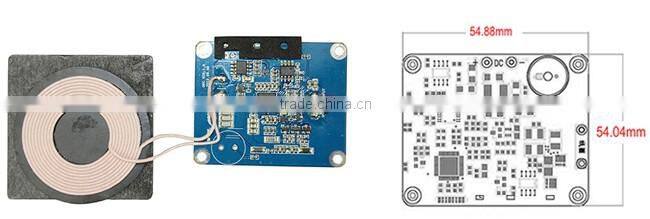

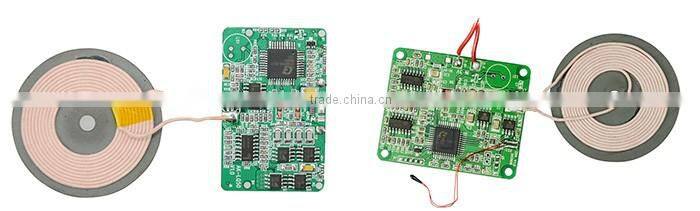

One coil wireless charger A11 program
A11 wireless charging solution: is based on a qi wireless charging standard rechargeable architecture. Its main feature is launch motherboards’ using of small power supply system 5V1.5A.
It can achieve energy transfer through the receiving end of a single-layer single- coil. It is currently the most popular wireless charging wireless charging module in daily life. The advantages : the charging efficiency can reach 68% -73 %, less heat motherboard , the depth of the product size can be customized, stable charging efficiency , and so on. Disadvantages: charging area is small, launch and acceptance must be aligned . Since the program mature technology, many inferior products flood in the market.
A11 wireless charging scheme is mainly applied : Mobile wireless charging, such as Samsung Phone, Google Nexus 4/5/7, Noika Phone, Iphone4/5/5S . digital electronic products wireless charging such as electric shavers, electric toothbrushes, LED flashlight, electronic waterproof lights, waterproof phone, adult supplies, electronic candle, maglev products) .
Technical specification:
Input:DC5V
Power:5W
Output:800-1000mA
Charging distance:2-10mm
Charging efficiency:73%
Working life:≥ 8,000 hrs
Charging program:TI/Sunpluse/IDT/Huawei
Frequency:100-200Khz
Custom PCB size:≥20*20*1mm (Depend on your needs)
Charging time:2-4 hours (according battery capacity)
Custom reading:
1. We are welcome you to customize the charging module , before the working we need to have a full comunication for the details ,if you have other requirements pls contact us any time.
2. About the comunication we need to know what your want the zise about the PCB+Coil made, the charging power and current you needs ,More better we could have a sample or the Stp/2D Map data . The most ferfect information will make the perfect custom module .
3. The charging program we can do :TI (high quality) , Suplus/IDT (middle quality) , huawei (China made ) , they are all compatible QI standard wireless charging .
4. Before we start the project , we need to charge the 100% payment for the custom fee , the service include the custom module and later module improvements .
5. A normal custom cycle is 15-20days , Project started--Schematic design work--PCB Proofing and debugging--PCBA function testing, During this time we will let you know all the project going .
6. leading the advanced technology, producing quality product and serving customers heart and soul. We promise to provide you the best quality products and the most sincere services wholeheartedly.
Advantages:
1. competitive price
2. Small order acceptable, more quantity your order, more discount will be offered.
3.Good service, fast delivery, and we are worth being trusted.
4. We can guarantee you will be satisfied with our products.
Shipment:
1.Mass Production: 15-20 days after everything confirmed(based on the order quantity).
2.Usually we delivery by courier, sea or air available, according to your requirement.
Payment:
1.T/T payment or western union big order can accept L/C at sight.
2.Price term: FOB Ningbo/Shanghai, CIF your pointer port.
3.30% T/T advance and balance 70% before shipping payment.
If you have any questions, please feel free to let me know.
