Design Weather Station

Specifications

design weather station
1. Indoor and Outdoor Temperature
2. Date and Time Display
3.OEM,Strong design ability
4. 18 Patents



design weather station



9 buttons of function: MODE, MAX/MIN, ALERT, CHANNEL, ALARM ON/OFF, SNOOZE/ LIGHT, +,  -

DCF version Radio controlled clock.

 Display of indoor temperature, humidity and outdoor temperature.

 Maximum three selectable RF channels with wireless Thermo Sensor

Choice for temperature format °C/°F;

Max and Min temperature memory.

Alert for indoor and outdoor temperature

The trend of indicator for outdoor temperature.

Time display format choice: 12/24 HR

 Two alarms

Low battery indicator for main station and for  RF remote sensor.

Seven languages of week display: English, German, French, Italian, Spain, Dutch, Danish.

Weather Forecast (according to the change of air pressure)

Temperature measuring Range: Indoor 0 ~ 50°C, Outdoor 50 ~ 70°C; Temperature resolution 0.1°C;Lasting time:8 S.

Humidity Measuring Range: 20 ~ 99%; Humidity resolution: 1%, lasting time: 8 S.

LCD size: 74*59mm

Main station size: 170*82*23mm, remote sensor size:128*55*20mm

Battery:

Main station: AAA *3pcs(Adapter available , not including),

Remote sensor: AAA *2pcs



 Specification:

Item			Unit	Min	Typ.	Max
Supply Voltage			V	1.3	1.5	1.6
Static Current			uA	---	30	50
Temperature measuring range		INDOOR	°C	0	---	50
		OUTDOOR	°C	-50	---	70
Humidity measuring range		INDOOR	Rh	20%		99%
(Temperature accuracy)	A	0°C-40°C	°C	-1	---	+1
	B	40°C-50°C	°C	-1.5	---	+1.5
	C	50°C-70°C	°C	-2	---	+2
	D	0°C- -20°C	°C	-1.5	---	+1.5
	E	-20°C- -50°C	°C	-2	---	+2
Temperature Resolution			°C	---	0.1	---
Humidity Resolution			Rh	---	1%	---
Battery life			Year	2	---	---
operation temperature			°C	-10		50

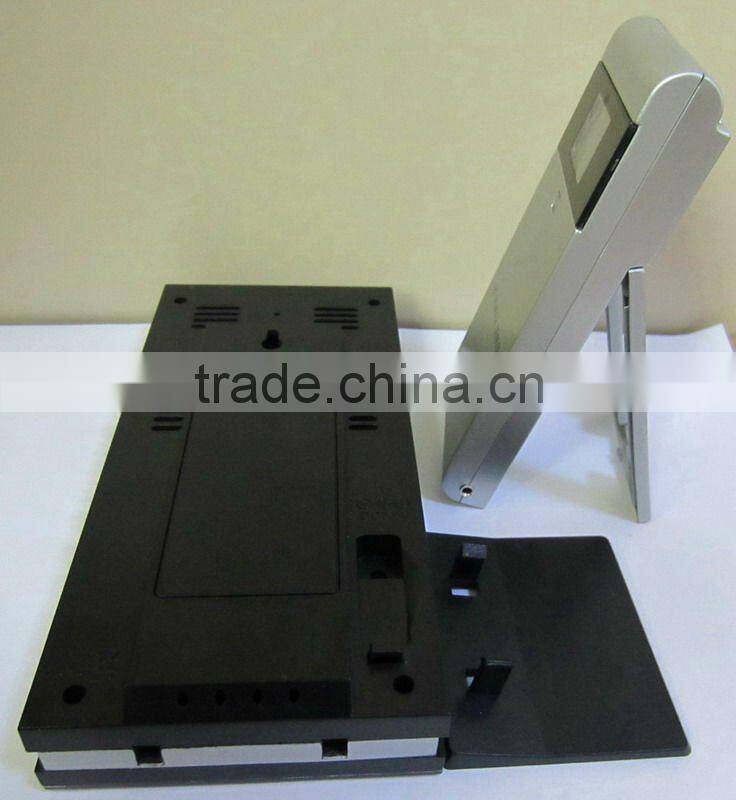

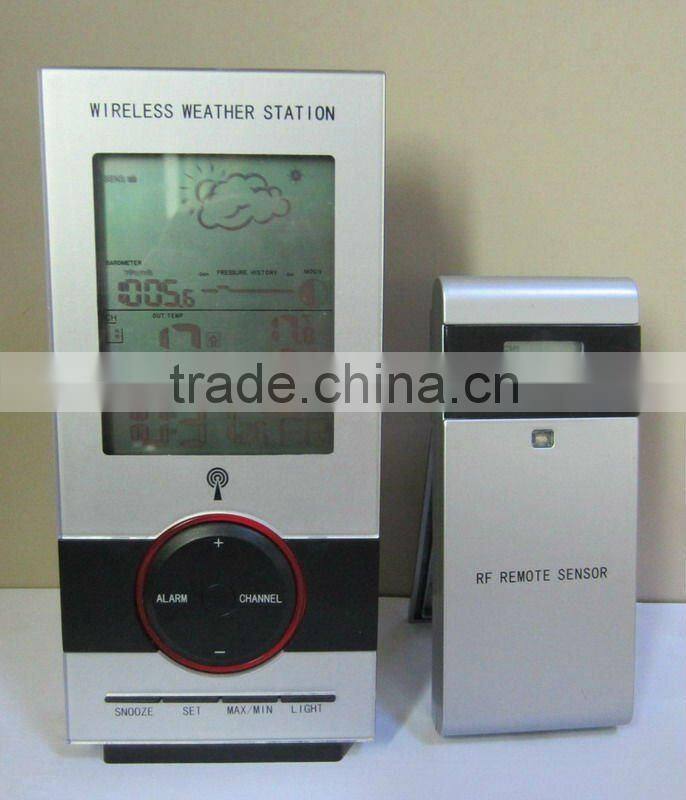

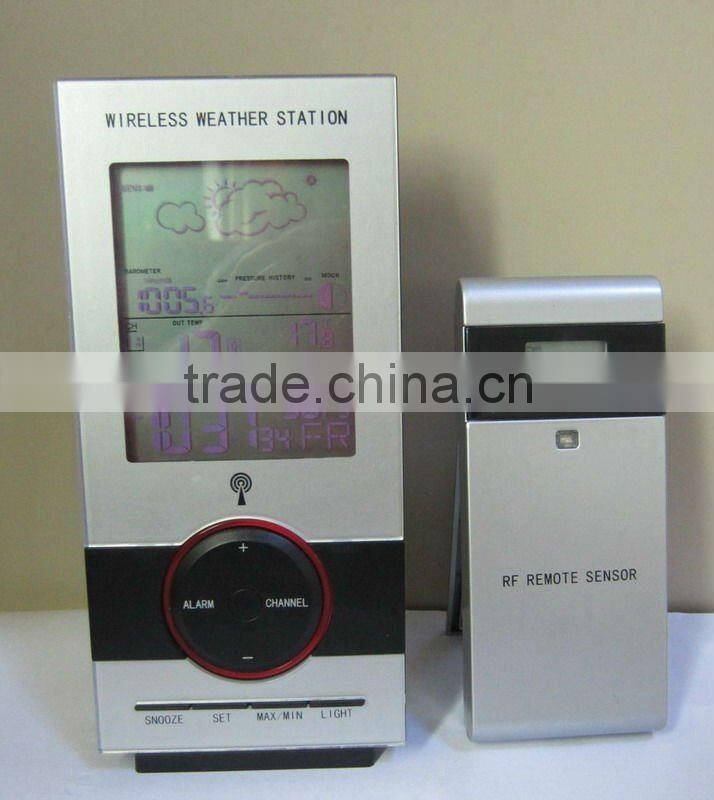

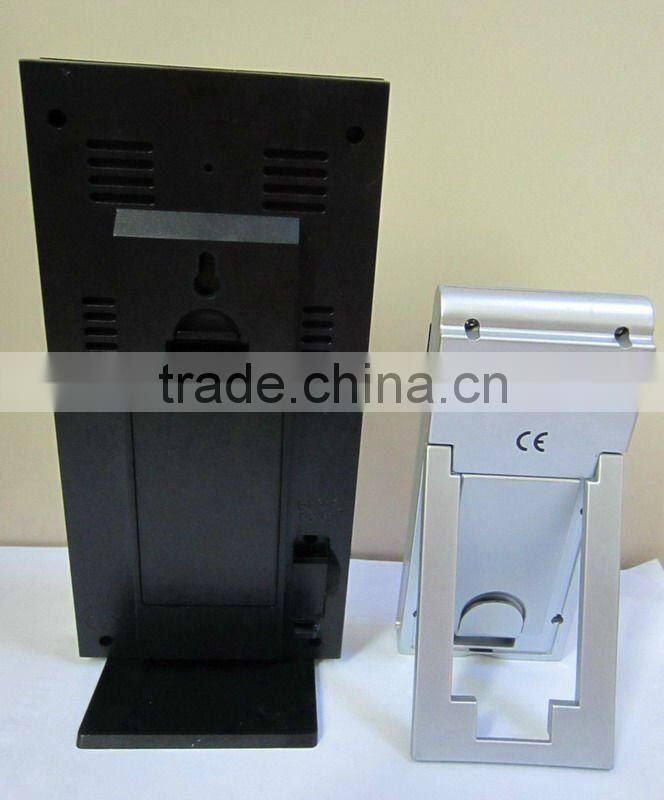

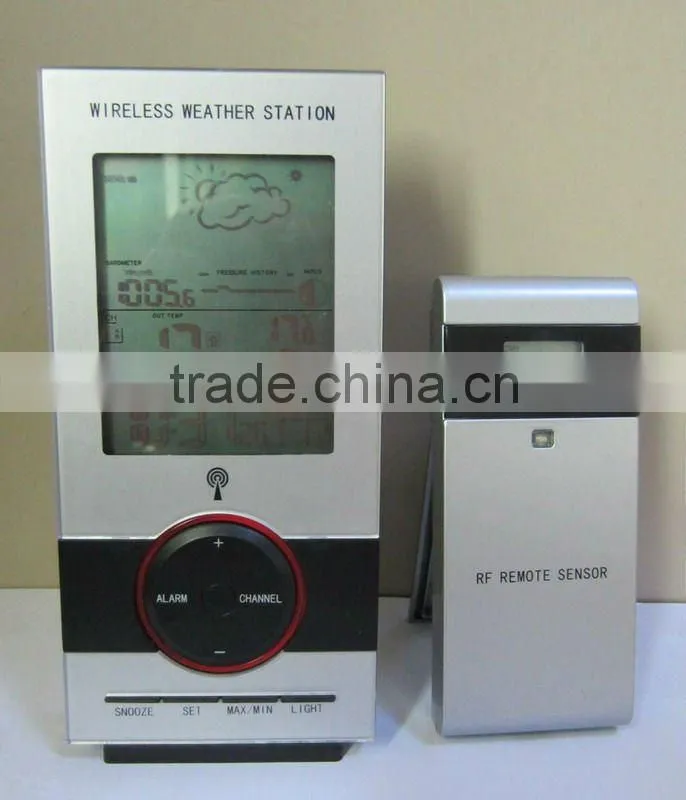

 Detail pictures:

Front:
