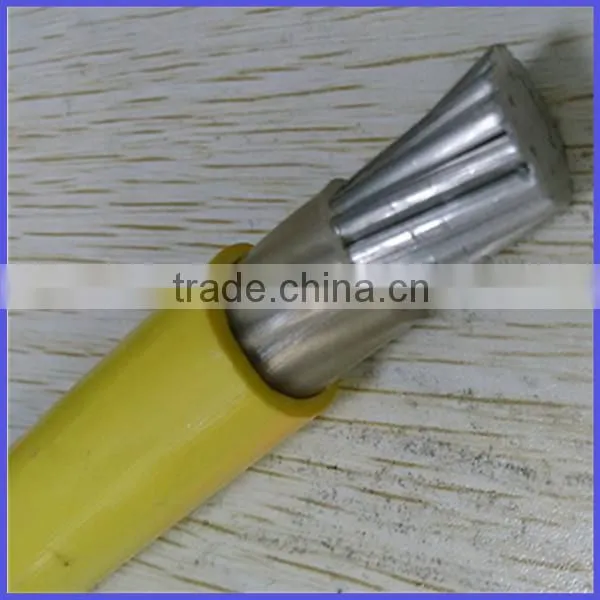

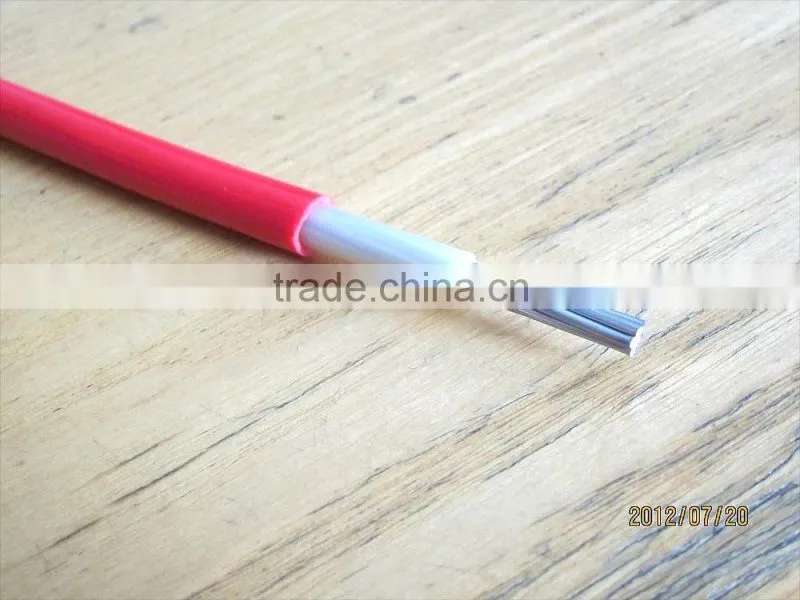

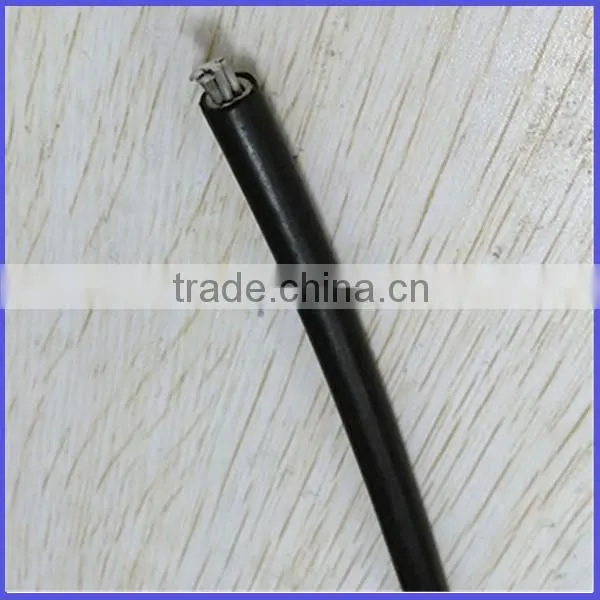

cold resistant direct buried cable undergrounding buried installation directly buried cable
1.Reference standard: JB/T2171-1999
2.Application:suitable for fixed distribution lines and electrical facilities for agricultural using able to be buried underground for A/C rated Voltage 450/750V and below.
3.Product characteristics: Max continuous working temperature of conductor should not exceeds 70 oC. Surrouding temperature of laying should not be less than 0 oC.
4.Specification Size and Technical Data:
Nominal cross section |
0.5-50 mm² |
Core number |
2-10 Core |
The max.outer diameter |
1-36 mm |
5.Model and descriptions:
Model |
Description |
NLYV |
Agricultural buried underground, aluminum core,PE insulated PVC sheathed wire. |
NLYV-H |
Agricultural buried underground, cold resistant, aluminum core, PE insulated , PVC sheathed wire. |
NLYY |
Agricultural buried underground, aluminum core, PE insulated, black PVC sheathed wire. |
NLVV |
Agricultural buried underground, aluminum core, PVC insulated, PVC sheathed wire. |
6.Specification
|
Cross-section (mm²) |
No.dia/core (mm) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Conductor resistance at 20 oC |
4 |
1/2.25 |
0.8 |
1.2 |
7.39 |
6 |
1/2.76 |
0.8 |
1.2 |
4.91 |
10 |
7/1.35 |
1.0 |
1.4 |
3.08 |
16 |
7/1.70 |
1.0 |
1.4 |
1.91 |
25 |
7/2.14 |
1.2 |
1.4 |
1.20 |
35 |
7/2.52 |
1.2 |
1.6 |
0.868 |
50 |
19/1.78 |
1.4 |
1.6 |
0.641 |
70 |
19/2.14 |
1.4 |
1.6 |
0.443 |
95 |
19/2.52 |
1.6 |
2.0 |
0.320 |
We are manufacturer supply wires and cables. accept OEM service, provide free samples.
We have high quality products, best price and best service !
Large quantity and first order could enjoy a pleasant discount. Contact us and get a quotation RIGHT NOW !

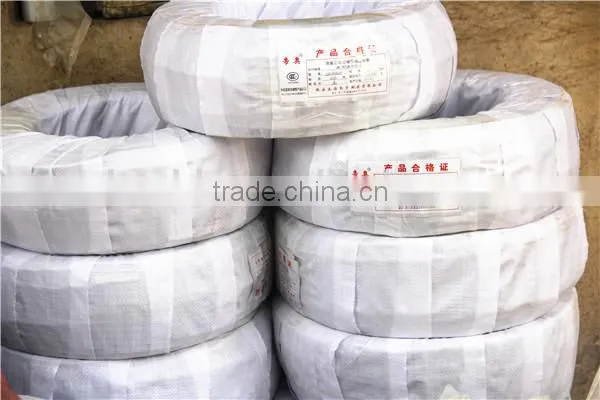

International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
- Established in 2000. Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
- Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
♦ We are one of the biggest manufacturer of cable and wire products in Henan, China with 14 years experience.
♦ We accept OEM. Your own logo and own design are welcomed. We will produce according to your requirments and descriptions.
♦ Your inquiry is welcomed at anytime, and we will give you feedback in 12 hours.
