JKV Triplex Aerial Bunch Twisted Cable

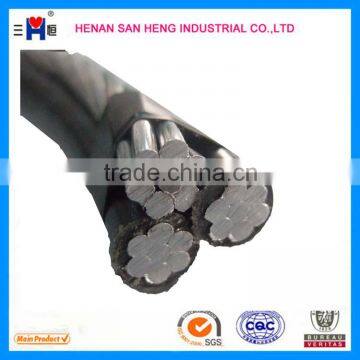

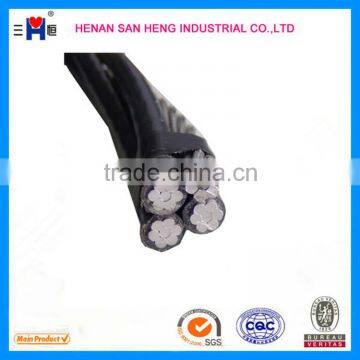

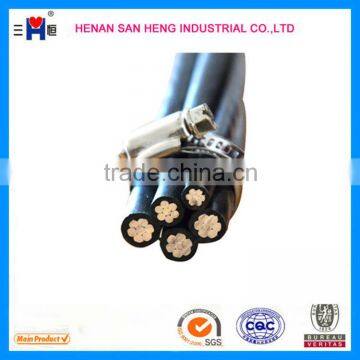

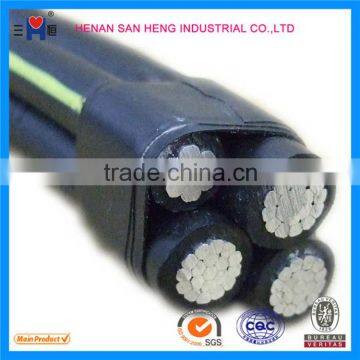

JKV triplex aerial bunch twisted cable
1.This product is applicable to the the exchange rated voltage 0.6/1kv and below overhead power
lines with a lead users line.
2.Working temperature:PVC,PE insulation should not exceed 70 ℃;cross-linked polyethylene
insulation should not exceed 90℃.
3.Laying temperature not lower than -20℃.
4.Specifiation: 1-5 cores,10-300mm2.
5.Application:overhead,air power transmission,pole wiring.
6.Standard: IEC 60502, NFC 33-209, ICEA S -476 , GB 12527-90 …
JKV triplex aerial bunch twisted cable
Nominal cross-section area (mm2) |
Conductor structure |
Insulation material |
Insulation Thickness (mm) |
Approx. Overall Diameter (mm) |
Approx.weight (kg/km) |
Packing meters per drum |
||
Phase (Compacted AL) |
Neutral(bare ACSR) |
|||||||
(No./mm) |
Aluminum (No./mm) |
Steel (No./mm) |
||||||
1x16+16 |
7/1.72 |
6/1.72 |
1/1.72 |
pvc |
1.2 |
12.5 |
121.9 |
250-4000m |
1x25+25 |
7/2.15 |
6/2.15 |
1/2.15 |
|
1.2 |
14.9 |
182.2 |
250-4000 |
1x35+35 |
7/2.54 |
6/2.54 |
1/2.54 |
|
1.4 |
17.5 |
254.7 |
250-3500m |
1x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
23.6 |
382.2 |
250-3000m |
1x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
27.6 |
528.2 |
250-3000m |
2x16+16 |
7/1.72 |
6/1.72 |
1/1.72 |
|
1.2 |
14.2 |
187.6 |
250-4000m |
2x25+25 |
7/2.15 |
6/2.15 |
1/2.15 |
|
1.2 |
16.7 |
273.8 |
250-3500m |
2x35+35 |
7/2.54 |
6/2.54 |
1/2.54 |
|
1.4 |
19.7 |
386.9 |
250-3500m |
2x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
26.1 |
617.2 |
250-3000m |
2x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
30.5 |
850.9 |
250-3500m |
3x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
29.7 |
1024.3 |
250-3000m |
3x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
34.6 |
||



JKV triplex aerial bunch twisted cable
Established in 2000, Henan San Heng Industrial Co., Ltd. with those years' unremitting efforts and endeavors, has achieved sound cooperation and widely compliments from the clients throughout our country and all over the world by superior quality, reasonable price and sincere services.
Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products.
Main Markets: Domestic market, Africa, Eastern Europe, Southeast Asia.
International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
