Iron Separator--waste tire recycling plant

Specifications

1.separate iron objects,high separating accuracy
2.heavy and dense magnetic field,durable
3.easy installlation and maintenance

Specifications

Easy installation and maintenance;
Safety and reliable;
No power consumption besides drive motor;
Good economic performance;

Introduction

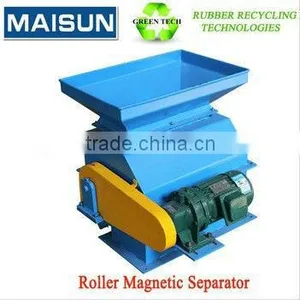

This machine is used to separate iron objects mixed in the rubber granule or powder to improve the purity and quality for the next process. It is mainly composed of motor, speed reducer, feeding hopper, machine frame,roller cylinder,magnetic core and storage bin, etc.





Characteristic







1. Use high performance and attraction of semi circled permanent magnet, heavy and dense magnetic field, durable;



2. It can effectively separate minor steel to improve the rubber quality greatly and effective guarantee of product quality;



3. The feeding hopper and discharging outlet are made of stainless steel to improve the rigidity of the machine, reduce the external influence such as counter-magnetic field, to the magnetic field and stabilize the magnetic field;



4. Easy installation and maintenance,safety and reliable.Besides drive motor there is no power consumption, good economic performance.







Technical Data







Model	MMR-06-2
Production Capacity(Kg/H)	400~500
Cylinder diameter(mm)	Φ200
Roller Speed(rpm)	46 rpm
Purity of Rubber	≥98%
Motor power(KW)	0.75
Dimensions(mm)	760X760X1100
Weight(Kg)	180
