Home > Industrial Equipment & Components > Welding Equipment > Welding Auxiliary Equipment & Apparatus > Small Pipe Welding Positioner

Small Pipe Welding Positioner

Name: Small Pipe Welding Positioner
Brand: BOTA
SKU: 109586579
Availability: InStock

Small Pipe Welding Positioner thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

China

Brand Name:

BOTA

Contact Supplier Request Quote Chat Now

Luoyang Bota Heavy Industry Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin China

Brand Name BOTA

Model Number BHB

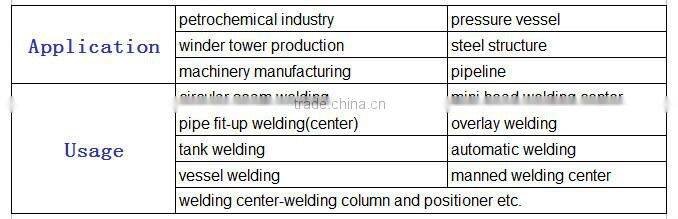

Usage Auotomatic welding,SAW,TIG,MIG, Cylinder seam welding,tank welding,pipe welding

Dimensions standard or according to your need

Weight standard

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

Specifications

pipe welding positioner
1.high quality,low price
2.1 year warranty
3.free installation
4.welding assistance equipment.

Product Description

Welding positioner is mainly composed of worktable revolving unit and tilting unit. With worktable lifting, tilting and revolving, the workpiece fixed on the worktable can be placed to ideal position for welding and assembly.

The welding positioner series can divide into side tilting type , head to tail rotary type, head& tailstock lifting rotary type, head& tailstock tilting type, double rotary type positioner. The positioner can work with welding column& boom to realize the automatic special purpose welding center. As robot peripherals, it can also work with robot to realize automatic welding . We can design and customize the positioners according the customers’ workpiece and welding procedure.

1. Universal Welding Positioner

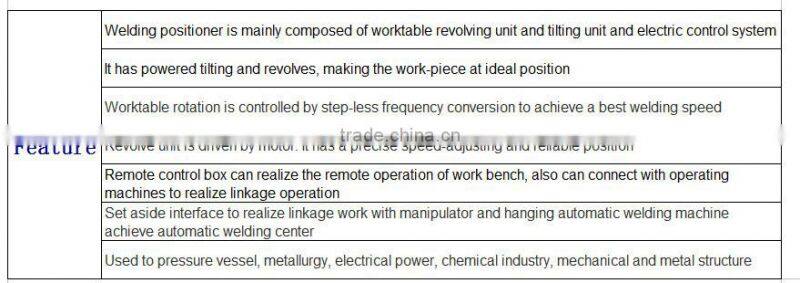

1.1 Feature

1.2 Technical parameters

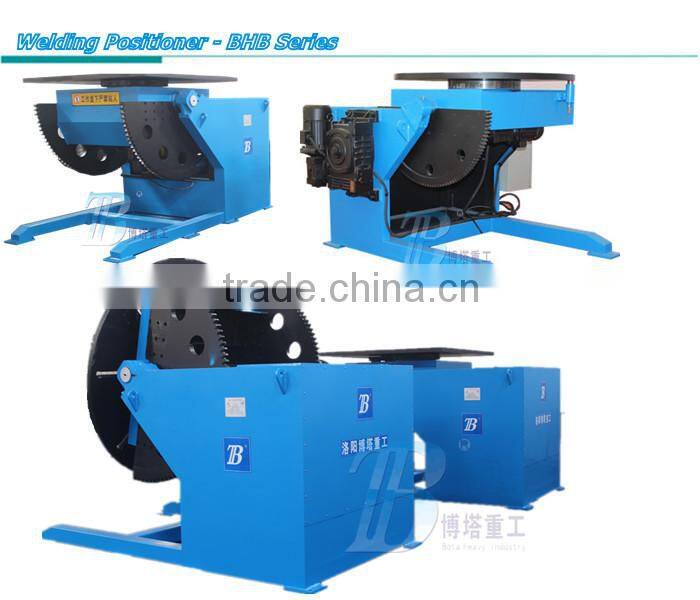

Welding Positioner - BHB Series
Model	BHB1	BHB3	BHB6	BHB10	BHB20	BHB30	BHB50	BHB80	BHB100	BHB150	BHB200
Load Cap.(kg)	100	300	600	1000	2000	3000	5000	8000	10000	15000	20000
Rotation Speed(rpm)	0.1-1	0.2-2	0.1-1.1	0.1-1	0.09-0.9	0.08-0.8	0.07-0.7	0.06-0.6	0.06-0.6	0.05-0.5	0.05-0.5
Tilting Speed(rpm)	≈0.9	≈0.9	≈0.8	≈0.5	≈0.4	≈0.3	≈0.2	≈0.14	≈0.14	≈0.14	≈0.14
Table Dia. (mm)	Φ300	Φ600	Φ800	Φ1000	Φ1200	Φ1400	Φ1600	Φ2000	Φ2000	Φ2000	Φ2500
Maximum Eccentricity(mm)	100	150	150	250	250	250	250	200	200	200	200
Max Gravity Center Distance(mm)	150	200	250	300	350	400	400	400	400	500	630
Table Flip Angle(°)	0-120	0-120	0-120	0-120	0-120	0-120	0-120	0-120	0-120	0-120	0-120
Rotary Motor Power(Kw)	0.08	0.25	0.37	0.55	0.75	1.5	2.2	2.2	3	3	5
Tilting Motor Power(Kw)	By hand	0.25	0.37	1.1	1.5	2.2	3	4	4	5.5	7.5
90 ° Swing Diameter	≤600	≤1000	≤1500	≤1500	≤2000	≤2300	≤2800	≤3200	≤3200	≤3400	≤3400
Speed mode	Rotating Speed VFD
Speed mode	Tilting Speed Constant
