Specifications
1.The workpiece can be placed to ideal position2. ISO 9001:2008
3. Adopt imported electrical components.
Welding positioner is mainly composed of worktable revolving unit and tilting unit. With worktable lifting, tilting and revolving, the workpiece fixed on the worktable can be placed to ideal position for welding and assembly.
The welding positioner series can divide into side tilting type , head to tail rotary type, head& tailstock lifting rotary type, head& tailstock tilting type, double rotary type positioner. The positioner can work with welding column& boom to realize the automatic special purpose welding center. As robot peripherals, it can also work with robot to realize automatic welding . We can design and customize the positioners according the customers’ workpiece and welding procedure.

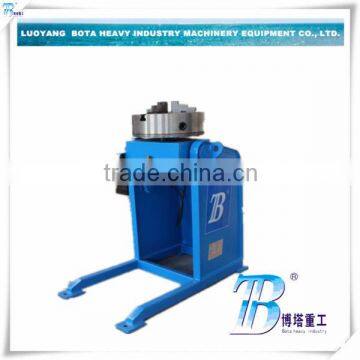

1. Universal Welding Positioner
1.1 Feature
1. Welding positioner is mainly composed of worktable revolving unit and tilting unit and electric control system .
2. It has powered tilting and revolves, making the work-piece at ideal position .
3. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed .
4. Revolve unit is driven by motor. It has a precise speed-adjusting and reliable position.
5. Remote control box can realize the remote operation of work bench, also can connect with operating machines to realize linkage operation.
6. Set aside interface to realize linkage work with manipulator and hanging automatic welding machine achieve automatic welding center .
7. Used to pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure .
1.2 Technical parameters
| Welding Positioner - BHB Series | |||||||||||
| Model | BHB1 | BHB3 | BHB6 | BHB10 | BHB20 | BHB30 | BHB50 | BHB80 | BHB100 | BHB150 | BHB200 |
| Load Cap.(kg) | 100 | 300 | 600 | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 | 15000 | 20000 |
| Rotation Speed(rpm) | 0.1-1 | 0.2-2 | 0.1-1.1 | 0.1-1 | 0.09-0.9 | 0.08-0.8 | 0.07-0.7 | 0.06-0.6 | 0.06-0.6 | 0.05-0.5 | 0.05-0.5 |
| Tilting Speed(rpm) | ≈0.9 | ≈0.9 | ≈0.8 | ≈0.5 | ≈0.4 | ≈0.3 | ≈0.2 | ≈0.14 | ≈0.14 | ≈0.14 | ≈0.14 |
| Table Dia. (mm) | Φ300 | Φ600 | Φ800 | Φ1000 | Φ1200 | Φ1400 | Φ1600 | Φ2000 | Φ2000 | Φ2000 | Φ2500 |
| Maximum Eccentricity(mm) | 100 | 150 | 150 | 250 | 250 | 250 | 250 | 200 | 200 | 200 | 200 |
| Max Gravity Center Distance(mm) | 150 | 200 | 250 | 300 | 350 | 400 | 400 | 400 | 400 | 500 | 630 |
| Table Flip Angle(°) | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 |
| Rotary Motor Power(Kw) | 0.08 | 0.25 | 0.37 | 0.55 | 0.75 | 1.5 | 2.2 | 2.2 | 3 | 3 | 5 |
| Tilting Motor Power(Kw) | By hand | 0.25 | 0.37 | 1.1 | 1.5 | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 |
| 90 ° Swing Diameter | ≤600 | ≤1000 | ≤1500 | ≤1500 | ≤2000 | ≤2300 | ≤2800 | ≤3200 | ≤3200 | ≤3400 | ≤3400 |
| Speed mode | Rotating Speed VFD | ||||||||||
| Tilting Speed Constant | |||||||||||

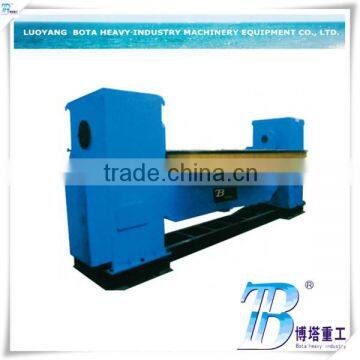

2. Double Column Positioner
2.1 Feature
1. Mainly used for work piece which is big and with irregular shape.
2. With function of ±90°tilting. The tilting speed could be fixed speed or adjustable.
3. With function of lifting. Lifting stoke depends on customers’ requirement.
4. With function of 360°rotating. The tilting speed could be fixed speed or adjustable.
5. With function of tilting self-lock.
6. We will design according to customers' requirement.
2.2 Technical parameters

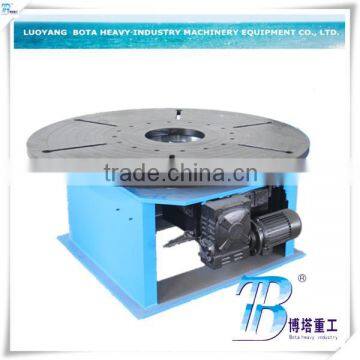

3. Welding Turntable
4. Application
4. Manufacturing Process
5. Packaging & Shipping
6. Our Services
6.1 Installation
Free installation and commissioning for foreign customers can be provided; board and lodging costs are on the foreign customer.
6.2 Personnel training
Free training for foreign customers, if required, also operation manual will be sent along with the machine.
6.3 Warranty
Warranty period is one year. Provide longtime free technical advisory services and Provide free technology consulting services During warranty period, free maintenance and technical support can be provided. (Except man-made major damages or damages arising from irresistible natural factors ).
¤ For more about our products, please feel free to contact us.
¤ Your satisfaction is our destination .
