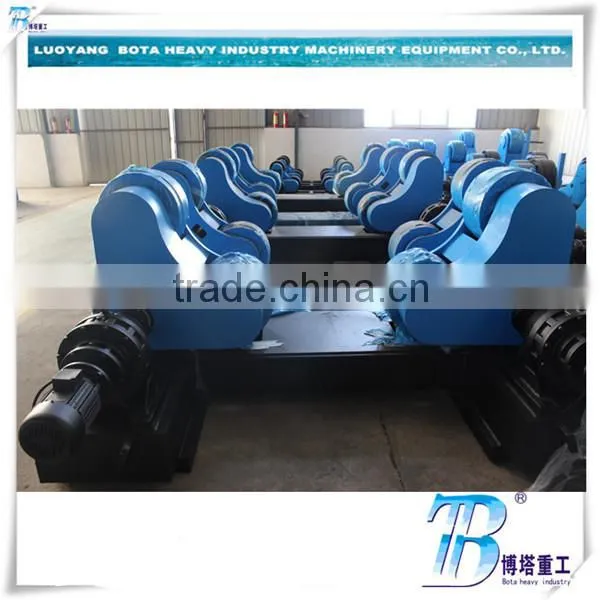

30T Self Pipe Welding Rotators

Specifications

It can adjust automatically the swing angle as per workpiece diameter.For drive model,there are single drive and double-drive.





  Welding rotator is used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber. It can be aligned according to the size of the shell, it is controlled with AC frequency converter, and the linear velocity is displayed by the digital. We also can design the customize various types of the welding rotator in accordance with the customers requirement.



1. Self- align Welding Rotators

1.1  Featur :

1. BZT series self-aligning rotators is composed of driven frame and a driving frame.
2. Automatically adjusting the center distance in order to adapt to the diameter of workpiece.

3. The structure of this machine is made of section steel and steel plate by fine welding, ensuring its structural strength and stability

4. Drive Shaft and Bearing shaft have good rigidity, high strength .

5. Wide range of speed regulation , running smoothly.

6. protections against over-current ,overvoltage , and overload ,overheating etc.

7.Adopting the hand control box can realize the remote operation of the turning roll.

8. The hand control box can be used together with the welding manipulatorand achieves linkage controlling .

9. Convenient operation and high automatic degree to realize high quality welding and automatic welding for the different tanks.

10. This product is widely used in wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, welding repair industry .



1.2  Technical parameters



2. Adjustable Welding Rotators





2.2 Technical parameters







Option:



1. Polyurethane wheelor Rubber wheel or steel wheel ,

2. Anti-creep function,

3. Hydraulic lifting for fit up pipe,

4. Hydraulic tilting function ,

5. Automatic traveling or Manual traveling on the rail,

6. Customization.















3. Application







4. Manufacturing Process

5. Packaging & Shipping





6. Our Services





6.1 Installation

Free installation and commissioning for foreign customers can be provided; board and lodging costs are on the foreign customer.



6.2 Personnel training

Free training for foreign customers, if required, also operation manual will be sent along with the machine.



6.3 Warranty

Warranty period is one year. Provide longtime free technical advisory services and Provide free technology consulting services During warranty period, free maintenance and technical support can be provided. (Except man-made major damages or damages arising from irresistible natural factors ).
