Specifications
1. Plasma / oxy fuel cutting2. High precision rack and linear guide
3. Panasonic Servo motor
4. Torche height controll

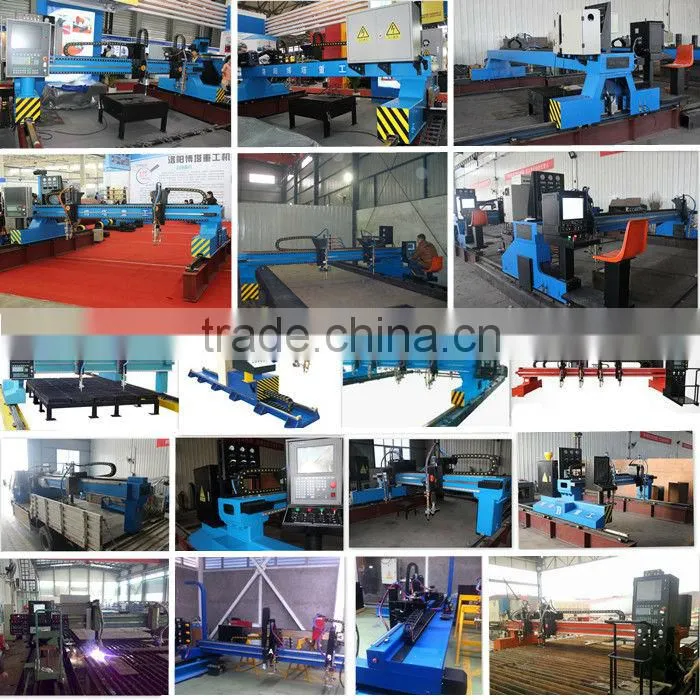

CNC Cutting Machine
CNC gantry type plasma/flame cutting machine is designed with the company many years' cumulative experience It is widely used for Shipbuilding, railway, construction machinery, steel structure, petrochemical and pressure vessel industry.
Feature:
1. Different cutting torches, plasma, flame and strips, are optional according to customersrequirements.
2. Gantry type box beam, double-side driving motors, compact, reliable and effective, suitable for wide track working; China top brand or imported guiding rails for horizontal transmission, precise and stable.
3. Imported or china top brands guide rails for horizontal transmission, high precision and excellent performance. Specialized rails for longitudinal transmission with surface grinded, enjoy high working precision and abrasive resistance.
4. Custom-made racks and gear from professional manufacturers, surfaced carburized and quenched, enjoy high precision; German NEU GART gear speed reducer adopted for horizontal and longitudinal transmission, which is characterized of high precision, big torque and low bag gap.
5. Adopted Panasonic servo system can detect location and enjoys a high working presion, wide speed range and short acceleration time.
6. Different cutting tools and cutting torch systems provided for flame cutting,plasma cutting, etc.
7. Composed of gas box and gas distributing system, gas pipe adopts automatic ignition device and back fire arrestor, thus a safe and stable working performance guaranteed.
8. High power plasma power source for different materials cutting.
9. Optional functions in accordance with customers requirements.

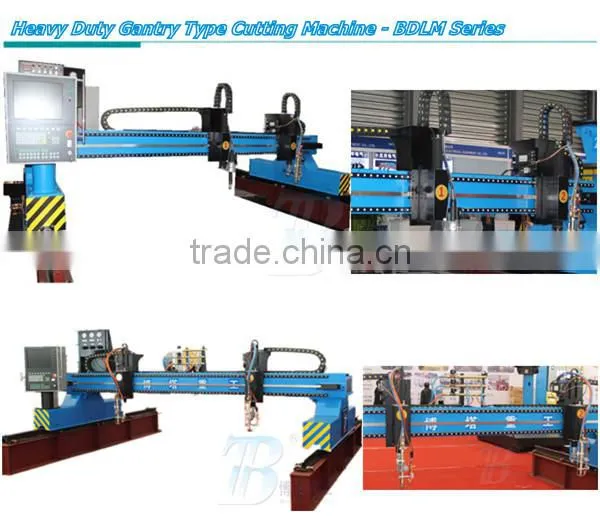

1. Heavy Duty Gantry Type CNC Cutting Machine
1.1 Technical parameter
| Heavy Gantry CNC Cutting Machine - BDLM Series | |||||||
| Model | BDLM | ||||||
| Track Span(m) | 3 | 4 | 5 | 6 | 7 | 8 | 10 |
| Rail length(m) | 12 | 12 | 14 | 14 | 14 | 16 | 16 |
| Each rail is 2m, Can be lengthened according to Users demand. | |||||||
| Torch No. | 2 torches as standard. | ||||||
| Torch quantity can be customized. | |||||||
| Max cutting Area | 2.5*10 | 3.2*10 | 4.2*12 | 4.6*12 | 5.1*12 | 7.2*14 | 9.2*14 |
| Cutting thickness | 6~200mm (falme); Depends on plasma power capacity (Plasma) | ||||||
| Driving Mode | Single motorize | Dual motorize | |||||

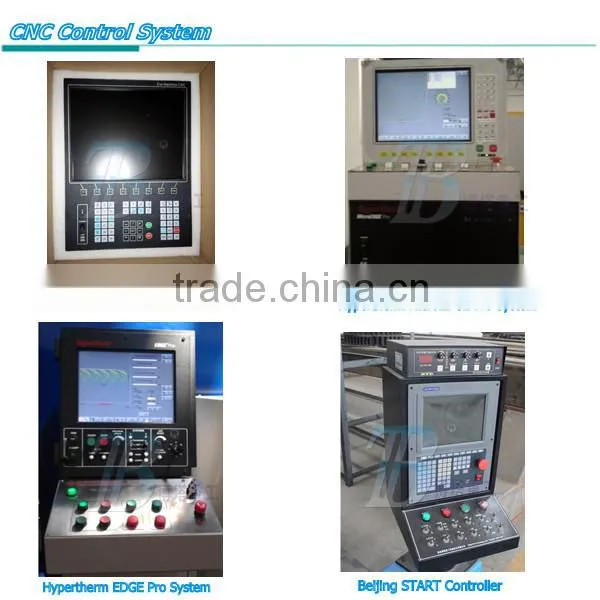

| CNC system | American Hypertherm,Beijing Start, Domestic CNC system | ||||||
| Program software | Australia FastCAM professional edition | ||||||
| Speed Range | 0~6000mm/min | ||||||
| Cutting gas | Oxygen+acetylene/Propane | ||||||
| Option | Oxy-fuel: Auto-ignition, Auto THC, Powder marking, Linear Triple Torches. | ||||||

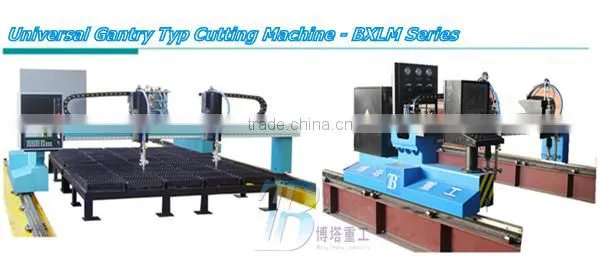

2. Universal Gantry Type CNC Cutting Machine
2.1 Technical parameter
| Univesal Gantry CNC Cutting Machine- BXLM Series | |||||||
| Model | BXLM-I | BXLM-II | BXLM-III | ||||
| Cutting Type | Oxy-fuel only | Plasma only | Oxy-fuel /Plasma | ||||
| Track Span(m) | 3m/4m | ||||||
| Rail length(m) | Can be customized | ||||||
| Torch No. | 1, 1+1 , double(Oxy fuel and Plasma each ) | ||||||
| Max cutting Area | 2.5/3.5m(Width), According to Users demand(Length) | ||||||
| Cutting thickness | 6~150mm (Oxy fuel); Depends on plasma power capacity (Plasma) | ||||||
| Driving Mode | Single driving | Dual driving | |||||
| Torch Height Controller | Auto/Electictic lifting Arc voltage height control for plasma cutting | ||||||
| CNC system | optional | ||||||
| Program software | Australia FastCAM | ||||||
| Speed Range | 0~12000mm/min | ||||||
| Cutting gas | Oxy fuel cutting :Oxygen+acetylene/Propane; | ||||||
| Option | Oxy-fuel: Auto-ignition, Auto THC, Powder marking, Linear Triple Torches. | ||||||
3. Application

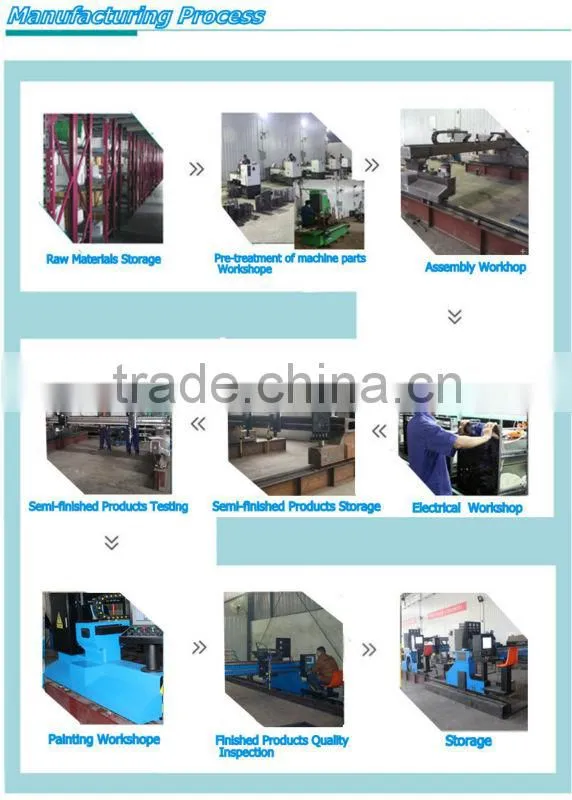

4. Manufacturing Process
5. Packaging & Shipping
6. Our Services
6.1 Installation
Free installation and commissioning for foreign customers can be provided; board and lodging costs are on the foreign customer.
6.2 Personnel training
Free training for foreign customers, if required, also operation manual will be sent along with the machine.
6.3 Warranty
Warranty period is one year. Provide longtime free technical advisory services and Provide free technology consulting services During warranty period, free maintenance and technical support can be provided. (Except man-made major damages or damages arising from irresistible natural factors .
¤ For more about our products, please feel free to contact us.
¤ Your satisfaction is our destination .
