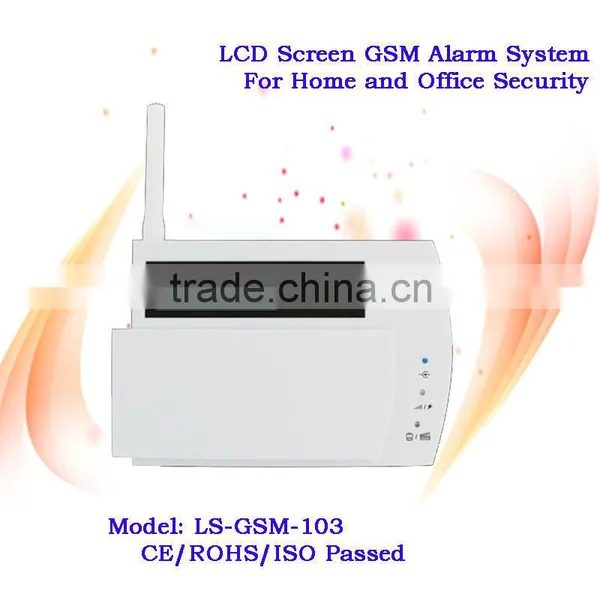

LS-GSM-103 Security Alarm System with 30 Zones

Specifications

GSM Alarm Security System
1.LCD Display
2.30 wireless
3.one-key arm operation



LCD Flash Siren Alarm GSM Security System with 30 Zones  (LS-GSM-103)





1. Features:



♦ GSM Frequency: 900/1800MHz, 900/900/1800/1900MH,850/900/1800/1900MH (optional)

♦ Concise and elegant design with simple operating interface, CID communication protocol

♦ LCD screen with calender, available in English, Chinese, Germany, Russian, French and Japanese etc

♦ One-key arm operation, coding wireless sensors

♦ With 30 wireless alarm zones, GSM wireless sensors

♦ Can preset 5 groups telephone, with functions of recording, voice indicating and monitoring

♦ Can distinguish alarming information intelligently, prevent mis-alarms and missing-alarms

♦ Alarming priority, history records backup once power failure, AC/DC power both available

♦ 5 methods arm/ disarm: remote controller, host keypad, remote controlling keypad, telephone and SMS

♦ internal and external antenna optional





2.Specifications:



♦ Working voltage: 100~240VAC, DC12V 1A
♦ Operating power: DC12V 1A
♦ Wireless Frequency: 433MHz
♦ Static current: ≤ 80mA
♦ Alarm current: ≤ 500mA
♦ GSM transmission power: 2W
♦ Operating environment: Temperature: -10-50° C; Humidity: < 90%
♦ Maximum available quantity of keychain remotes: 8 PCS
♦ Maximum available quantity of wireless sensors: 112 PCS
♦ Dimension: 180*120*50(mm)

3.Standard package list:



wireless door magnetic sensor*1                            mainframe*1

wireless PIR motion sensor*1                               remote control*2

Wire flashing siren*1

AC/DC Adaptor*1                                                 user manual*1
