Help CenterISO Certificate Mild Steel Equal Angle Bar
Related Products
-
ISO Certificate Hot Rolled Unequal Angle Steel BarsUS$ 360 - 450MOQ: 1 Ton -
Manufactory Professional Service Galvanized Steel Angle BarUS$ 420 - 550MOQ: 1 Ton
-
Super Quality Stainless Steel Flat BarUS$ 1,600 - 2,700MOQ: 1 Ton
-
Prime Quality Cold Drawn Flat BarUS$ 500 - 700MOQ: 1 Ton
-
Prime Factory Stock Steel Angle BarUS$ 350 - 400MOQ: 1 Ton
HIgh quality hot rolled equal leg steel angle bar
2. Standard: ASTM,AISI, BS, DIN, GB, JIS
3. Type:Equal angle and Unequal
4.Size:20-200mm 75*50mm-200*100mm L:6-12m or cut as your request
length=6 meters/9 meters
Equal angle steel
Equal angle bar
Size |
Weight |
Size |
Weight |
Size |
Weight |
(mm) |
(kg/m) |
(mm) |
(kg/m) |
(mm) |
(kg/m) |
25*3 |
1.124 |
70*6 |
6.406 |
100*16 |
23.257 |
25*4 |
1.459 |
70*7 |
7.398 |
110*8 |
13.532 |
30*3 |
1.373 |
70*8 |
8.373 |
110*10 |
16.69 |
30*4 |
1.786 |
75*5 |
5.818 |
110*12 |
19.782 |
40*3 |
1.852 |
75*6 |
6.905 |
110*14 |
22.809 |
40*4 |
2.422 |
75*7 |
7.976 |
125*8 |
15.504 |
40*5 |
2.967 |
75*8 |
9.03 |
125*10 |
19.133 |
50*3 |
2.332 |
75*10 |
11.089 |
125*12 |
22.696 |
50*4 |
3.059 |
80*6 |
7.736 |
125*14 |
26.193 |
50*5 |
3.77 |
80*8 |
9.658 |
140*10 |
21.488 |
50*6 |
4.465 |
80*10 |
11.874 |
140*12 |
25.522 |
60*5 |
4.57 |
90*8 |
10.946 |
140*14 |
29.49 |
60*6 |
5.42 |
90*10 |
13.476 |
160*12 |
29.391 |
63*4 |
3.907 |
90*12 |
15.94 |
160*14 |
33.987 |
63*5 |
4.822 |
100*8 |
12.276 |
160*16 |
38.518 |
63*6 |
5.721 |
100*10 |
15.12 |
160*18 |
48.63 |
63*8 |
7.469 |
100*12 |
17.898 |
180*18 |
48.634 |
70*5 |
5.397 |
100*14 |
20.611 |
200*24 |
71.168 |
Unequal angle steel
Unequal angle bar
| Unequal Angle | |||||||||
| Specification(mm) | Theoretical Weight(kg/m) | Specification(mm) | Theoretical Weight(kg/m) | ||||||
| 75*50*6 | 5.67 | 125*75*7 | 10.7 | ||||||
| 75*50*8 | 7.35 | 125*75*8 | 12.2 | ||||||
| 100*75*6 | 8.04 | 125*75*9 | 13.6 | ||||||
| 100*75*7 | 9.32 | 125*75*10 | 15 | ||||||
| 100*75*8 | 10.6 | 125*75*12 | 17.8 | ||||||
| 100*75*9 | 11.8 | 150*90*9 | 16.4 | ||||||
| 100*75*10 | 13 | 150*90*10 | 18.2 | ||||||
| 100*75*12 | 15.4 | 150*90*12 | 21.5 | ||||||
Chemical Composition and Mechanic Property of Q235 as below:
we can do the surface treatments as follow:
1) Black surface
2)Pre-painted surface
3)Hot dip galvanized steel angle
4) Galvanized angle iron
5)Galvanized angle steel
High quality !! angle steel bar, price steel angle bar, mild steel angle bar
High quality !! angle steel bar, price steel angle bar, mild steel angle bar
High quality !! angle steel bar, price steel angle bar, mild steel angle bar
Galvanized angle steel/Galvanized angle iron
Zinc coating 140g/m2-600g/m2
Galvanizing thickness=20microns-120 microns
Galvanized angle steel/Galvanized angle iron 100x100mmx10mm
Very strictly production
Black steel angle bar 50x50x5mm length=6 meters

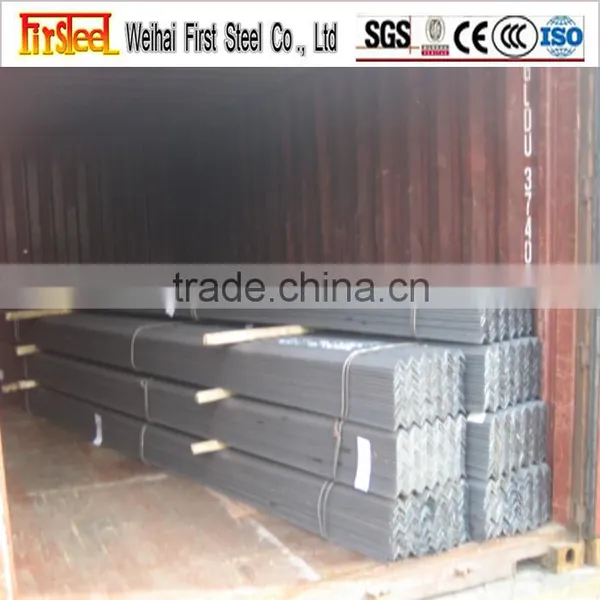

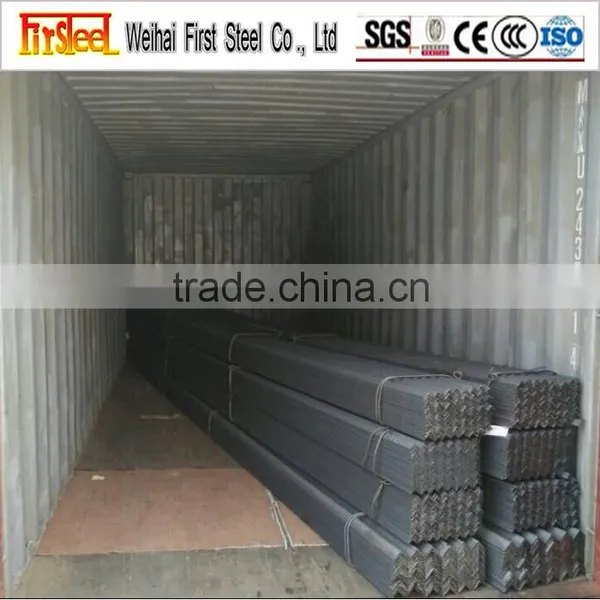

Container Photoes as follow
For galvanized angles
For black angles
Our production processing & quality control:
Material cost control
Raw Material-----hot rolled steel billets are made by ourselves ----saving 5% cost on material.
Mass production;
There are more than 10 hot rolled steel angle production line, with the monthly output of 100,000 tons carbon steel angles
Insuring the control of production cost and shortest lead time.
OUR MAIN MARKET,
Our steel angel have been to over 40 countries, such as Midddle east, South America, Southeast Asia.
If you choose me as your supplier, you can rest assured about the QUALITY and LEAD-TIME. I believe you could get a good feedback and fruitful business cooperation by our joint efforts in the near future
Weihai First Steel Co., Ltd is located in Weihai city, which is the world health city and the most suitable place to live in. We have superior environment and convenient traffic. It’s about 200 kilometers to Qingdao port.
First Steel is one of the leading manufactories with ISO 9001 certificate who is specializing in manufacturing & exporting various kinds of steel pipes, steel plate, steel coil, round bar, flat bar, angle bar, H beam and other steel products in China. We owned the complete production technique and related equipments for coking, sintering, iron, steel, steel rolling etc, also including the related energy source power system. Meanwhile, we have reached the production technique` s completeness and systematicness at the modern steel industry.
First Steel has exported steel products to over 40 countries in the world. Our products are marketed widely all over the country and exported to North American, Europe, Middle East, South American, Southeast Asia, Africa, Australia etc and get highly appreciated for our quality and service.
First Steel would be based on the trustworthiness cooperation and quality first always. Our aim is “to reach customer satisfaction with our best products”. According to clients’ requirements, our professional team and hard-working staff are competent to develop latest steel to meet the market demand extremely. We are the reliable manufacture and willing to work together with our clients for a brilliant future.
1. Section Steel: I beam, H beam, U channel, angles etc.
- Over 10 years exporting experience on all kinds of steel product make us much professional
- Strictly quality control system from choosing the material to processing
- Comepetitive price and shortest delivery time
2, What is your MOQ?
Usually 20 feet containers ( 25 tons) for section steel
3,What is your delivery time?
For stocks, we can send the goods to loading port within 7 days after receiving your deposit
For production period, it usually needs about 15days- 30 days after receiving the deposit
4, What is your shipping port?
Tian jin port, Qingdao port, Shanghai Port
5, What is your payment terms?
Usually 30% deposit by TT in advance and balance against copy of BL or LC at sight
6,What is your company locations?
Our office is located in Shandong province.
We have our own steel billet mill in Hebei province and a big warehouse in Shanghai and jiangsu province.
We have many reliable and long-term cooperated section steel factories from Hebei province, such as Tangshan city and Tianjin city. also GI/PPGI factories from Shandong province.
You are welcome to visit our factory and office anytime.
