Help Centeri Beam Specifications
US$ 350 - 500
MOQ: 1 Ton
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Dimensions:
100*68*4.5mm--630*180*17mm
Grade:
Q235; A36; SS400; ST37; SAE1006/1008; S275JR; Q345,S355JR; 16Mn; ST52
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Competitive Price Carbon Din 1.0037 Steel i BeamsUS$ 350 - 500MOQ: 1 Ton -
Manufactory Professional Service Stainless Steel c ChannelUS$ 1,500 - 2,600MOQ: 1 Ton
-
Competitive Price Stainless Steel Channel BarUS$ 1,500 - 2,600MOQ: 1 Ton
-
Competitive Price Galvanized Steel c ChannelUS$ 350 - 500MOQ: 1 Ton
-
ISO Certificate Mild Steel Equal Angle BarUS$ 360 - 450MOQ: 1 Ton
Standard
AISI, ASTM, BS, DIN, GB, JIS
Dimensions
100*68*4.5mm--630*180*17mm
Grade
Q235; A36; SS400; ST37; SAE1006/1008; S275JR; Q345,S355JR; 16Mn; ST52
Place of Origin
China
Brand Name
Firststeel
Model Number
FS83
Application
Used for boiler,bridge,car,ship,construction etc.
Perforated Or Not
Not Perforated

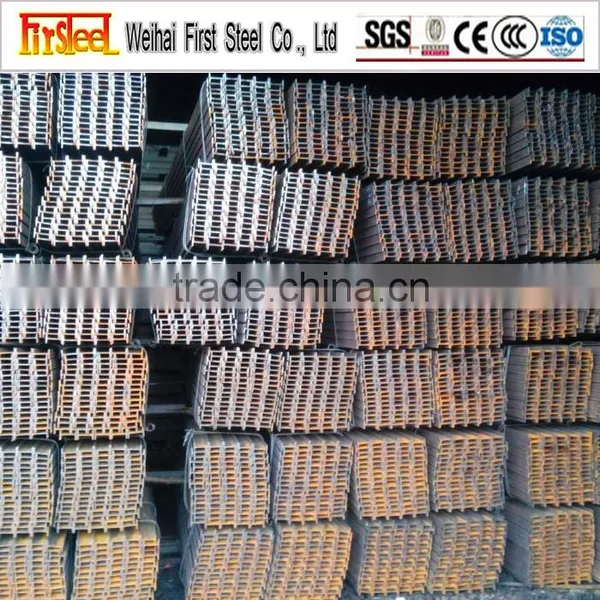

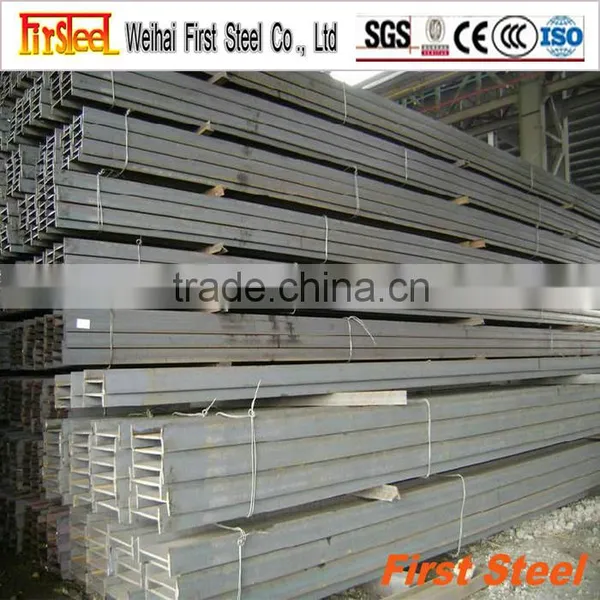

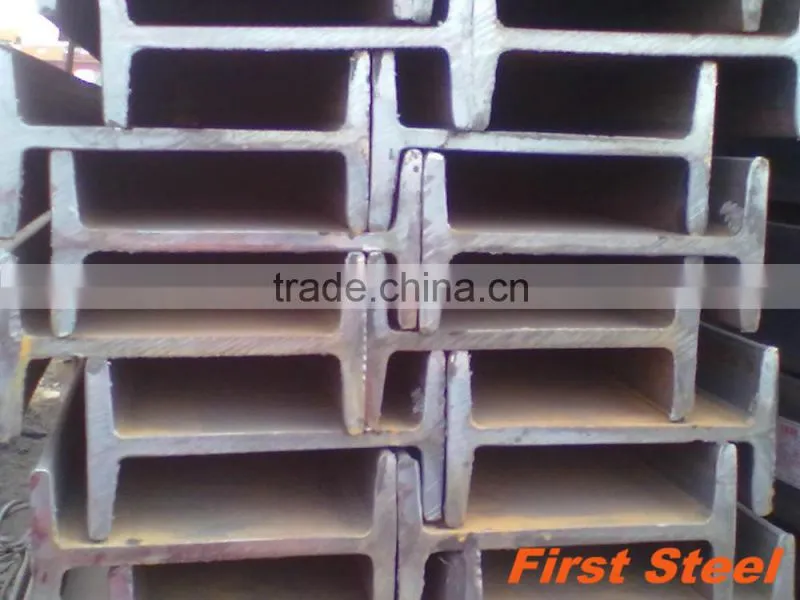

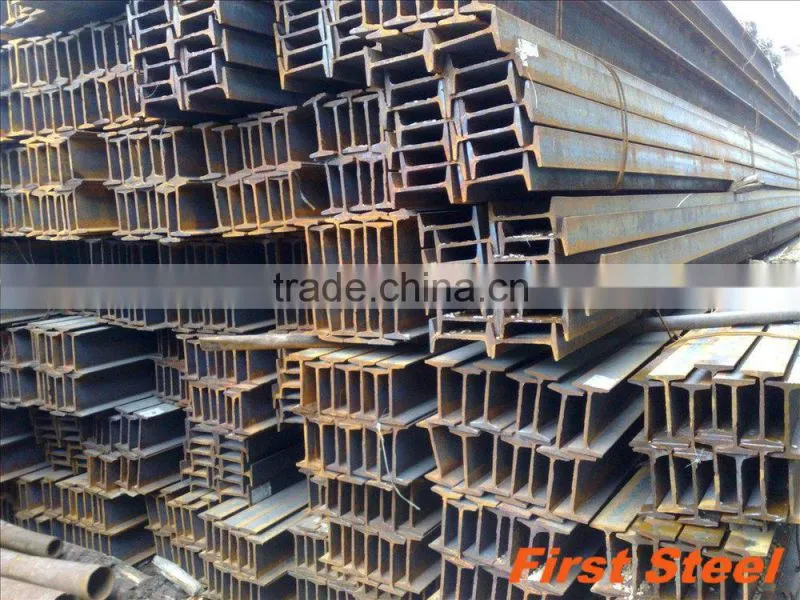

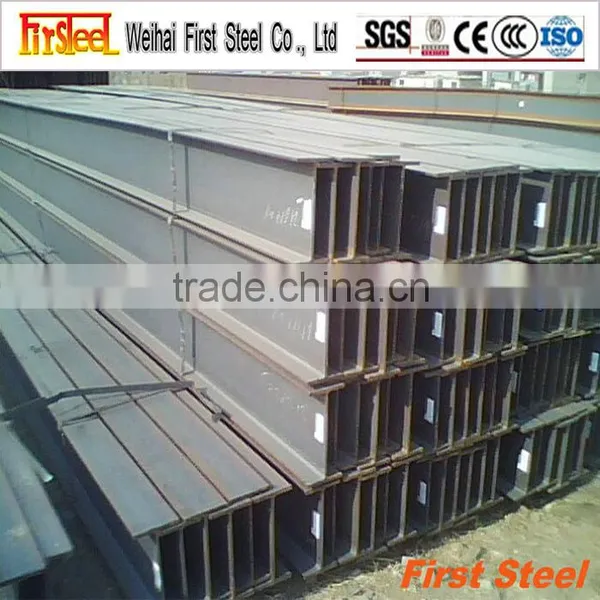

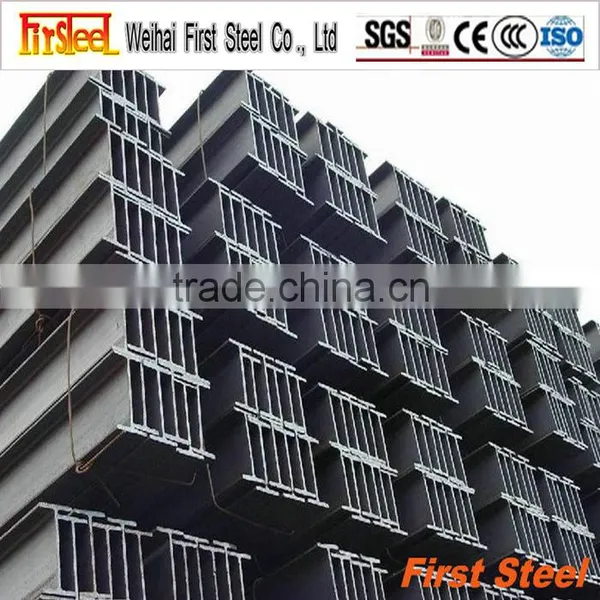

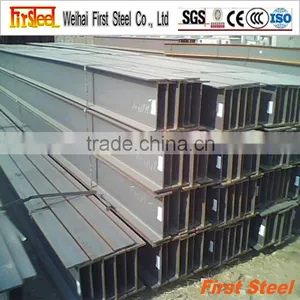

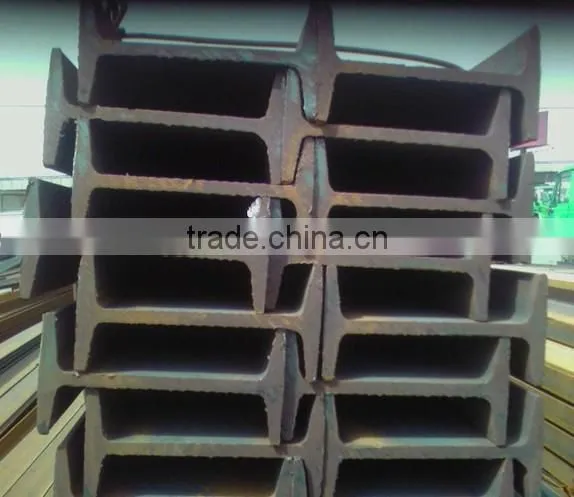

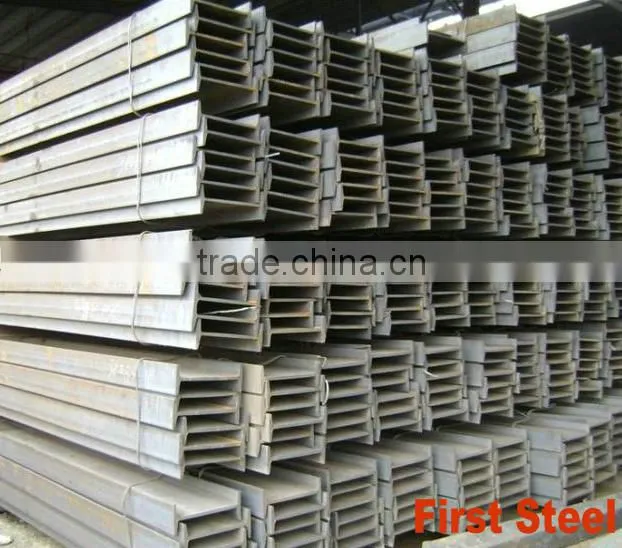

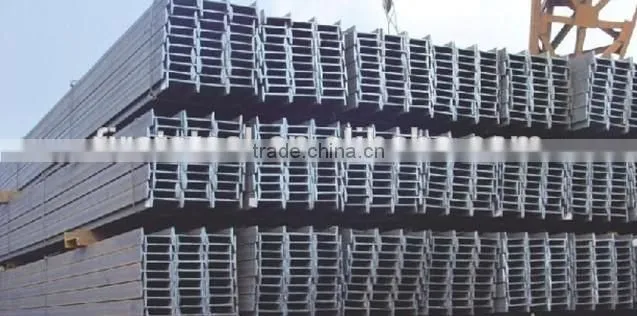

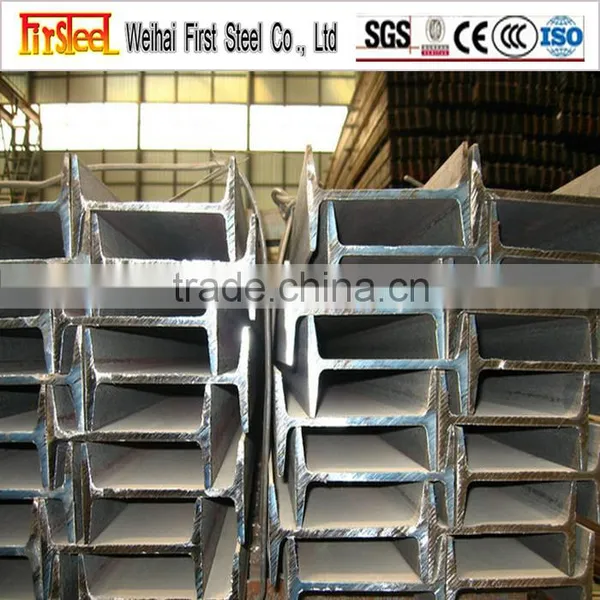

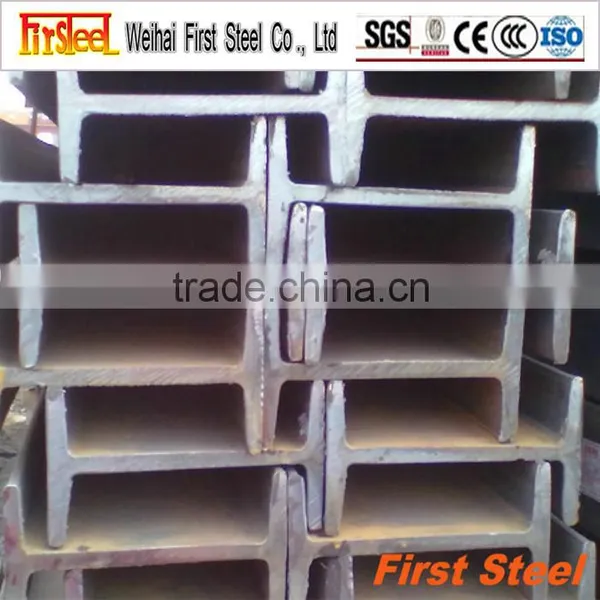

I beam
Material: Q235; A36; SS400; ST37; SAE1006/1008; S275JR; Q345,S355JR; 16Mn; ST52 etc.
Length: 5.8m, 6m, 9m, 11.8m, 12m etc

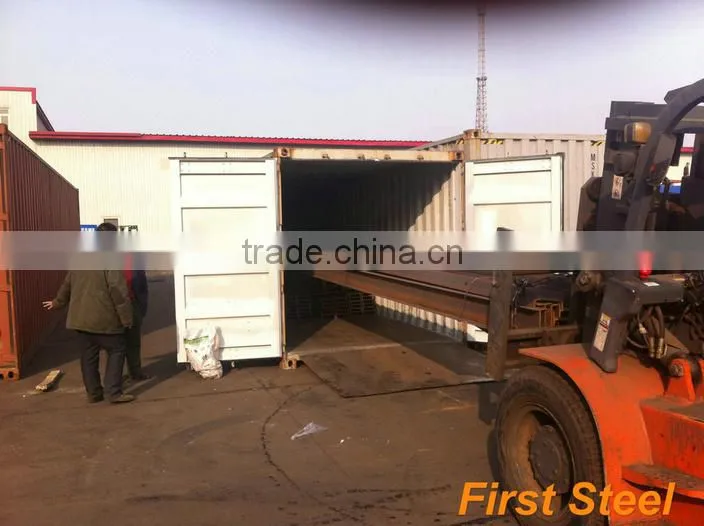

Packing: seaworthy packing
Chinese standard Size: 100*68*4.5mm--630*180*17mm
| Item | I beam SIZE(mm) | Theory weight | ||||
| h | b | d | t | r1 | (Kg/m) | |
| 10 | 100 | 68 | 4.5 | 7.6 | 3.3 | 11.2 |
| 12.6 | 126 | 74 | 5 | 8.4 | 3.5 | 14.2 |
| 14 | 140 | 80 | 5.5 | 9.1 | 3.8 | 16.9 |
| 16 | 160 | 88 | 6 | 9.9 | 4 | 20.5 |
| 18 | 180 | 94 | 6.5 | 10.7 | 4.3 | 24.1 |
| 20a | 200 | 100 | 7 | 11.4 | 4.5 | 27.9 |
| 20b | 200 | 102 | 9 | 11.4 | 4.5 | 31.1 |
| 22a | 220 | 110 | 7.5 | 12.3 | 4.8 | 33 |
| 22b | 220 | 112 | 9.5 | 12.3 | 4.8 | 36.4 |
| 25a | 250 | 116 | 8 | 13 | 5 | 38.1 |
| 25b | 250 | 118 | 10 | 13 | 5 | 42 |
| 28a | 280 | 122 | 8.5 | 13.7 | 5.3 | 43.4 |
| 28b | 280 | 124 | 10.5 | 13.7 | 5.3 | 47.9 |
| 32a | 320 | 130 | 9.5 | 15 | 5.8 | 52.7 |
| 32b | 320 | 132 | 11.5 | 15 | 5.8 | 57.7 |
| 32c | 320 | 134 | 13.5 | 15 | 5.8 | 62.8 |
| 36a | 360 | 136 | 10 | 15.8 | 6 | 59.9 |
| 36b | 360 | 138 | 12 | 15.8 | 6 | 65.6 |
| 36c | 360 | 140 | 14 | 15.8 | 6 | 71.2 |
| 40a | 400 | 142 | 10.5 | 16.5 | 6.3 | 67.6 |
| 40b | 400 | 144 | 12.5 | 16.5 | 6.3 | 73.8 |
| 40c | 400 | 146 | 14.5 | 16.5 | 6.3 | 80.1 |
| 45a | 450 | 150 | 11.5 | 18 | 6.8 | 80.4 |
| 45b | 450 | 152 | 13.5 | 18 | 6.8 | 87.4 |
| 45c | 450 | 154 | 15.5 | 18 | 6.8 | 94.5 |
| 50a | 500 | 158 | 12 | 20 | 7 | 93.6 |
| 50b | 500 | 160 | 14 | 20 | 7 | 101 |
| 50c | 500 | 162 | 16 | 20 | 7 | 109 |
| 56a | 560 | 166 | 12.5 | 21 | 7.3 | 106.2 |
| 56b | 560 | 168 | 14.5 | 21 | 7.3 | 115 |
| 56c | 560 | 170 | 16.5 | 21 | 7.3 | 123.9 |
| 63a | 630 | 176 | 13 | 22 | 7.5 | 121.6 |
| 63b | 630 | 178 | 15 | 22 | 7.5 | 131.5 |
| 63c | 630 | 180 | 17 | 22 | 7.5 | 141 |
Euro standard:
IPE80, IPE100, IPE120, IPE140, IPE160, IPE180, IPE200, IPE220, IPE240, IPE270
| Item | Size(mm) | Theoretical weight (kg/m) | ||
| IPE100 | 100*55 | 4.1 | 5.7 | 8.1 |
| IPE120 | 120*64 | 4.4 | 6.3 | 10.4 |
| IPE140 | 140*73 | 4.7 | 6.9 | 12.9 |
| IPE160 | 160*82 | 5 | 7.4 | 15.8 |
| IPE180 | 180*91 | 5.3 | 8 | 18.8 |
| IPE200 | 200*100 | 5.6 | 8.5 | 22.4 |
| IPE220 | 220*110 | 5.9 | 9.2 | 26.2 |
| IPE240 | 240*120 | 6.2 | 9.8 | 30.7 |
| IPE270 | 270*135 | 6.6 | 10.2 | 36.1 |
IPEAA80, IPEAA100, IPEAA120, IPEAA140, IPEAA160, IPE180, IPE200
| Item | Size(mm) | Theoretical weight (kg/m) | ||
| IPEAA 80 | 78*46 | 3.2 | 4.2 | 4.95 |
| IPEAA 100 | 97.6*55 | 3.6 | 4.5 | 6.72 |
| IPEAA 120 | 117*64 | 3.8 | 4.8 | 8.36 |
| IPEAA 140 | 136.6*73 | 3.8 | 5.2 | 10.05 |
| IPEAA 160 | 156.4*82 | 4 | 5.6 | 12.31 |
| IPEAA 180 | 176.4*91 | 4.3 | 6.2 | 14.94 |
| IPEAA 200 | 196.4*100 | 4.5 | 6.7 | 17.95 |
Our main products: STEEL PLATE / STEEL COIL / SEAMLESS PIPE / WELDED PIPE (ROUND, SQUARE, RECTANGULAR) / ANGLE BAR / ROUND BAR / FLAT BAR / H BEAM / I BEAM / CHANNEL BAR etc.
Website:
For any question or inquiry, please send to our email firststeel(at)firststeelco(dot)com
