Specifications
LCD Touchpad GSM & PSTN Alarm System1.Touch keypad,PSTN+GSM dual network
2.LCD display date,day of week,time and armed status
LCD Touch GSM & PSTN Alarm System (LS-GSM-102)
|.Description and Main function
1)GSM frequency:900/1800MHZ(Quad-band optional)
2)Wireless frequency:433M (868M optional)
3)29 wireless zones,each zone add up to 4pcs sensors(8 wired zone optional)
4)You can connect wireless emergency button,wireless PIR sensor,wireless door/window contact,
wireless smoke detector,wireless gas leakage detector etc
5)Can preset up to 5 phone numbers and dial in sequence
6)GSM/PSTN dual net-work.Support phone call alarm and SMS alarm,automatically switch to GSM
dailing when telephone line is cut
7)10s voice record and play when alarm calling
8)Store up to 100 alarm records and 100 arm/disarm records
9)Arm/disarm the system by 5 ways:SMS,Main host(Keypad),Wireless Keypad,Keychain Remotes,or
even remotely by phones.(PSTN alarm don't support SMS)
10)Built-in Li-lon backup battery,it will alert when low power or without external power supply
11)Non-volatile chip,information stored automatically when power off
12)Support up to 8 remotes,Support up to 116 wireless sensors
13)Available in AC/DC with Low-voltage Indicators(optional)
14)Check door/window status automatically (This is when the system is disarmed only,if a door is
opened,it will sound fast"bi bi bi")(optional)
15)Support wireless "ding-dong"doorbell function(optional)
16)Support CID uploading to CMS(Center Monitoring Station),can user our GSM CID connector to
have this function
17)Supported Languages:Simplified Chinese/Traditional Chinese/English/German/French and more
to meet different market needs
18)Touch keypad,PSTN(optional)+GSM dual networks,LCD display date,day of the week.time and current armed status
19)Learning sensors to alarm host,very easy operation
20)GSM 2/4 band net transmission,phone audible alarming and SMS alarming
||.GSM & PSTN Alarm System Technical parameter:
Standby Current: ≤20mA
Alarming Current: ≤50mA
Working Conditions: indoors
Temperature:-10 to 50 relative humidity: ≤90%
Atmospheric pressure: 86-106Kpa
Alarm receiving method: wireless transmission
Radio transmitted distance: ≥100m
Voice message:12 seconds
Horn level of the siren connected: ≥110dB
DTMF: circular current 80mA35mA18mA

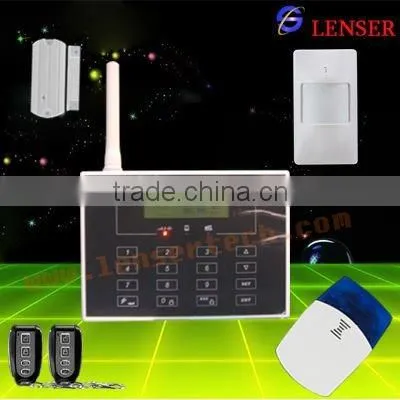

|||.Standard Package:
Alarm host (main unit)*1
Wireless door/window magnetic contact*1
PIR sensor*1
Metal remote controller*2
Wireless strobe siren*1
AC/DC adaptor*1
English user manual*1
You can add the following accessories:
