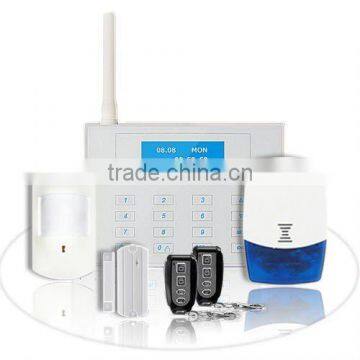

LCDTouchpad GSM&PSTN Alarm System(LS-GSM-102)

Specifications

Touchpad GSM/PSTN Alarm Wireless System
-GSM/PSTN dual network
-Support 800mA backup battery
-Support GSM SMS alarm for CID

Touchpad LCD GSM and PSTN dual network  Alarm System(LS-GSM-102)
-800mA back up battery
-Support GSM SMS alarm for CID
-Simple menu, wireless strobe siren
This wireless intruder alarm is for home security.



GSM/PSTN Alarm Wireless System Features:
1. Supported Languages: Chinese English German French and more custom language
2. Touch keypad; LCD displays Date, Week, Time, and System Status
3. 2/4 Band GSM/PSTN dual net-work .
4. Support phone call alarm and SMS alarm, automatically switch to GSM dailing when telephone line is cut.
5.29 wireless zones (totally: 116sensors) and 2 dedicated zones for remotes (Supports up to 8remotes).
6. Can preset up to 5 phone numbers and dial in sequence.
7. Intelligent logic analysis technology, corresponding zone number and sensor name can be displayed. 10 second record for the auto-dialer
8. ACDC with Low-voltage Indicators
9. Surpports 8 more wired zones(Optional).
10. Support wireless "ding-dong" doorbell function (Optional)
11. Support CID uploading to CMS(Center monitoring Station).
12. Landline broken off alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.
13. Built-in Li-ion backup battery, it will alert when low power or without external power supply.
14. Store up to 100 alarm records and 100 armdisarm records


GSM/PSTN Alarm Wireless System Technical Parameter:
1. Working voltage: 100~240VAC, DC12V 1A
2. Operating power: DC12V 1A
3. GSM Frequency: 900/1800MHz, 850/900/1800/1900MHz
4. Wireless Frequency: 433MHz
5. Static current: ≤ 80mA
6. Alarm current: ≤ 500mA
7. GSM transmission power: 2W
8. Operating environment: Temperature: -10-50° C; Humidity: < 90%
9. Maximum available quantity of keychain remotes: 8 PCS
10. Maximum available quantity of wireless sensors: 112 PCS
11. Host D imension: 150*107*26(mm)


Basic component:
- Alarm system (control unit)-1 PC.
- Wireless PIR detector-1 PC.
- Wireless door (gap) sensor-1 PC.
- Remote controller-2 PCS.
- Antenna-1PC.
- Wireless Sound&flash 110dB/0.3m-1 PC.
- Power adpater-1PC.
- User manual-1PC.
