Help CenterPrime Quality Angle Bar
US$ 350 - 500
MOQ: 1 Ton
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Dimensions:
25mm*3mm-200mm*25mm
Grade:
Q195-Q420 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Best Price Steel IPNUS$ 400 - 600MOQ: 1 Ton -
Prime Quality Q235 Ss400 Astm A36 Q345 Mild Steel Flat BarUS$ 300 - 400MOQ: 1 Ton
-
Top Quanity c Channel Steel PriceUS$ 350 - 500MOQ: 1 Ton
-
Stainless Steel u Channel SizeUS$ 1,500 - 2,600MOQ: 1 Ton
-
Manufactory Professional Service Galvanized Flat BarUS$ 400 - 600MOQ: 1 Ton
Standard
AISI, ASTM, BS, DIN, GB, JIS
Dimensions
25mm*3mm-200mm*25mm
Grade
Q195-Q420 Series
Place of Origin
China
Brand Name
Firststeel
Model Number
2#-20#
Type
Equal
Application
Building construction
Product Description

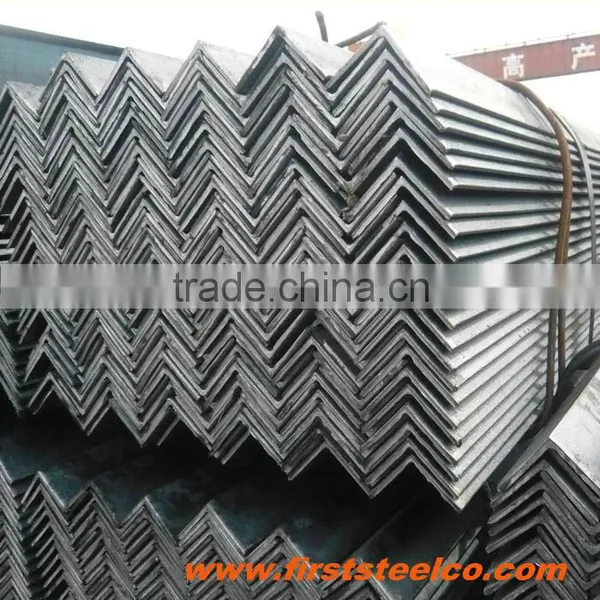

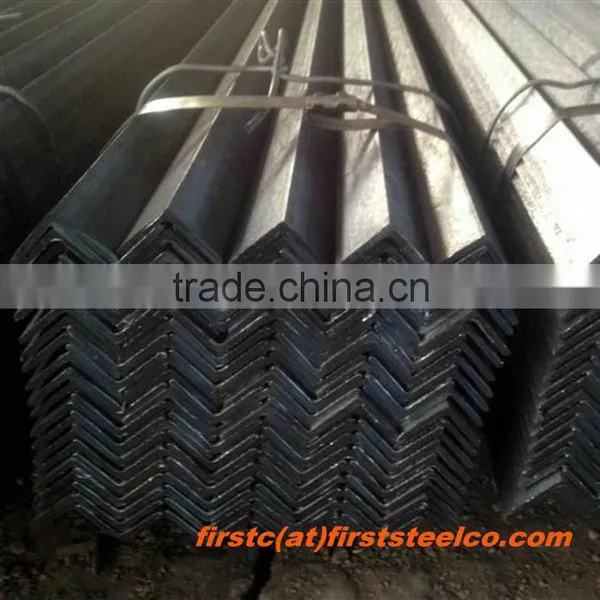

Mild steel angle steel bar
1) 20mm-200mm
2) Prime quality
3) Q235, A36, SS400 or ST37-2, Q345b, ST52 etc.
4) Packing:Suitable for export, about 2MT or more in one bundle
5) Product: Stainless angle steel, carbon angle steel
6) Standards: GB,ASTM,BS,AISI,DIN,JIC,OST
Other steel grade can be provided after negotiating with customers.
7) Features: Equal angle, unequal angle
Chinese standard sizes:
| Equal angle | Unequal angle | |||||||
| Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | Size (mm) | Theoretical weight (kg/m) | |
| 20*20*3 | 0.889 | 90*90*7 | 9.656 | 25*16*3 | 0.912 | 100*63*6 | 7.55 | |
| 25*25*3 | 1.124 | 90*90*8 | 10.946 | 32*20*3 | 1.171 | 100*63*7 | 8.722 | |
| 25*25*4 | 1.459 | 90*90*10 | 13.476 | 40*25*3 | 1.484 | 100*63*8 | 9.878 | |
| 30*30*3 | 1.373 | 100*100*6 | 9.366 | 40*25*4 | 1.936 | 100*63*10 | 12.142 | |
| 30*30*4 | 1.786 | 100*100*7 | 10.83 | 40*28*3 | 1.687 | 100*80*7 | 9.656 | |
| 40*40*3 | 1.852 | 100*100*8 | 12.276 | 40*28*4 | 2.203 | 100*80*8 | 10.946 | |
| 40*40*4 | 2.422 | 100*100*10 | 15.12 | 45*30*4 | 2.251 | 100*80*10 | 13.476 | |
| 40*40*5 | 2.976 | 100*100*12 | 17.898 | 50*32*3 | 1.908 | 110*70*8 | 10.946 | |
| 45*45*4 | 2.736 | 110*110*8 | 13.532 | 50*32*4 | 2.494 | 110*70*10 | 13.476 | |
| 50*50*4 | 3.059 | 110*110*10 | 16.69 | 56*36*3 | 2.153 | 125*80*8 | 12.551 | |
| 50*50*5 | 3.77 | 110*110*12 | 19.782 | 56*36*4 | 2.818 | 125*80*10 | 15.474 | |
| 50*50*6 | 4.465 | 125*125*8 | 15.504 | 56*36*5 | 3.466 | 125*80*12 | 18.33 | |
| 56*56*4 | 3.446 | 125*125*10 | 19.133 | 63*40*4 | 3.185 | 140*90*8 | 14.16 | |
| 56*56*5 | 4.251 | 125*125*12 | 22.696 | 63*40*5 | 3.92 | 140*90*10 | 17.475 | |
| 56*56*6 | 5.06 | 125*125*14 | 26.293 | 63*40*6 | 4.638 | 140*90*12 | 20.724 | |
| 63*63*5 | 4.822 | 140*140*10 | 21.488 | 63*40*7 | 5.339 | 160*100*10 | 19.872 | |
| 63*63*6 | 5.721 | 140*140*12 | 25.522 | 75*50*5 | 5.339 | 160*100*12 | 23.592 | |
| 63*63*8 | 7.469 | 140*140*14 | 29.49 | 75*50*6 | 4.808 | 160*100*14 | 27.247 | |
| 70*70*5 | 5.397 | 160*160*10 | 24.729 | 75*50*7 | 5.699 | 180*110*10 | 22.273 | |
| 70*70*6 | 6.406 | 160*160*12 | 29.391 | 75*50*8 | 7.431 | 180*110*12 | 26.464 | |
| 70*70*7 | 7.398 | 160*160*14 | 33.987 | 80*50*6 | 5.935 | 180*110*14 | 30.589 | |
| 70*70*8 | 8.373 | 160*160*16 | 38.518 | 90*56*6 | 6.717 | 200*125*12 | 29.761 | |
| 75*75*5 | 5.818 | 180*180*14 | 38.383 | 90*56*7 | 7.756 | 200*125*14 | 34.436 | |
| 75*75*6 | 6.905 | 180*180*16 | 43.542 | 90*56*8 | 8.779 | |||
| 75*75*7 | 7.976 | 180*180*18 | 48.634 | |||||
| 75*75*8 | 9.03 | 200*200*14 | 42.894 | |||||
| 80*80*6 | 7.376 | 200*200*16 | 48.68 | |||||
| 80*80*7 | 8.525 | 200*200*18 | 54.401 | |||||
| 80*80*8 | 9.658 | 200*200*20 | 60.056 | |||||
| 90*90*6 | 8.35 | |||||||

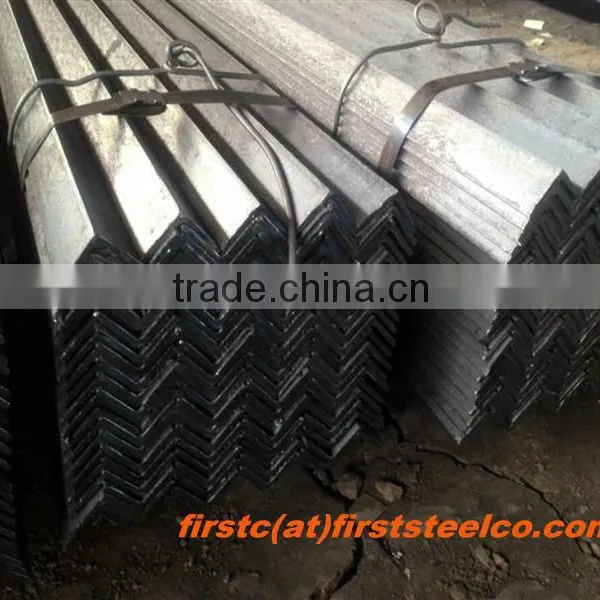

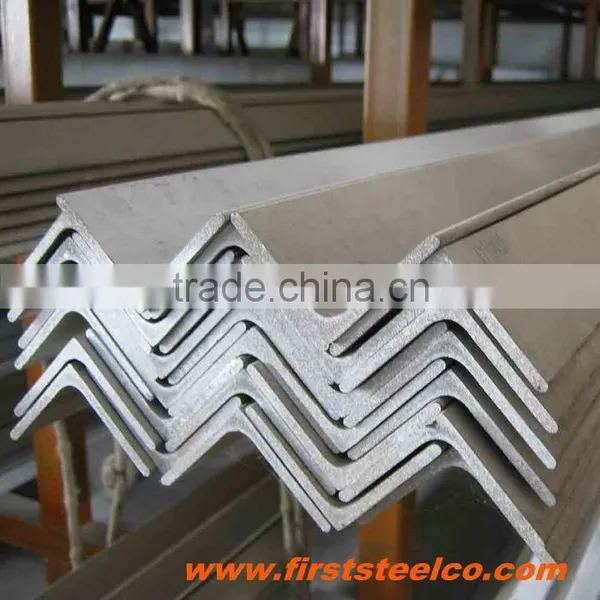

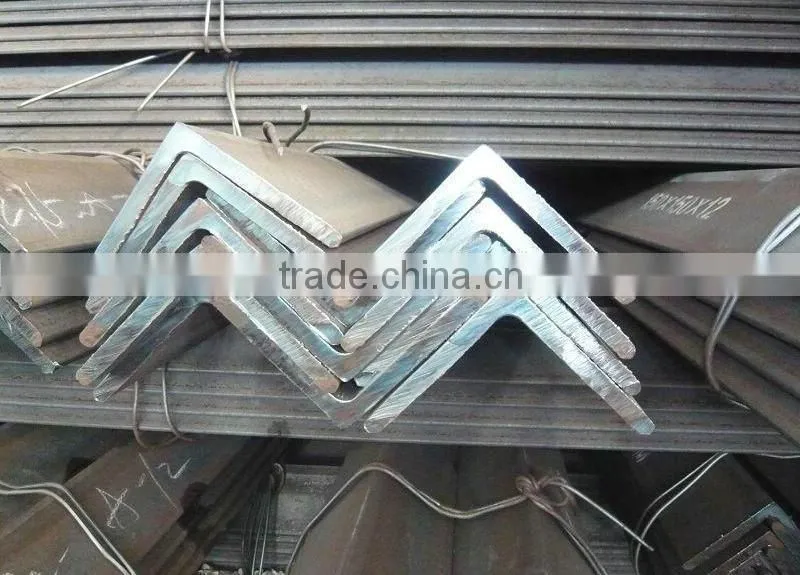

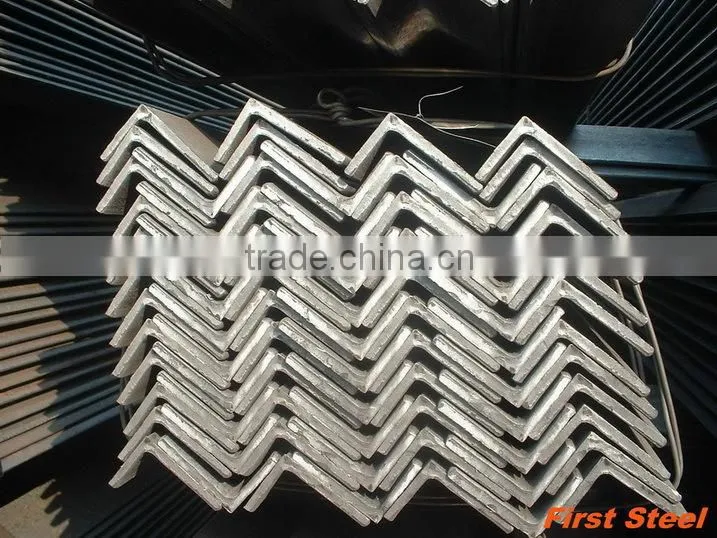

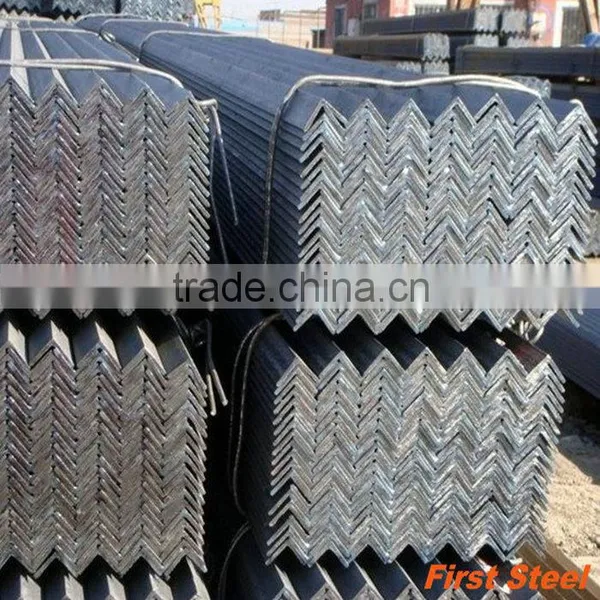

steel angle bar Quality

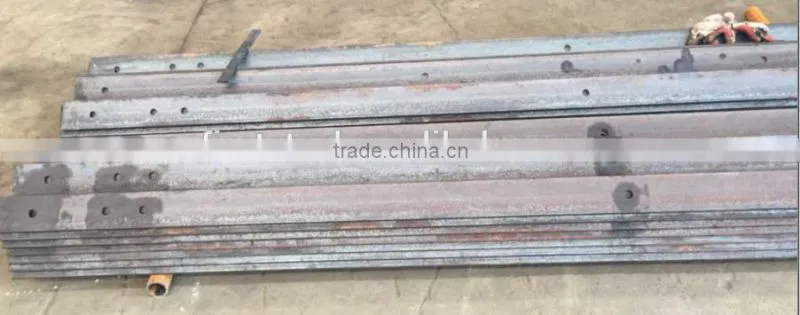

Cuting, making holes as clients drawing:

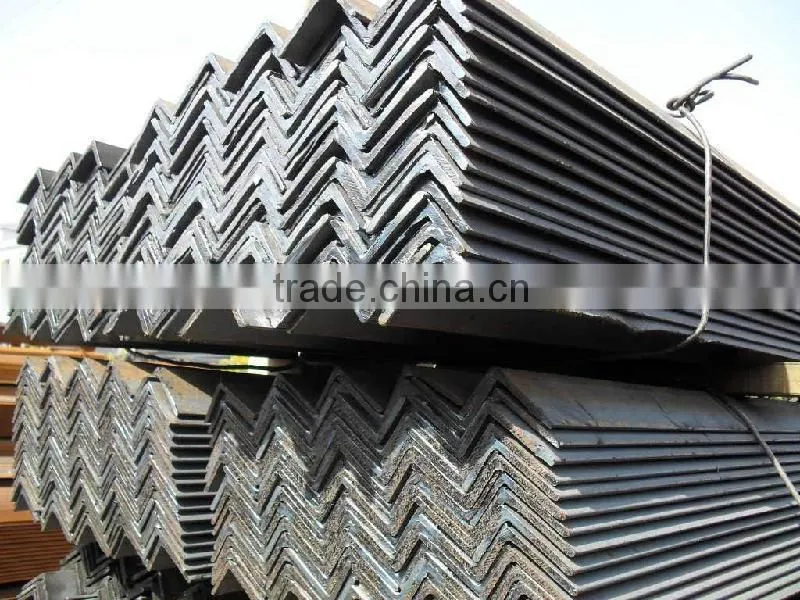

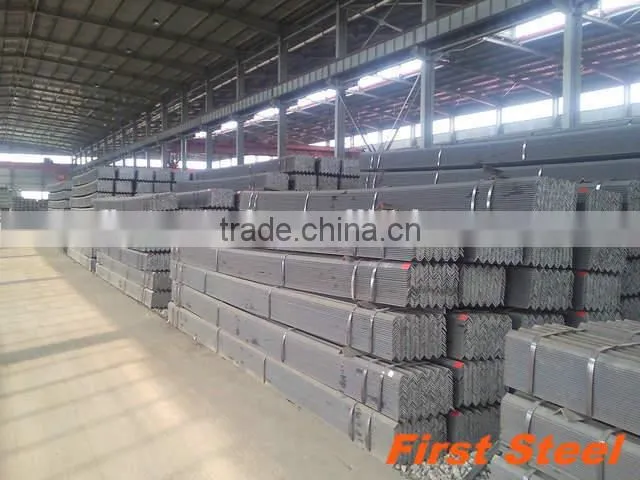

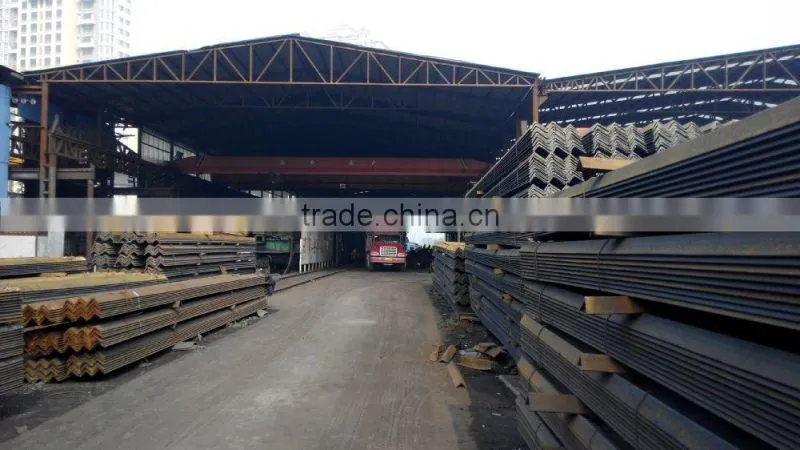

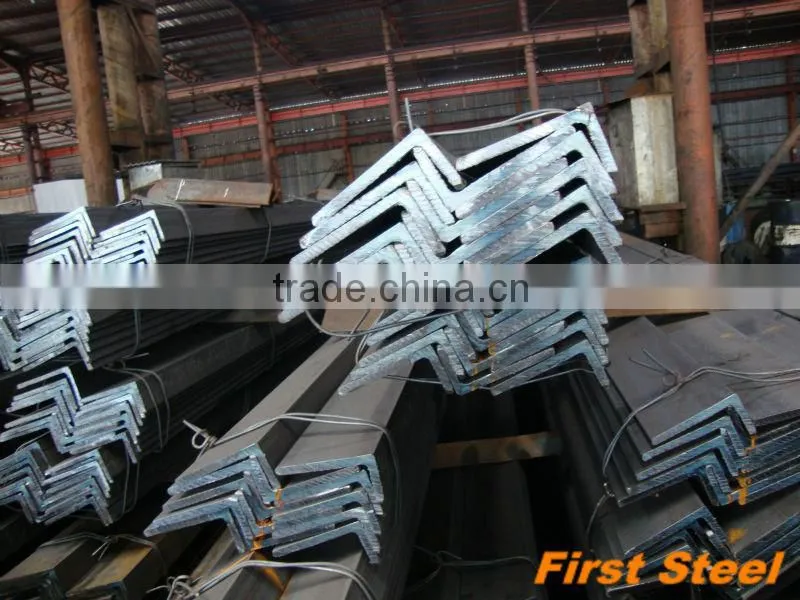

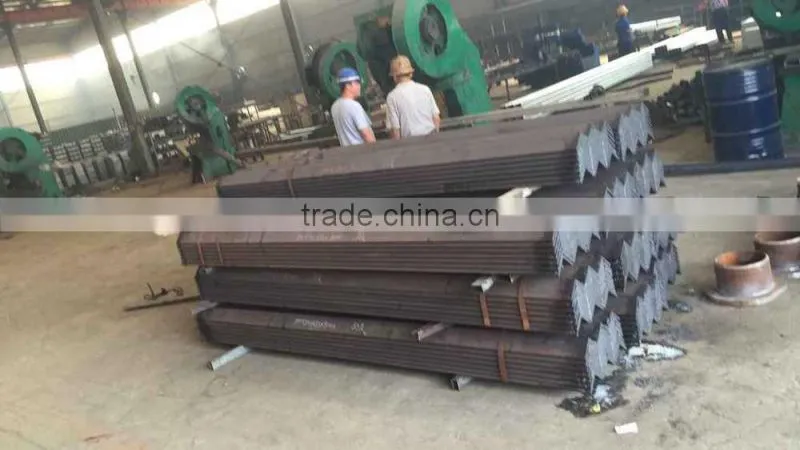

Warehouse has big quantity angle steel in stock

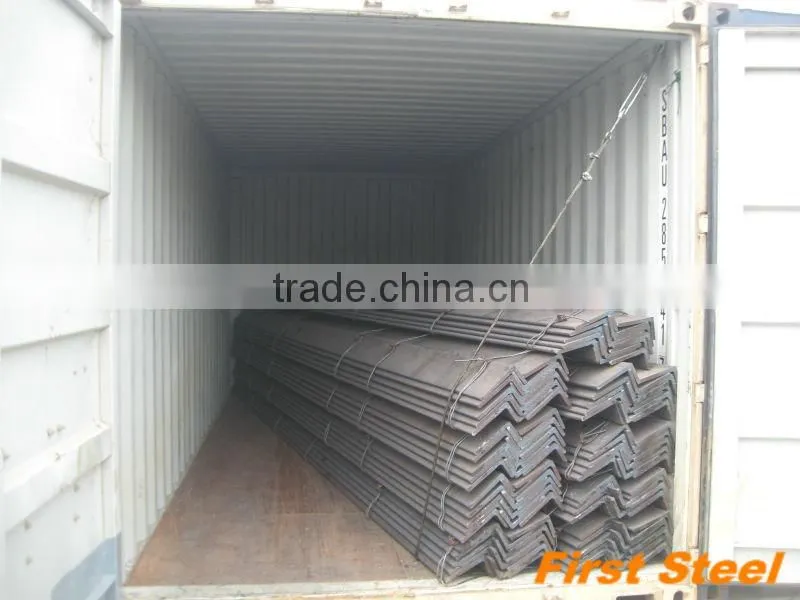

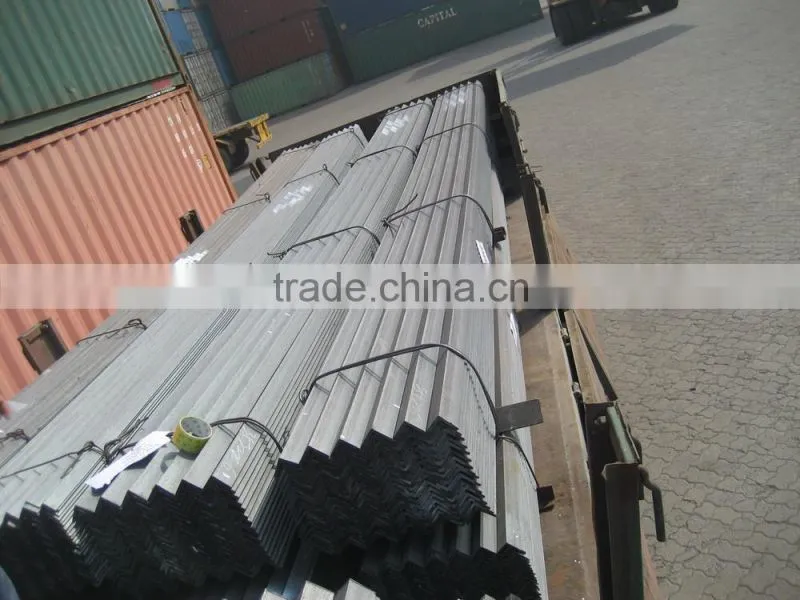

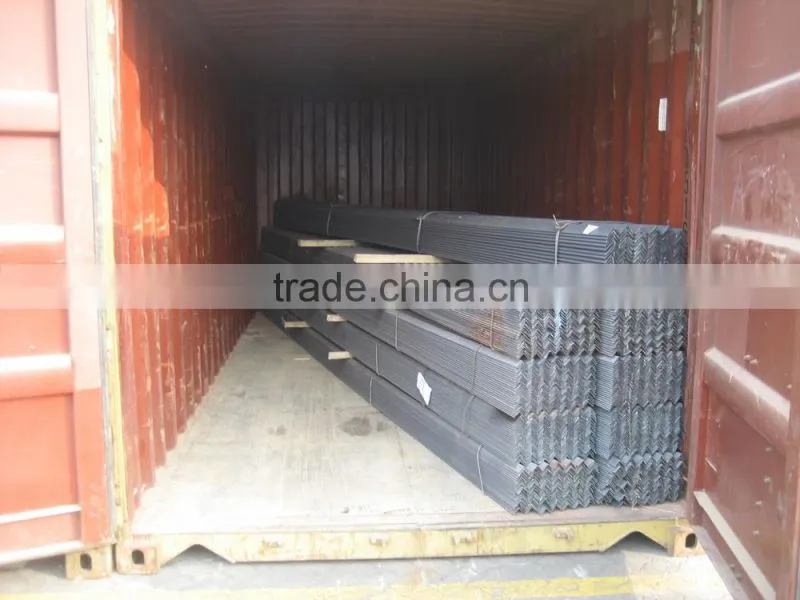

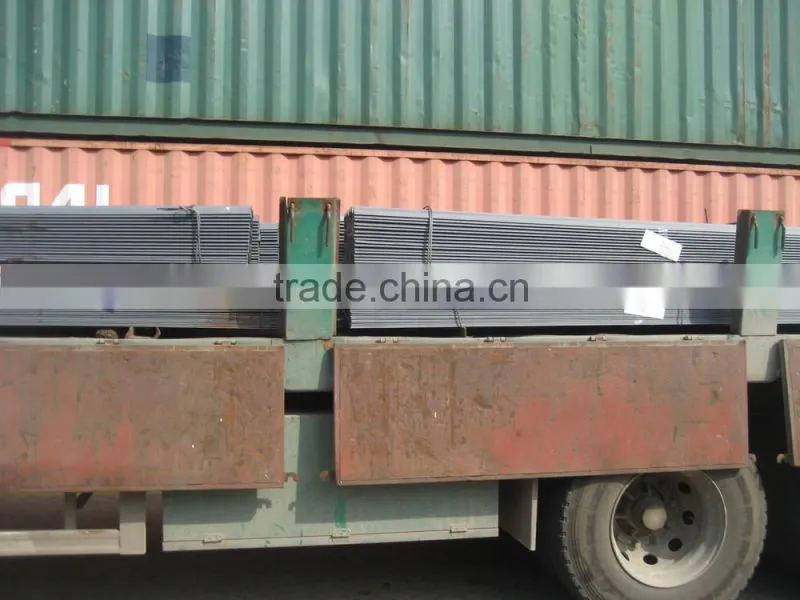

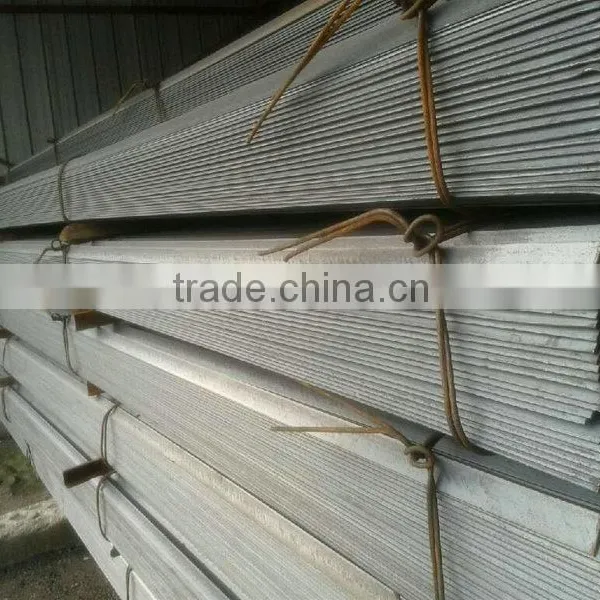

Packaging & Shipping
Professional exporting operation:
Our Services
Our main products: STEEL PLATE / STEEL COIL / SEAMLESS PIPE / WELDED PIPE (ROUND, SQUARE, RECTANGULAR) / ANGLE BAR / ROUND BAR / FLAT BAR / H BEAM / I BEAM / CHANNEL BAR etc.
