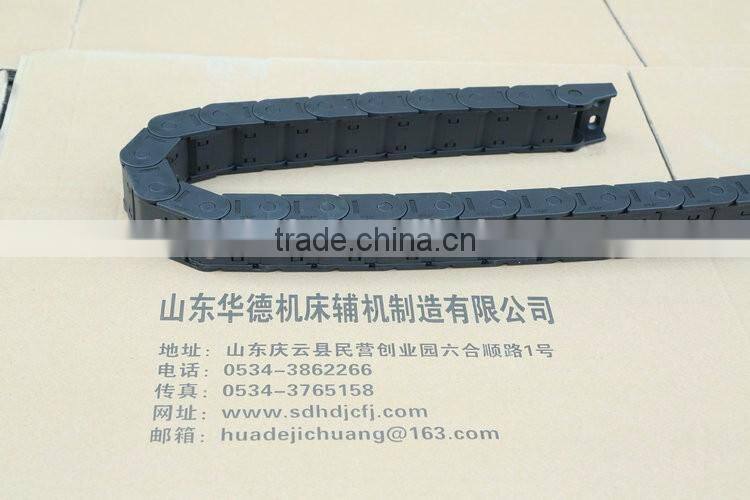

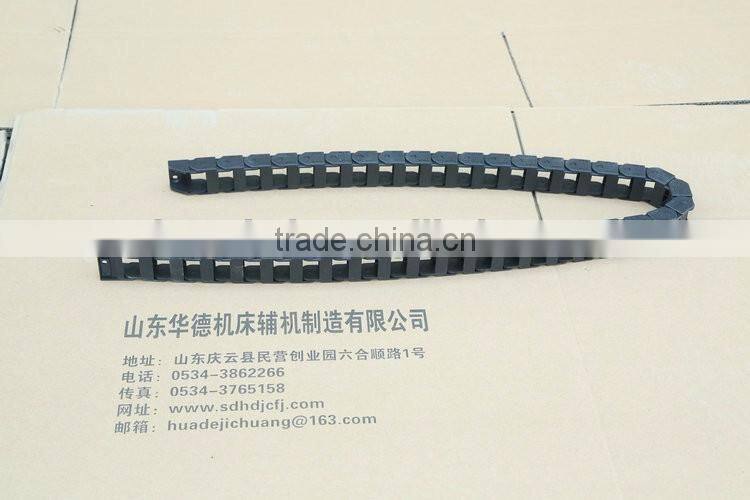

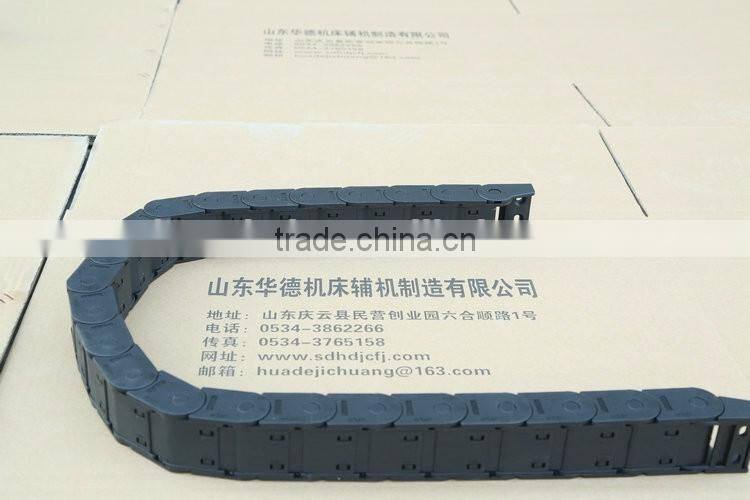

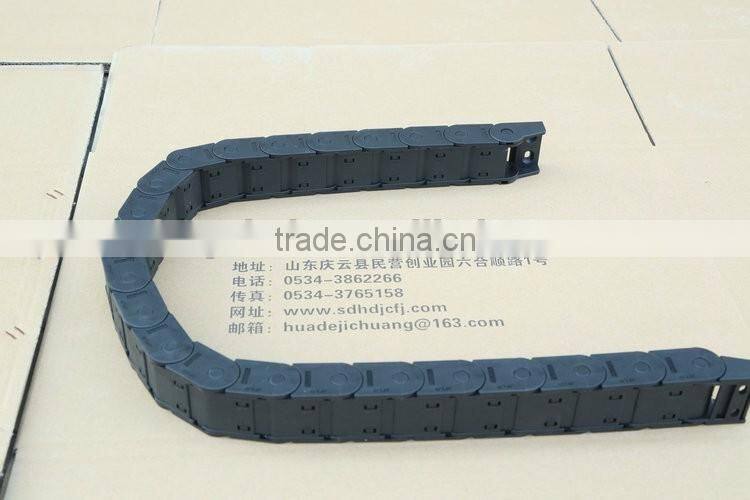

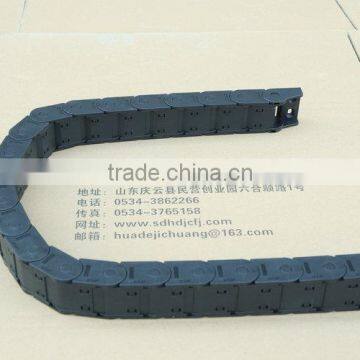

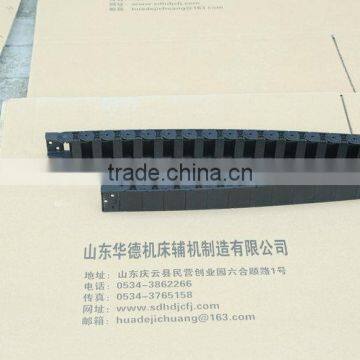

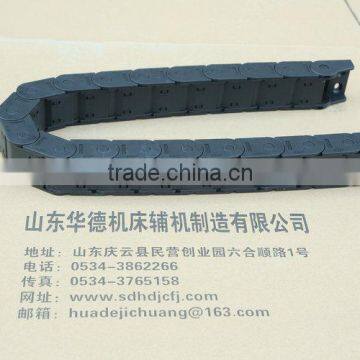

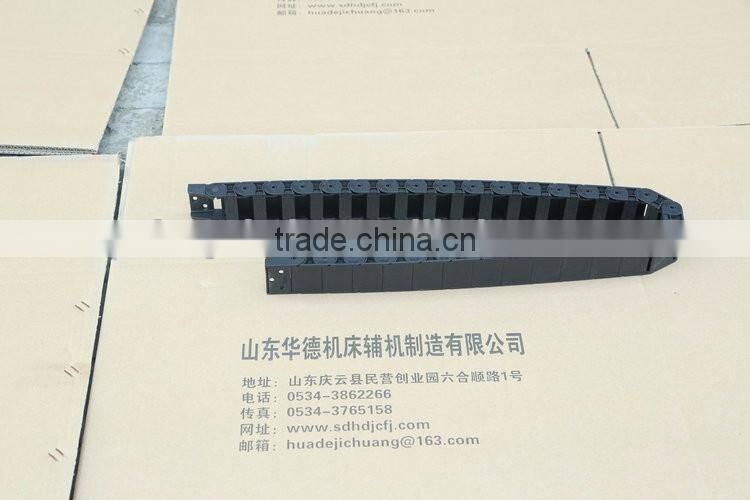

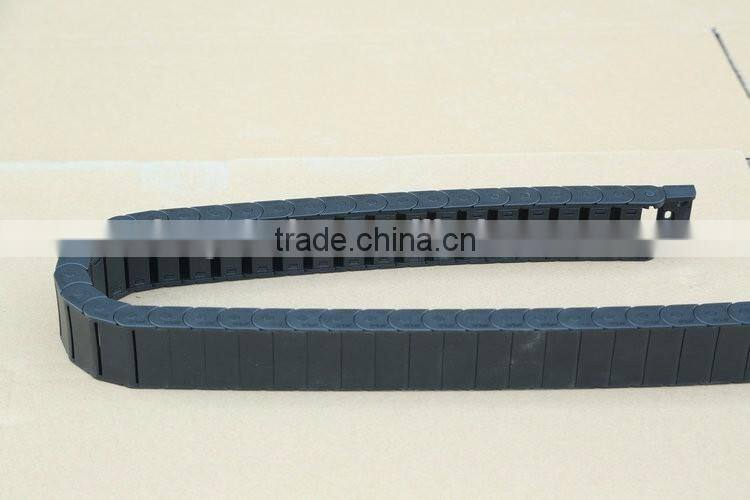

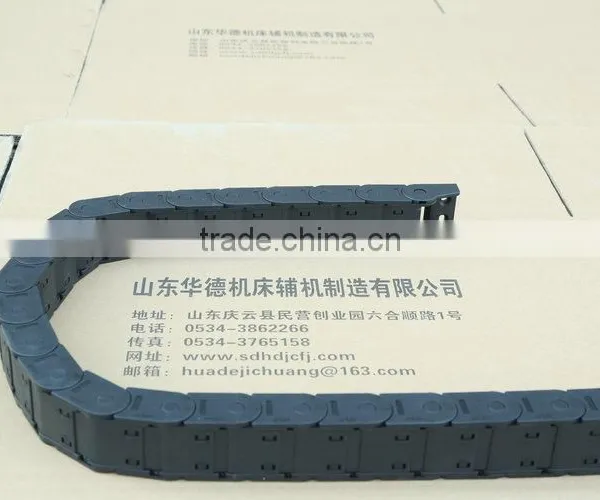

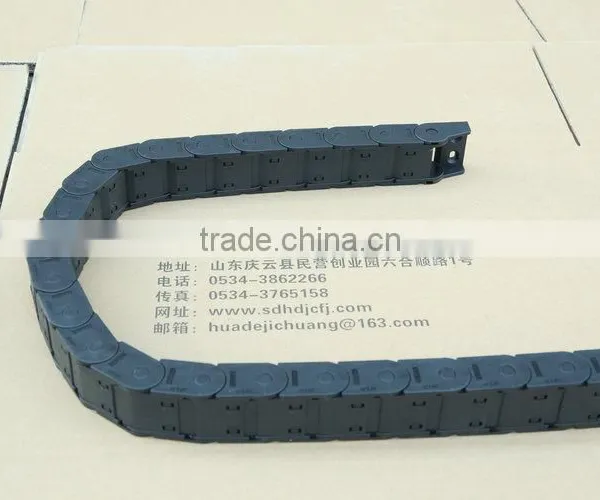

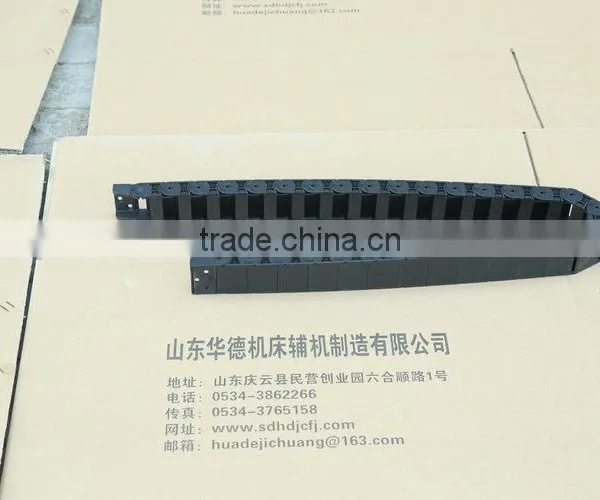

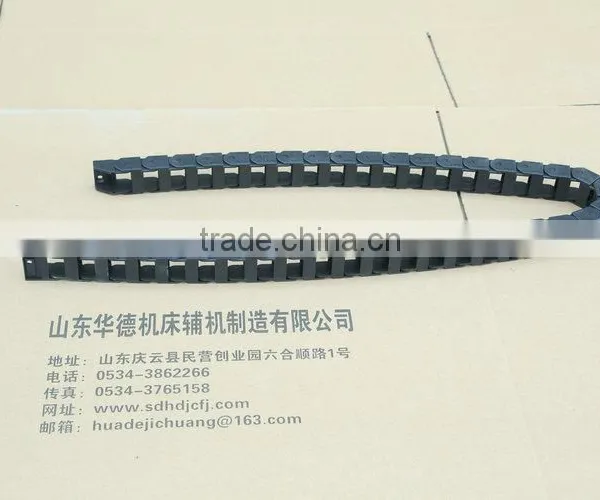

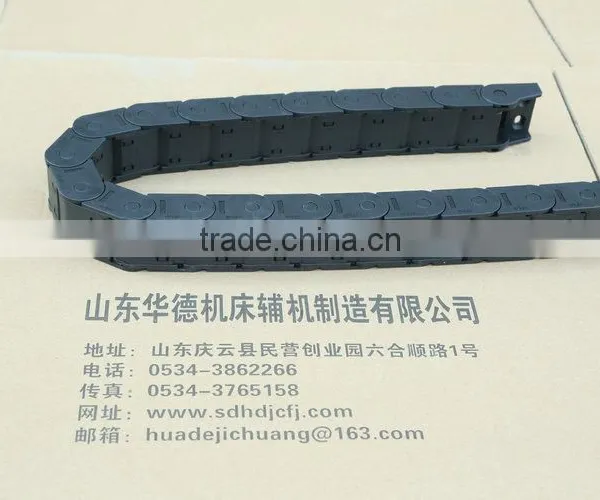

Light And Convenient Nylon Drag Chain For Mechanical
| Drag Chain Description |
Drag chain is suitable for the nc machine tools, machining centers, automated machinery and production lines and other kinds of machine tools, robots, transport machinery, measuring instruments, handling device and other liquid drive control as a wire, cable, gas hose protection device, can take on machine tools, machinery and equipment moving parts run harmoniously, can play a safety protection and the ability to guide, can prolong protected wire, cable, liquid, gas hose service life and reduce consumption, can greatly improve the machine tools, machinery and equipment of wire, cable, liquid, gas hose to confirm the unorderly situation existing in distribution, make it tidy and rules is arranged together, can enhance the overall artistic effect of machine tools.
| Drag Chain Show |
| Drag Chain Feature |
Structure
Drag Chain looks like the tank chain drag chain, consists of a lot of link. Link is composed of the up and down or so four sections, each section can open, convenient installation, open the cover plate after put in the cable, tubing, the trachea, etc.
Material and Performance
Material: Reinforced nylon, good toughness and wear resistance, acid and alkali resistant ability.
Operating Life: Under normal use, up to 5 million reciprocating motion.
Drag Chain Selection
High: Select the built-in cable, tubing, the trachea and conduit maximum height for reference, the height of the drag chain at least 10% of the remaining space.
Wide: Choose the built-in cable, tubing, trachea, the sum of its outer diameter for reference, the width of the drag chain at least 10% of the remaining space.
| Drag Chain Size |
Type |
Inside Diameter (mm) |
Outside Diameter (mm) |
Bending radius (mm) |
Pitch (mm) |
||
height |
width |
height |
width |
|||
TL7.1 |
7 |
7 |
10 |
12.5 |
15.28 |
16.7 |
TL10.1 |
10 |
6 |
13.5 |
13.5 |
18.28.38 |
20 |
TL10.2 |
10 |
15 |
17.5 |
|||
TL10.3 |
15 |
38 |
||||
TL10.4 |
20 |
15.5 |
28 |
|||
TL10.5 |
30 |
16 |
23 |
|||
TL15.1 |
15 |
15 |
20 |
25 |
28.38.48 |
20 |
TL15.2 |
20 |
29 |
||||
TL15.3 |
30 |
40 |
||||
TL15.4 |
40 |
50 |
||||
TL15.5 |
50 |
60 |
||||
TL18.1 |
18
|
18 |
24 |
30 |
28.38.48.75 |
33.5 |
TL18.2 |
25 |
36 |
||||
TL18.3 |
37 |
49 |
||||
TL18.4 |
50 |
61 |
||||
TL25.1 |
25 |
25 |
35 |
38 |
40.55.75.100.125.150.175. 190.200.250 |
46 |
TL25.2 |
38 |
51 |
||||
TL25.3 |
50 |
65 |
||||
TL25.4 |
57 |
71 |
||||
TL25.5 |
77 |
91 |
||||
| Trade |
MOQ: 10 meters
Payment: L/C, D/A, D/P, T/T, Western Union, MoneyGram; 30% deposits; 70% balance before delivery or against copy of BL
Delivery Time: 3-7 days for samples; Within 10 days for batch goods.
Packaging: Carton or wooden cases
Shipping: By Air or by Sea for batch goods, for FCL OR LCL; Airport/ Port receiving;
| Service |
Professional & Passion Sales team 24 hours at your service
Participating in the various exhibitions help you to know us more completely sample could be sent in 1-2 days
OEM of customized products / logo / brand / packing is accepted small qty accepted & quick delivery
Can send you samples for free
| Company Information |
Qingyun Huade Machine Tool Accessories Producing Co., Ltd. is a set of machine tool accessories, development, application and research for the integration of professional enterprise.
Our products are:Machine tool drag chain, machine shield, Chip conveyor, machine tools mat iron, working lamp, Cable drag chain, Plastic drag chain, Nylon drag chain, Steel drag chain, Engineering drag chain, Guideway cover, Screw shield, Chain plate chip removal machine, Shock pad iron, adjustable mounts.
