Landpower Aluminium Ground System is equipped with components which made of aluminum for
mounting on concretefoundations or ground screw. This system highlight quick installation, delivered by preassembled parts, it highly minimized the installation processes. Hight anti-corrosion due to the Aluminium material and stainless steel fasteners. Your best choice for large sacle solar poject!
TECHNICAL INFORMATION
| Install site: | Flat roof |
| Tilt Angle : | 10 deg (fixed) |
| Building Height: | 20 m |
| Max Wind Speed: | <60m/s |
| Snow Load: | <1.4KN/m2 |
| Standard : | AS/NZS 1170 and other international Standard |
| Material : | High Class Aluminum alloy Al6005-T5& Stainless steel 304 |
| Color: | Natural or Customized |
| Anticorrosive: | anodized aluminum & stainless steel |
| Warranty: | Ten years warranty and twenty-year service life |
BENEFITS
1, Minimize Roof Space Limitation

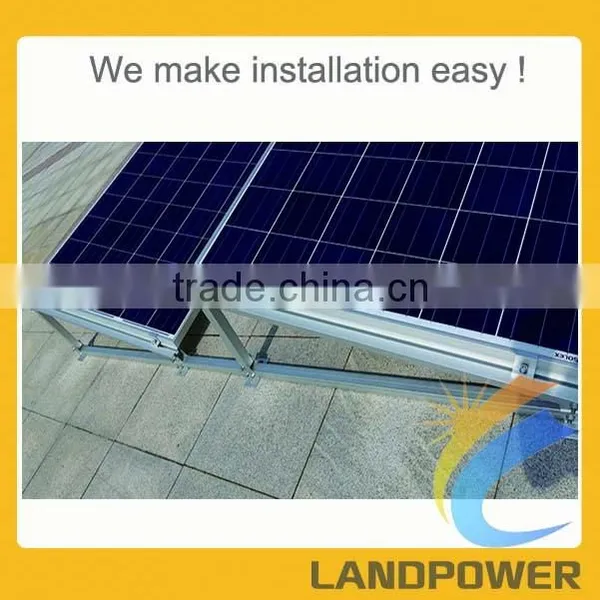

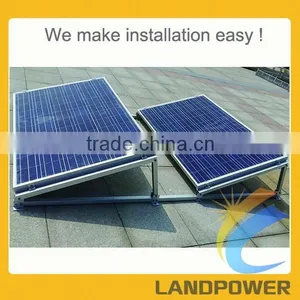

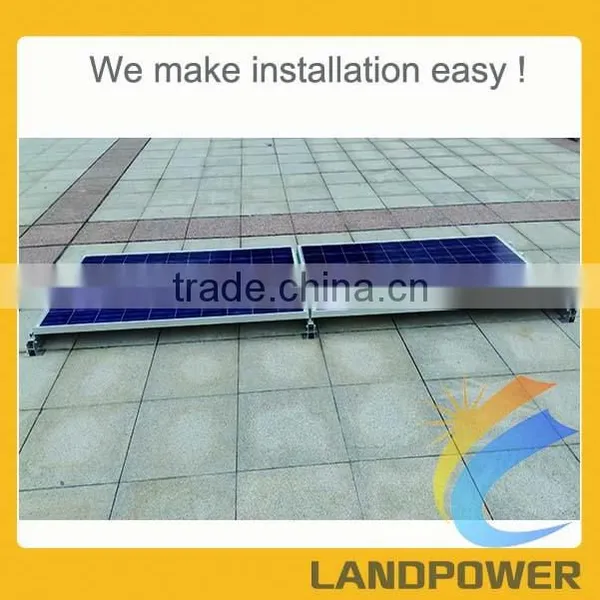

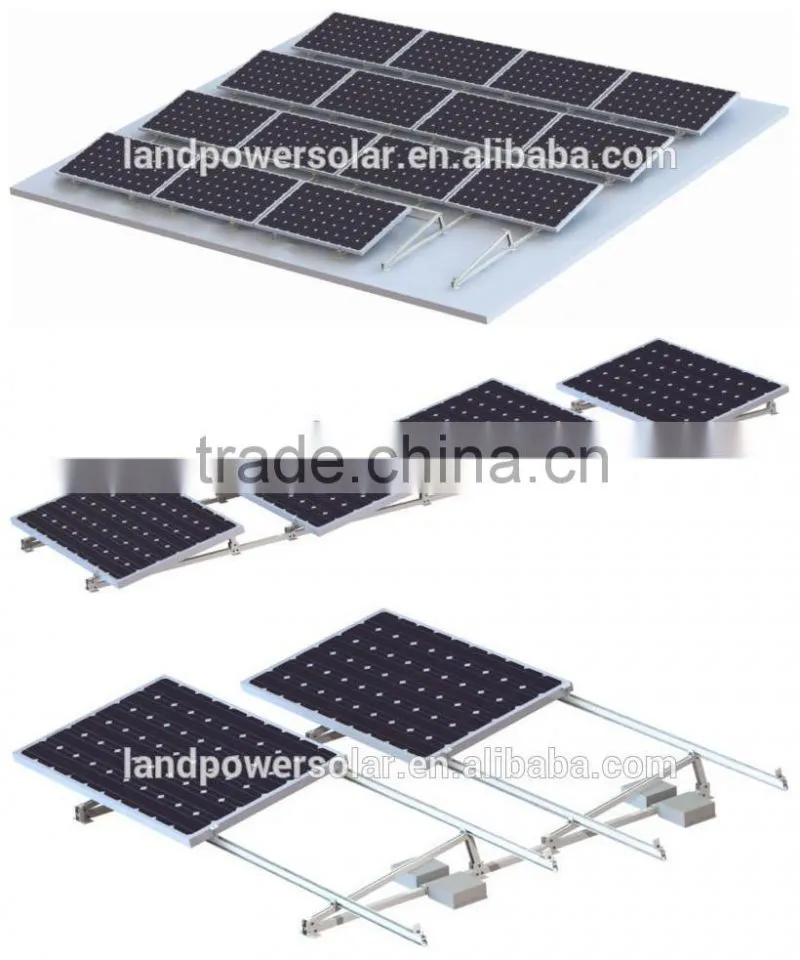

The double-sided design of this ballasted mounting system let the solar module mounted in “shoulder by shoulder” which maximize roof arrays due to no shading spaces, therefore it optimize high power production.
2, Minimize Orientation Limitation
It is specially engineered with double-sided configuration to ensure solar module to expose sunshine as long as possible in any directions. It’s suitable for all orientations installations.
3, Fast Installation

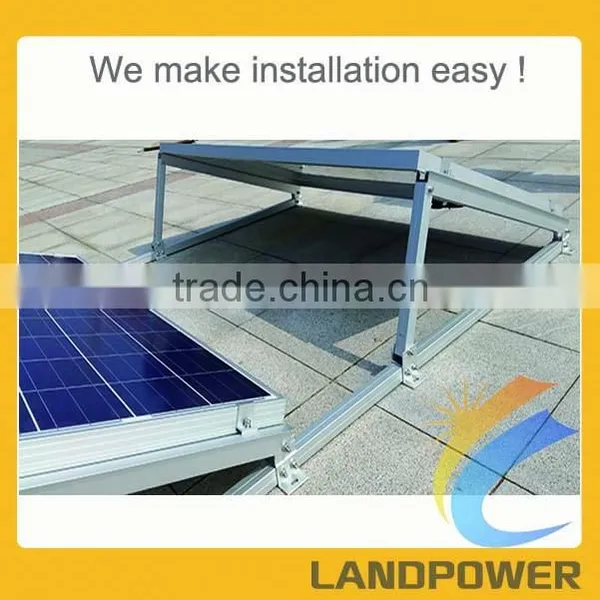

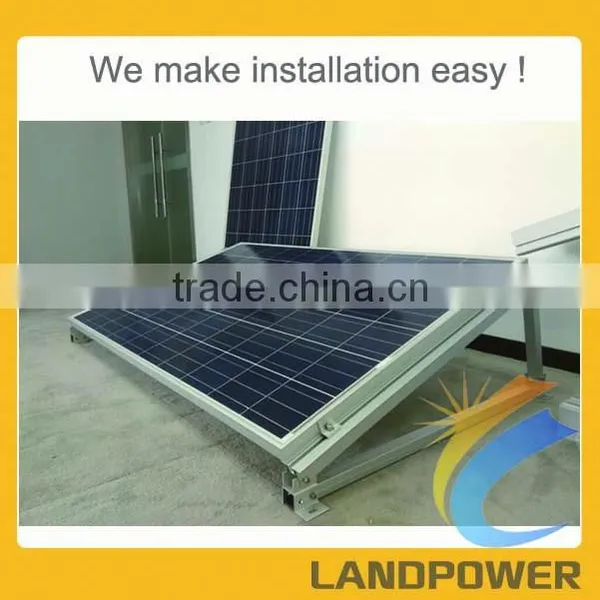

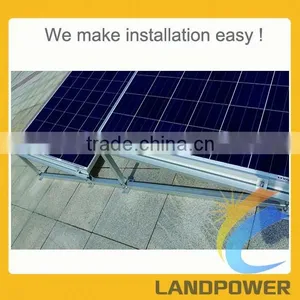

It is highly engineered and simplified ballasted mounting system, which reduced number of components without module carrier rail, just direct clamping with ballasted base and tighten the bolts, everything is been done.
4, Economical
The mounting structure is a cost effective mounting solution. The quantity of components can be required and sold according to project specific calculations. The various components can be kept in stock to shorten time between planning and installation.
5, Long lifespan
All mounting structural components are made of high class stainless steel and anodized aluminum alloy, their high resistance to corrosion and complete recyclability, they are designed for twenty-year service life and backed by ten years warranty.
DETAILS:
Pls note that we have full Aluminium and steel manufacturing base chain,we can design racking systems for you according you request,pls feel free to contact us if you need further details. you can visit us at for more details.
Landpower have many year experience in solar mounting design, we are currently looking for distributors in many regions,if you have local selling networks and interested in work with us to reach mutual benefit,pls call us or email us for distributionship!
