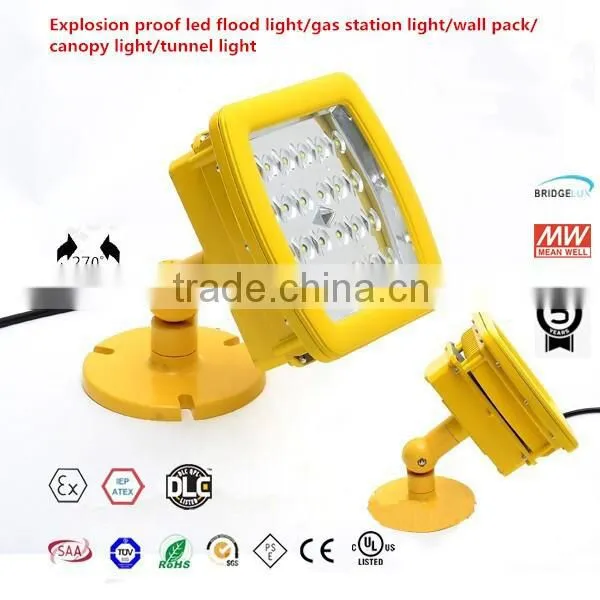

150W Gas Station LED Canopy Light with SAA / DLC / UL / CE / ATEX Certification
Certification |
DLC/UL/CUL/CE/ROHS/ATEX |
Material of shell |
Die Cast Aluminum,Temper Glass,Anti-Dust, Water-proof,PCB Heat Index 2.0, with reflector |
Working Temperature |
-40℃ to 50℃ |
Size |
400*400*185mm |
With reflector or not |
Optional |
Beam Angle |
60°x30°(RF) / 120°x120° |
IP Rating |
IP68 |
LED Brand |
144pcs Bridgelux |
Lumens |
13500 |
Lm/W |
90Lm/W |
CCT |
5700-6500K |
Input V |
AC100-277V |
PF |
~98% |
THD |
<10% |
Power Type |
HLG MW driver with protective Aluminum Housing |
outside carton size |
460x460x240mm |
G.W |
12.5kgs |
N.W |
11.5kgs |
Manufacture picture
CESPE 100W VS 400W HPS in Mexcio

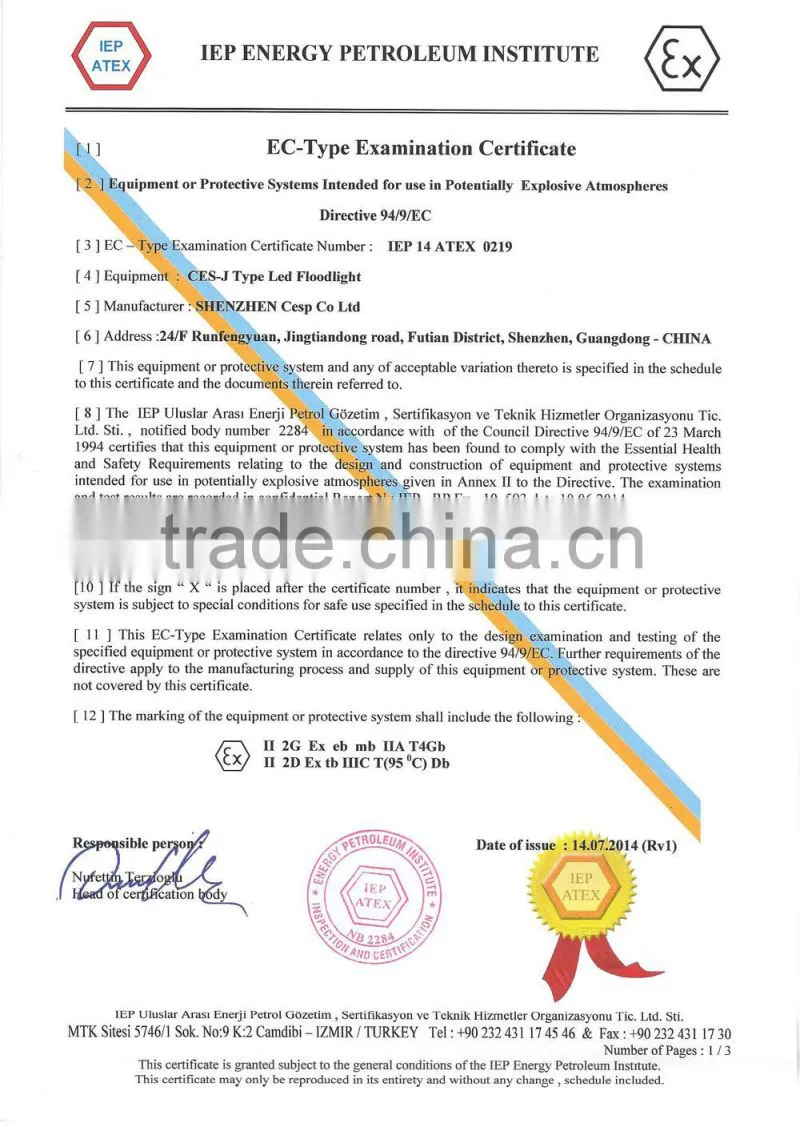

Anti-Explosive Certification

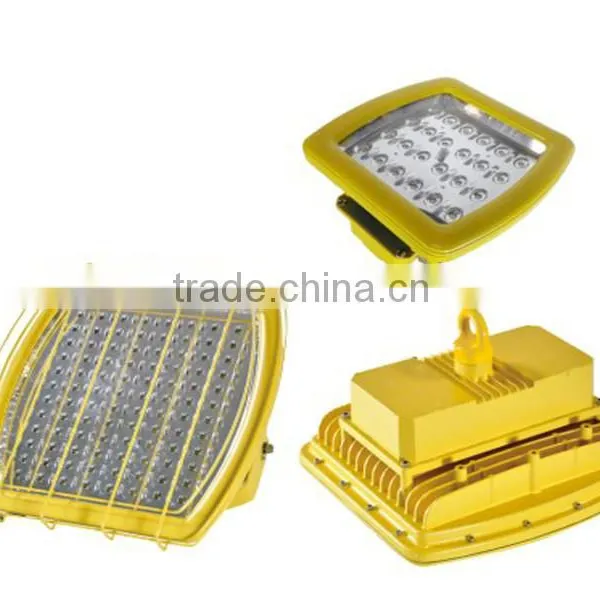

Detail information (30w-185w) 100w as sample

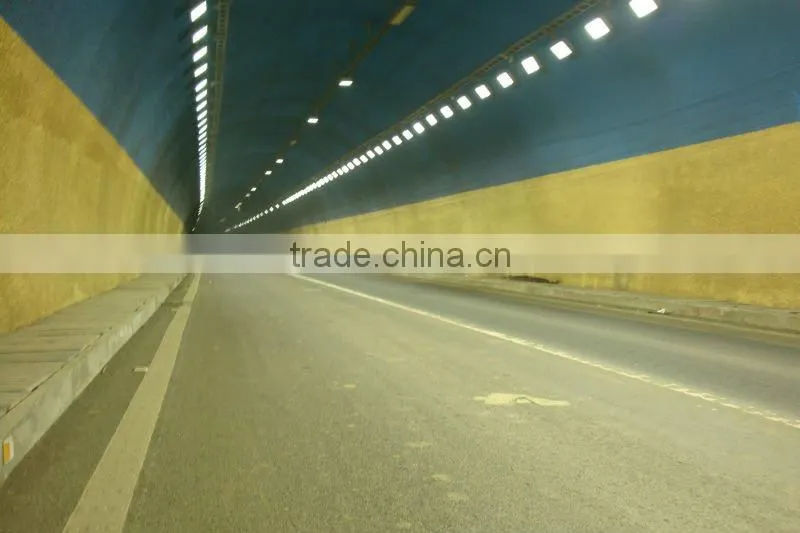

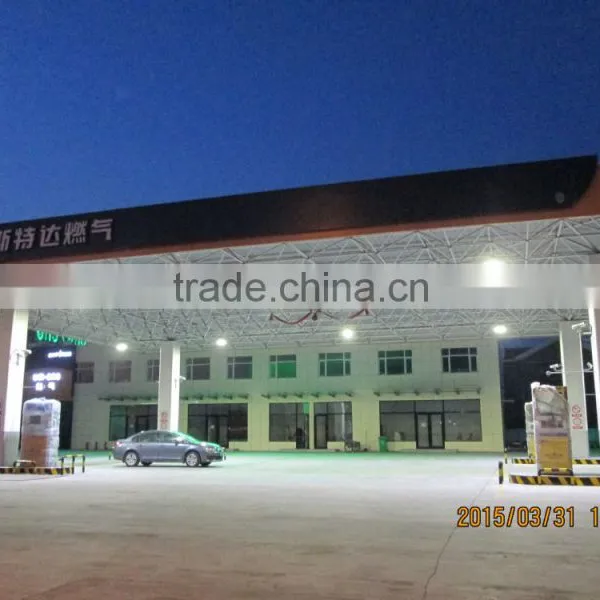

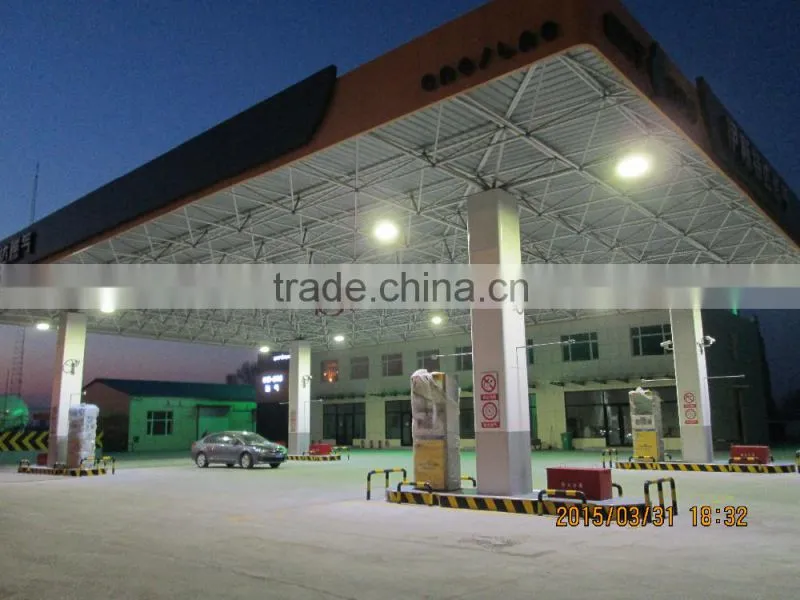

Apply in America
Foreword
CESP LED Lighting Series, is the result after years of technology research and development.
CESP LED Public Lighting Series, include LED Street light Series, LED Tunnel Light Series, LED Gas Station Light Series, High Pole Light series

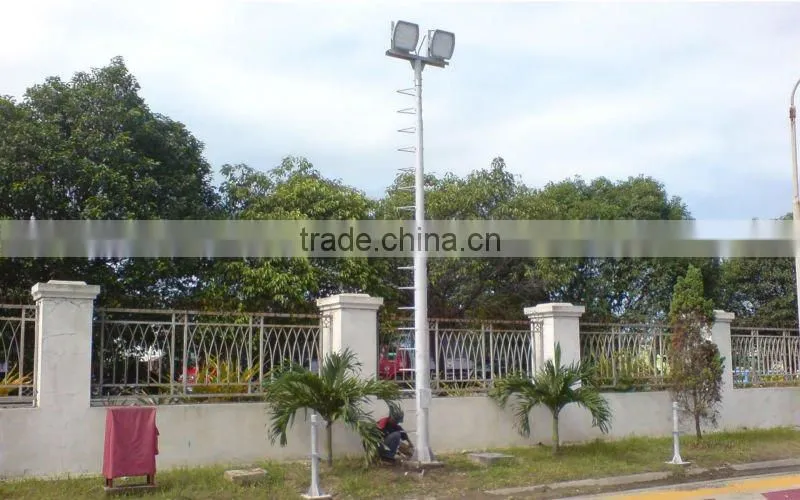

LED Street Light
CESP LED Street Light series is patented technology, result in reliable, practical and long life light fixture.
Product Structure & Outlook –self-developed, and tested in market, subsequently improved based on market feedback. To maximize the best heat transmission for longer LED life.
Radiator is designed to be Curved Fin Shape to ensure easy flow of air.
Surface of the Lamp fixture is sprayed with unique paint material.
This material, not only assists in heat transmission to surrounding air, it also prevent dust and any other particle to accumulate or stay on the surface of the lamp fixture.
Combined with the design of the radiator, this results in self clean fixture.
Practical Design Self Clean
During rain or melting process of snow and ice, will wash away the dust and other particles.
Material
Power Drive Capacitor: Japan imported, Rubycon
- To ensure long lasting power drive.
Glass: 4mm(thickness) Super Strengthening Glass with 95% light transmit rate.
- To ensure minimum initial light loss while maintaining protection.
LED Chip : USA bridgelux chip BXCB45 or Cree XPE. Performing at 140lm-150lm @ 350ma (350ma is slightly over 1 watts).
Aluminum PCB board : Thickness 2.0mm with heat transmission index of 2.0.
Water proof Silicon: Top quality rubber with anti-low aging and burn-proof characteristic.
Ingress Protection Grade : IP68 (highest protection grade for waterproof and dustproof).
This is achieved thru materials used and unique design of the water proof body.
Reflective focuser Integrated to LED chip, therefore, secondary LENS is not needed to adjust angle.
In other word, no further initial light lost due to secondary LENS.
Integrated Reflective focuser’s angle on LED chip are 120°x 60°,(whole lamp angle : refer IES) which is designed to illuminate wide area and suitable for road lighting.
As a result, able to reduce the wattage of light fixture needed to illuminate the same area.
LENS Integrated with LED chip, therefore, secondary LENS is not needed to adjust angle.
In other word, no further initial light lost due to secondary LENS.
Integrated LENS’s angle on LED chip are 140x 60 ° (refer IES for whole lamp angle), which is designed to illuminate wide area and suitable for road lighting.
As a result, able to reduce number of light fixture needed to illuminate the same area.
