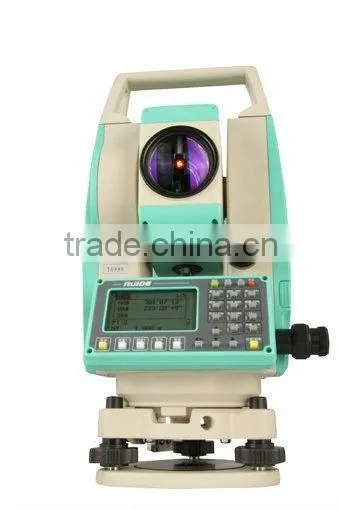

RUIDE RTS822A TOTAL STATION

Name: RUIDE RTS822A TOTAL STATION
Brand: Ruide
SKU: 109553901
Availability: InStock

US$ 1,300 - 1,430 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Ruide

Model Number:

RTS 822A

Shanghai Sursup Precision Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Ruide

Model Number RTS 822A

Specifications

1.RUIDE RTS822A TOTAL STATION
2.High reliability
3.Shipout in 10 working days

RUIDE RTS822A TOTAL STATION

Item specifics

Place of Origin: Guangdong China (Mainland)

Brand Name: RUIDE

Model Number: RTS822A

Accuracy: 2"

Color: Green & white

Battery: 2

Abundant Surveying Programs

1. Remote Distance Measurement

2. Remote Elevation Measurement

3. Stake-Out

4. Reference Line and Arc

5. Multiple-Point Resection

6. Area(Plan) and Circumference Calculation

7. Road Design And Stake-Out

8. COGO Programme

	RTS-822	RTS-822A	RTS-822L
DISTANCE MEASURING
Single Prism	2.0km	2.0km	5.0km
Number display max: 99999999.999, min: 1mm
Accuracy single prism: 2mm+2ppm
Measuring time	Fine:2s, tracking:1s	Fine:1s, tracking:0.5s
meteorologic correction	input the parameter adjusted automaticall
prism constant	input the parameter adjusted automaticall
ANGLE MEASUREMENT
measuring method	raster	absolute encoding
disk diameter	79mm
Min. reading	1” / 5” optional
accuracy	2”
detection method	horizontal: dual vertical: dual
TELESCOPE
image	erect
length	154mm
effective aperture	telescope:45mm, distance meter: 50mm
magnification	30X
field of view	1°30’
Distinguishability	3”
min.focuing distance	1m
AUTO VERTICAL COMPENSATOR
System	single axis liquid-electric Compensation		dual axis liquid sensortronic Compensation
range	±3
accuracy	1”
LEVEL SENSITIVITY
plate vial	30”/2mm
Round vial	8’/2mm
OPTICAL PLUMMET (OPTIONAL - LASER PLUMMET)
image	erect
magnification	3X
Focusing range	0.5m ~ ∞
field of view	5°
DISPLAY
type	dual sides , alphanumeric keyboard
OTHERS
power supply	rechargeable Ni-H battery
Continuous working hours	8 hours
