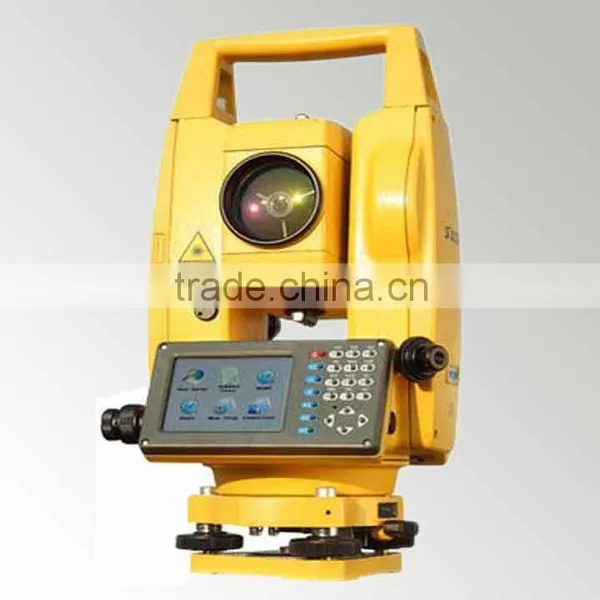

SOUTH NTS-332R TOTAL STATION

Name: SOUTH NTS-332R TOTAL STATION
Brand: South
SKU: 109553787
Availability: InStock

US$ 2,000 - 2,190 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

South

Model Number:

NTS-332R

Shanghai Sursup Precision Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name South

Model Number NTS-332R

Specifications

1.SOUTH NTS-332R TOTAL STATION
2.Reflectorless Range 400m
3.Shipout in 5 working days

SOUTH NTS-332R TOTAL STATION

Quick Details

Place of Origin: China (Mainland)

Brand Name: South

Specifications

South NTS-332R Prism-free Total Station

1.magnification:30X

2.reflectorless distance 400m

3.good stablility

South NTS-332R Prism-free Total Station

Classical total station + reflectorelss technology + SD card Up to 300m for reflectorless measurement

NTS-332R
Distance Measurement
Max. range (good condition)	Single prism 5KM
Max. range (good condition)	No prism400M
Display	Max.:999999.999 Min.:1MM
Accuracy	Prism 2+2PPM no prism 5+3ppm
Measure time	measure: 1s; tracking: 0.5s
atmospheric correction	input parameter and auto correction
reflector constant correction	input parameter and auto correction
Angle Measurement
Measure method	absolute encoding
diameter of disk	79MM
minimum reading	1"/5"
Accuracy	2"
detection method	horizontal: dual vertical: dual
Telescope
image	erect
telescope length	154MM
effective aperture	45mm (distance meter: 50mm)
magnification	30X
resolving power	3”
field of view	1°30’
minimum focus	1.0m
compensator
System	330L/R:dual-axis photoelectricity
System	330/330L/330R: single axis liquid-electric Compensation
compensating range	+/-3'
resolving power	1"
Vial
Plate vial	30"/2MM
Circular vial	8'/2MM
OPTICAL PLUMMET
image	erect
magnification	3x
focusing range	0.5 ~ ∞
field of view	5°
DISPLAY
type	Dual-side
Battery
Power	Ni-H rechargeable
Voltage	DC 6V
operating time	8hours
Size and weight
size	200200350MM
weight	6.0Kg
