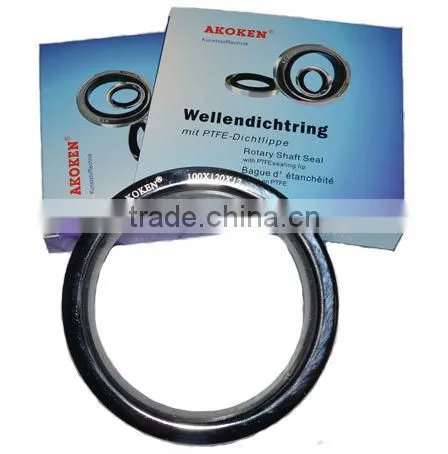

Double Lip Rotary Shaft O Ring Seals Akoken PTFE for Screw Air Compressor Industry Seal
This shaft oil seal comprises of a stainless steel casing and PTFE shaft seal lip. There are many types of the seal lip: single lip,double lips and three lips or with no lip,etc.
Properties of products
1, we use lip material with lowest solid friction coefficient (wet friction coefficient 0.02~0.04 ), and these oil seals with excellent self-lubricate and abrasive resistance, will not rub the shaft.
2, t can be interchanged with rubber oil seals, and sealing property more reliable.
3, main used for internal combustion engines, screw compressors, axles, gearboxes and other dynamic rotating seal
4, excellent self-lubricate and abrasive resistance,is an ideal oil-free lubrication sealing material
5, extensive temperature range,can be long used between -180°C~+250°C
6, capacity in resisting the corrodent ,such as strong acid,alkali, oxidizer.,with the excellent chemical stability.
List for shaft seal for reference
| Model Number | Description | Specification |
| RodcompB101 | Bearing | 4pcs/set |
| Oil sealing | 40*62*8 | |
| Shaft sleeve | 35*40*20 | |
| RodcompB170 | Bearing | 4pcs/set |
| Oil sealing | 50*72*8 | |
| Shaft sleeve | 45*50*25 | |
| RodcompB160 | Bearing | 5pcs/set |
| Oil sealing | 50*72*8 | |
| Shaft sleeve | 45*50*25 | |
| RodcompB201 | Bearing | 4pcs/set |
| Oil sealing | 85*110*12 | |
| Shaft sleeve | 75*85*28 | |
| RodcompB260 | Bearing | 5pcs/set |
| Oil sealing | 85*110*12 | |
| Shaft sleeve | 75*85*28 | |
| HanbellAA240 | Bearing | 8pcs/set |
| Oil sealing | 60*80*8 | |
| Shaft sleeve | 50*60*40 | |
| GHHCF75D4 | Bearing | 6pcs/set |
| Oil sealing | 60*80*8 | |
| Oil sealing | 60*75*8 | |
| Shaft sleeve | 50*60*40 | |
| GHHCF90 | Bearing | 6pcs/set |
| Oil sealing | 65*85*12 | |
| Oil sealing | 60*85*8 | |
| Shaft sleeve | 55*65*45 |
--Charastic of oil seals
1.Main lip
Our main lip is durable and elastic,have many types of oil drive-back thread,the sealing edge contats around the shaft surface tightly in order to provide excellent sealing performance,when oil seals working,it can be placed under various stresses, good performance to generate force to keep the sealing edge consistently in contact with the shaft under such stresses
2.Dust lip
The double lip oil seals have dust lip,which prevents the dust and contaminants from outside environment,our dust lip also can retain grease in the space between main lip and dust lip.
3.OD surface
We have virous types of OD surface,it help seals fitted tightly into the housing and prevents the oil leakage through fitting house,we can make the OD surface rubber or metal,or half rubber half metal,depending on your application.
4.Spring
We have springs with many tension of diffierent performance,and material can be carbon steel or stainless steel.The spring provide the tension between shaft and main lip to ensure tight contact and enhanced sealing performance. the spring also can prevents the deterioration of main lip that caused by corrosion,high temperature or others.
5.Metal case
We produce the metal case by ourself,we have ten punchers.The metal case provides rigidity on oil seal,helping it to fix on the housing securely.
| Ptfe lip shaft oil seal | |
| Material: | NBR,Ptfe |
| Color: | Black,other color option as your request |
| Certification: | All manufacturing processes are complied with ISO9001:2000 |
| Hardness: | Shore A 75 |
| Application: | Pump oil seal,Chemical processing equipment, pumps, mixers, agitators, blenders, pharmaceutical & foods. |
| Performance: | Corrosion resistant,temperature resistant 380C,Fluid resistant,temperature resistant 100C,excellent performacne |
| Dimension: | Can produce out-diameter up to 500mm |
| Category: | oil seal |

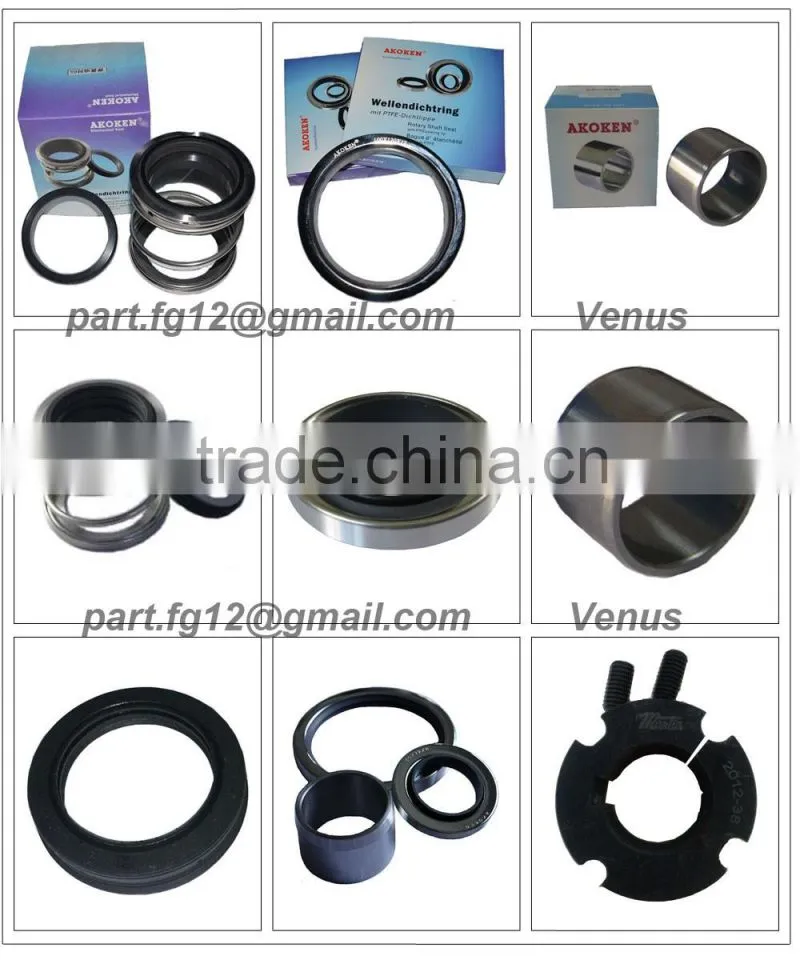

Shaft seal for reference
Business scope
| Main type | Screw air compressor | Oil-free Compressor |
| Piston air compressor | Protable air compressor | |
| Main brand: | Atlas Copco | |
| Sullair | Hitachi | |
| Fusheng | Kaeser | |
| Boge | compare | |
| Main products: | Air intake Valve | Thermostat Valve |
| Solenoid Valve | Blow off Valve | |
| Drain Valve | Minimum Pressure Valve | |
| Temperature Sensor | Pressure Sensor | |
| Unloading Valve Kits | Stop Oil Valve Kits | |
| Check Valve kits | Oil-free Service Kits | |
| Controller | Gear Wheel | |
| Coupling | Hose & Elbow | |
| Air Filter | Oil Filter | |
| Oil Separator | Oil Level Indicator | |
| Air-end | Used Air Compressor | |
Q1: How can I get the quotation?
A: you can advise us the part number for checking, and we will quote to you soon by email
Q2: What kind of ways for transportation ?
A:In general by air, sea or Express.(like DHL,Fedex,TNT,etc.)
Q3: How do I know the quality of productions?
A:We have a strict series of quality control, and we have perfect after service system, which can help you to solve the problem soon
Q4: If i want to change model,size,package,etc. How can I do?
A:You can contact us by skype or mail, and we will revise according to your requirement
Q5: What is the terms of payment ?
A: T/T, Western Union, paypal(need 5% paypal fee)
