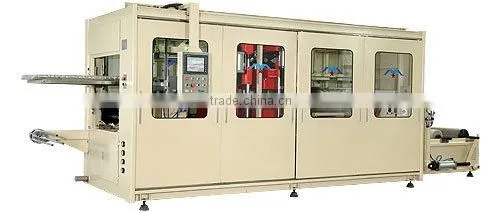

Help CenterQZC43-66/52-CWF Automatic Vacuum Thermoforming Machine
Related Products
-
Automatic Egg Tray Making MachineUS$ 30,000 - 50,000MOQ: 1 Set -
Automatic Cooling Tower Fill Forming MachineUS$ 50,000 - 100,000MOQ: 1 Set
-
Vacuum Forming Mould for Plastic ProductNegotiableMOQ: 1 Set
-
Plastic Food Container Making MachineNegotiableMOQ: 1 Set
-
PET Plastic Egg TrayNegotiableMOQ: 200000 Pieces
Specifications
1,Full Automatic and Computerized2,Full PLC Touch Screen operation
3,Mutli-working Station In One Line
Usage:
The machine is designed for producing various of open-wide plastic containers , such as food trays , plastic trays , cosmetic trays , blister , clamshells , plates and other plastic related items .
Suitable Sheets:
PVC,PP,PS,HIPS,PET,APET,PETG , Etc
Structure Features:
01.The machine combine with mechanical, pneumatic and electrical.All action be controlled by PLC.Touch screen easy operation.
02.Three working sation:Forming,Cutting and Stacking.
03.Positive and negative pressure with auxiliary stretch forming.
04.Up and down mould forming method.
05.Servo Motor Feeding,Feeding length stepless adjustment.Feeding accurate,stable and high speed.
06.Upper Heater,Four Section Heating.
07.Full computer intelligent temperature control system,automatic compensation control,individual heater control with human-machine interface digital input.Its advantage such as high fine-turning precision,temperature evenness,fast heating(Only 3 minutes from 0-400 degree),stable(the temperature won’t be affected by external voltage,and the temperature fluctuation won’t be exceed over 1 degree),lower energy consumption,long service life,etc…
08.Servo moto stacking and finished product accounting.
09.With all the date of production information and technical parameter memery storage functions.
10.Offcuts automatic rewindering.
11.The Chain of the feeding width can be adjusted synchronous and separate.
12.Heater automatic push-out function,emergency stop protection.
13.Mechanical feeding scroll device,to reduce the labour intensity
Technical Parameter
Model NO. |
ZQC43-66/52-CWP |
|
Adjustable Sheet Width (mm) |
430-660 |
|
Sheet Thickness (mm) |
0.2-1.5 |
|
Max Roller Sheet Dimension (mm) |
600 |
|
Mold ( Die) Stroke (mm) |
150 |
|
Mold ( Die ) Base Stroke (mm) |
93 |
|
Max Forming Area (mm2) |
520×630 |
|
Max Forming Height/Depth (mm) |
80/50 |
|
Max Cutting Force(kgf) |
3000 |
|
Capacity (shot/ min) |
8-18 |
|
Cooling Pattern |
Water-cooling |
|
Gas source (outer) |
Air (m3/ min) |
≥5 |
Pressure (MPa) |
0.8 |
|
Vacuum Pump(Outer) |
Busch R5 0100 |
|
Power |
3 Phase 4 Line 380V50Hz |
|
Heater (kw) |
44 |
|
General Power (kw) |
50 |
|
Dimension (L×W×H) (mm) |
7380×2100×2380 |
|
Machine Weight (kg) |
7500 |
|
