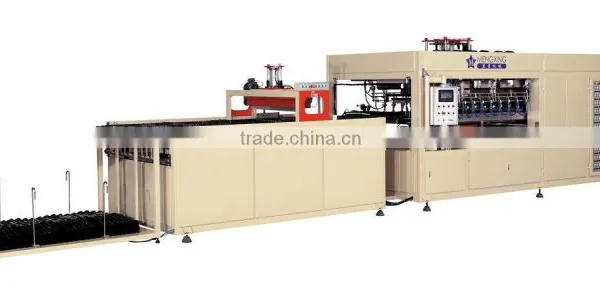

Automatic Cooling Tower Fill Forming Machine. For making cooling tower fills from PVC,PS.
sage:
This vacuum forming machine is widely used for making vacuum formed products like cooling tower fills from PVC, PS, material.
Operation Principle:
Operation processes: The heated and soften plastic sheet are being vacuum formed in the mold in order to get the various finished products. The operation processes are: sheet-feeding—heated—forming—side trimming— crosscut.
Structure feature:
01. The machine is combined with pneumatic , mechanical and electricity driving, adpot PLC control . It can achieve sheet feeding , heating , forming , side trimming , crosscut into continuous job .
All working action can adjust uder non-stop production . It’s convenient and high capacity , easy for operation .
02. The working method can crosscut by different pattern of fill .
03. Servo Motor feeding , Feeding Length stepless adjustabe , precision and reliable.
04. Cutting Unit with Servo Motor Driving , Electrical & Pneumatic adjustable by different length crosscut ( the length must be longer than each forming mold length ) .
05. Forming area is big and easy for mold installation & replace.
06. Cylinder Roll Sheet Loading , Feeding Chain manual adjust.
07. Upper , Lower mold stroke limited , Up mold descend motor adjust.
08. Forming area double adjustable , can save the sheet material .
09. Back acting plate adopt double cylinder method , motor setting position .
10. Two step of Vacuum .
11. Fan Blowing , Air Spray Cooling Device .
12. Heater adopt individual heating temperature control . ( Point to Point )
13. Advance sheet feeding , heating parameter can automatic adjust.
Technical Parameters:
| Sheet size | width 1000-1300mm, thickness 0.12-1.25mm |
| Max. sheet sending length | 1250mm |
| Max. forming area | 970×1870mm |
| Capacity | 4-10cycles/min |
| Power usage | 415V(3 phases 4 lines), max. 112.93Kw total |
| Air consumption | ≥2 m³/min. (prepare by client). |
| Operation air pressure | 0.7Mpa(air source 0.8-1mpa). |
