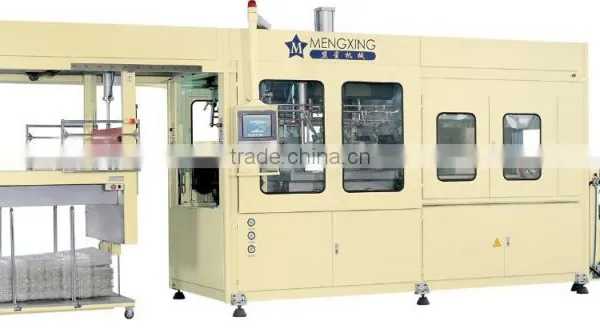

Automatic High Speed Vacuum Forming Machine
- 0 per Month
- SHANTOU
Product Details
Condition: | New | Automatic Grade: | Automatic | Usage: | Plastic Forming Machine |
Place of Origin: | Guangdong, China | Brand Name: | MENGXING | Model Number: | XC46-71/122-CWP |
Voltage: | 380V 50 HZ | Power(W): | 62kw | Dimension(L*W*H): | 8070* 1750*2525mm |
Weight: | 4900KG | Certification: | ISO9001:2008 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Usage

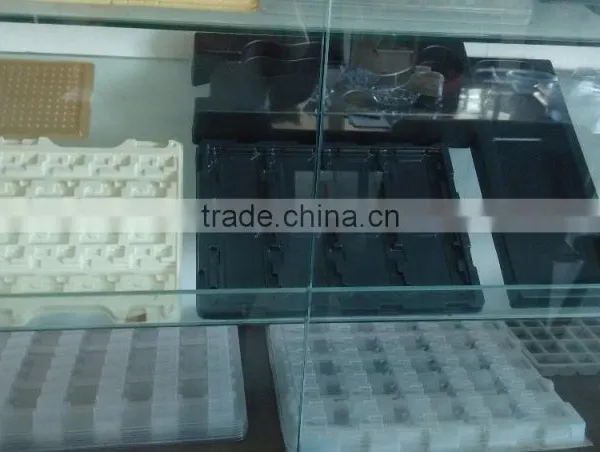

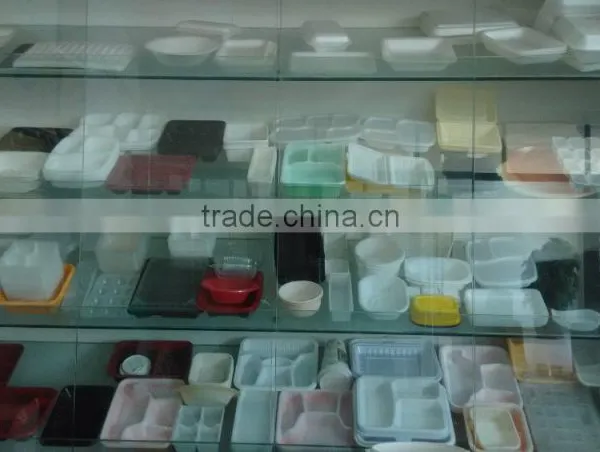

The machine is suitable for making all size packaging containers, in open-type with thin-wall, by using roll-sheet, under high-speed vacuum suction-forming processing. The products out of this machine can be used for the package of foods, native-products, tourist-goods,textile, medical, toy,cosmetic, electrical elements and daily used hard-ware,etc.
Sheets fit to the machine
Starch-deposit sheets, light-deposit sheet, environment sheet APET, PETG. Color sheets:PVC, PET, PS,PP, EPS, etc. Fiber-coating-sheet.
Structure Features
1.The machine combine with mechanical, pneumatic and electrical integration fully computer control. Touch screen easy operation.
2. Production accounting , can set automatic stop or advance alarm function;Data memorization function can store 230 data and para.
3. Inverter feeding driving, length stepless adjust, feeding accurate, stable and high speed.(Max feeding speed 1000mm/per second)
4. Temperature computer control system, it could maintain the temperature even, stable and has the advantage of low energy consumption and long life service. Imitation temperature layout function, which could mini-adjust the position of production in heaters. Auto detect heaters and solid state relay function.
5. Heater has deflection cover structure, which could close whole row of the porcelain heaters when the width of sheet is ≤580mm. It can reduce power consumption 16%.
6. Advance feeding with the heater time automatic memory function, machine could start production from the first sheet feeding.
7.Two-step vacuum, two time of up-moulding, mould shaking function, mould delay 16%.
8.Up/down mould electric stroke adjust, easy to adjust under the mould matched situation. It could improve the accurate of moulding and quality of finished production.
9.Back acting plate position motor adjust.
10.Up/down mould match into cushion, avoid crusion and improve the match speed.
11. Up/down guiding leader with self-lubrication bearing couple.stable production and durable structure, it could assure the high quality or finished products.
12.The width of feeding chain synchronizate and separate motor adjust.
13.Heaters with moving-out structure,could automatic move out under the malfunction situation, it could save the sheet material.
14.Cylinder sheet loading structure, easy for worker operation.
15.Cutting unit with double clamping cutting function, could produce male/female and various different of products slide cutting.
16.Cutting structure adopts special convert structure, can optimize the working space.The separate stacking car easy finished products stacked.
